Mild Steel copper wire flattening machine Cutting For Flat Wire Frame

Mild Steel copper wire flattening machine Cutting For Flat Wire Frame

wire flattening

copper wire flattening machine

wire flattening machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-YB-12

Contact Us
Request A Quote
Product Details
Product Name:
Wire Flattening And Cutting Machine
Application:
Wire Flattening And Cutting
Size:
6000x1200x1600mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
3000 KG
Motor Type:
Stepping Motor
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

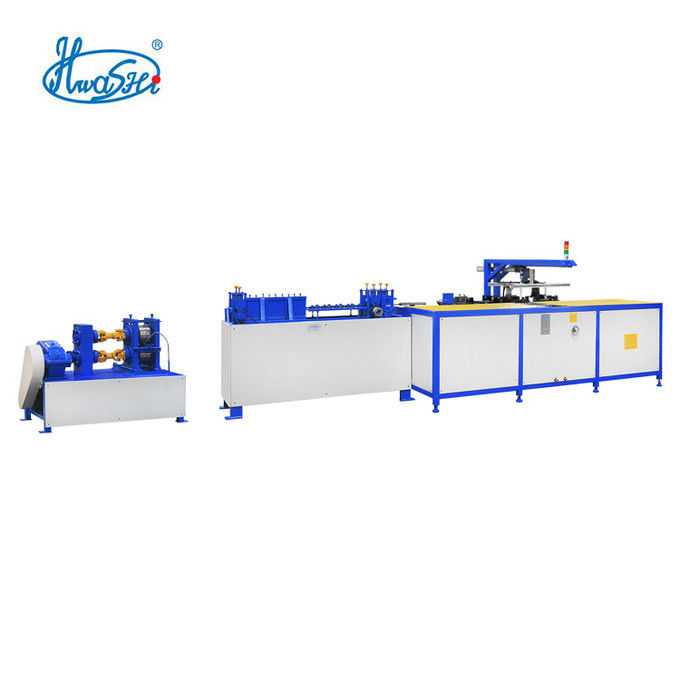

Mild Steel Wire Flattening, Straightening and Cutting Machine for Flat Wire Frame

Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 0

Description Of The Wire Flattening And Cutting Machine

The wire flattening and cutting machine for flat wire frame is special for forming the low carbon steel round wire into flat wire.



                                          Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 1

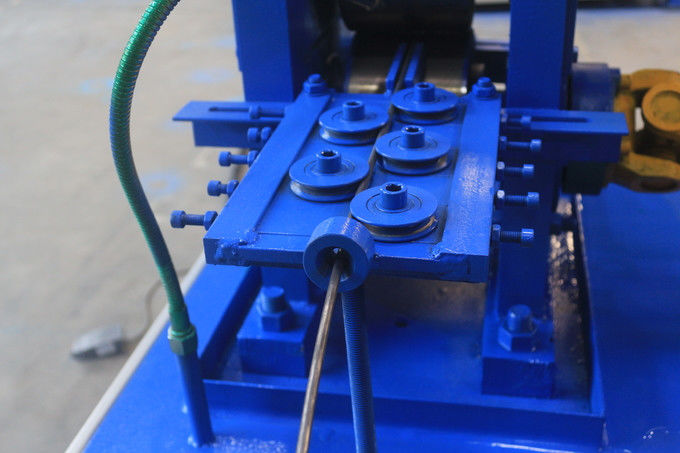

Flattening Roller Machine

The machine includes 3 sets of flattening device which will form the round wire into flat wire into 3 steps.



Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 2

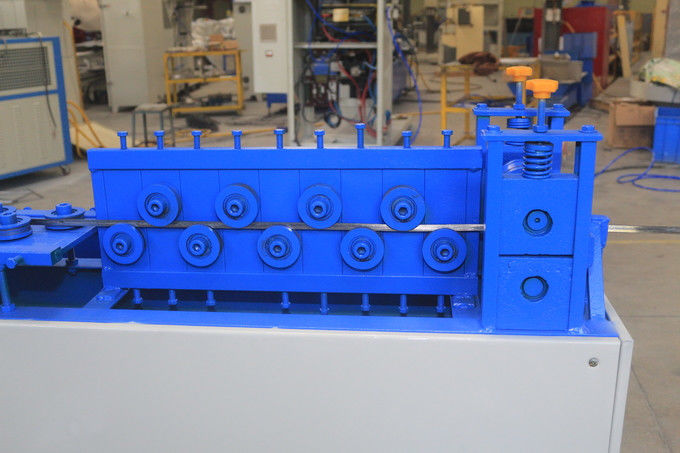

Input Round Wire into Rolling Machine

You may input the round wire from wire coil and the rolling machine will roll the round wire into flat wire.(Hardness of wire is no more than HRC43).The maximum processing wire is 8mm round wire into 3x12mm wire.After flattening, the surface of wire is smooth. No trace of calendering can be seen after plating.



 Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 3

Flat Wire Forming as per Required Size

The final flat wire will be formed according to your special requirement. Normally it will be 10x2mm, 12x3mm, 2.5x14mm, etc.



Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 4

Flat Wire Straightening and Cutting Device

You may input the desired cutting length into the touch screen, then the machine will cut the flat wire into certain length.


The thickness tolerance is ±0.1mm while the width tolerance is ±0.2mm, length tolerance is ±2mm. This Wire Flattening, Straightening and Cutting Machine for forming, straightening and cutting of round wire into flat wire. It is composed of feeder, three sets of wire flattening device and one straightening and cutting device. You can set different length according to requirement. It helps to increase the product quality and efficiency. Lower the production cost.is special for forming the low carbon steel round wire into flat wire. (Hardness of wire is no more than HRC43)



Technical Parameter Of The Wire Flattening And Cutting Machine



Applicable Material
Low carbon steel round wire (Hardness not exceeding HRC43)
Maximum Processing Diameter
8mm round wire into 3x12mm flat wire
Surface Condition
Smooth after flattening, no visible calendaring marks after plating
Thickness Tolerance
±0.1mm
Width Tolerance
±0.2mm
Length Tolerance
±2mm
Main Components
Feeder, three sets of wire flattening devices, one straightening and cutting device
Adjustable Length
Customizable according to requirements



Application Of The Wire Flattening And Cutting Machine

Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 5



We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.



Samples Of The Wire Flattening And Cutting Machineand samples

Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 6

Specification Of The Wire Flattening And Cutting Machine



Other Machines Related to Wire Shelf Production Line Composition



We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.



Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 7 Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 8

Wire Shelf Automatic Welding Machine

 This is the full automatic wire shelf welding machine which can do automatic wire filling, welding and unloading. We can design the welding machine according to your product and efficiency requirement.



High Speed Wire Straightening and Cutting Machine

 This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.

Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 9 Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 10

Wire Frame Bending Machine

 This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

 The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 11 Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 12

Wire Frame Double T-Butt Machine

 This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.



Wire Edge Trimming Machine

 After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.





Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 13 Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 14

2D Wire Handle Bending Machine

 This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

3D Wire Bending Machine

 This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.

Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 15Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 16Mild Steel copper wire flattening machine Cutting For Flat Wire Frame 17
