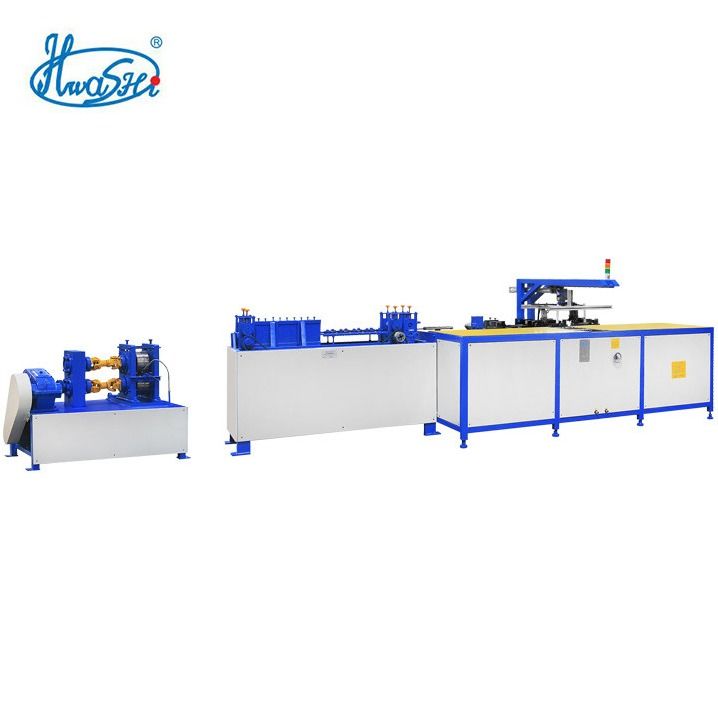

Mild Steel Wire Flattening, Straightening and Cutting Machine for Flat Wire Frame

Mild Steel Wire Flattening And Cutting Machine For Flat Wire Frame 0

Description of mild steel wire flattening, straightening and cutting machine for flat wire frame

Mild Steel Wire Flattening, Straightening and Cutting Machine for Flat Wire Frame is special for forming the low carbon steel round wire into flat wire. (Hardness of wire is no more than HRC43). The maximum processing wire is 8mm round wire into 3x12mm wire. After flattening, the surface of wire is smooth. No trace of calendering can be seen after plating.
The thickness tolerance is ±0.1mm while the width tolerance is ±0.2mm, length tolerance is ±2mm. This Wire Flattening, Straightening and Cutting Machine for forming, straightening and cutting of round wire into flat wire. It is composed of feeder, three sets of wire flattening device and one straightening and cutting device. You can set different length according to requirement. It helps to increase the product quality and efficiency. Lower the production cost.is special for forming the low carbon steel round wire into flat wire. (Hardness of wire is no more than HRC43)

Mild Steel Wire Flattening And Cutting Machine For Flat Wire Frame 1 Mild Steel Wire Flattening And Cutting Machine For Flat Wire Frame 2

Input Round Wire into Rolling Machine

You may input the round wire from wire coil and the rolling machine will roll the round wire into flat wire

Flattening Roller Machine

The machine includes 3 sets of flattening device which will form the round wire into flat wire into 3 steps

Mild Steel Wire Flattening And Cutting Machine For Flat Wire Frame 3 Mild Steel Wire Flattening And Cutting Machine For Flat Wire Frame 4

Flat Wire Forming as per Required Size

The final flat wire will be formed according to your special requirement. Normally it will be 10x2mm, 12x3mm, 2.5x14mm, etc

Flat Wire Straightening and Cutting Device
You may input the desired cutting length into the touch screen, then the machine will cut the flat wire into certain length,



Other Machines Related to Wire Shelf Production Line Composition

We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.

Mild Steel Wire Flattening And Cutting Machine For Flat Wire Frame 5 Mild Steel Wire Flattening And Cutting Machine For Flat Wire Frame 6

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Mild Steel Wire Flattening And Cutting Machine For Flat Wire Frame 7 Mild Steel Wire Flattening And Cutting Machine For Flat Wire Frame 8



Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.



Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.

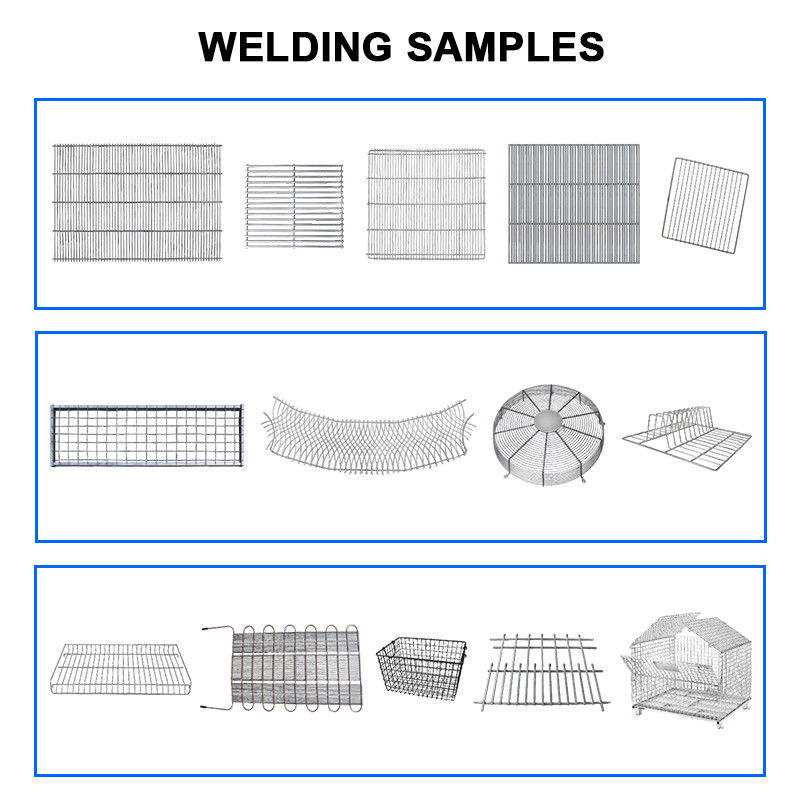

Application and Samples of Mild Steel Wire Flattening, Straightening and Cutting Machine for Flat Wire Frame

Mild Steel Wire Flattening And Cutting Machine For Flat Wire Frame 9

Mild Steel Wire Flattening And Cutting Machine For Flat Wire Frame 10

Mild Steel Wire Flattening And Cutting Machine For Flat Wire Frame 11
