Double Head T-Type Butt Welding Machine For Sale 75KVA

Double Head T-Type Butt Welding Machine For Sale 75KVA

butt welder

butt welding machine for sale

Butt Welding Machine 75KVA

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SD-75K

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI WL-SD-75K Double Head 100KVA 21KA Butt Welding Machine
Application:
Welding Of Row Shape And Metal Wire Mesh Or Pipe To Pipe
Size:
1300x1200x1750mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
500kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

 Hwashi Double-Head Frame T-Butt Welding Machine For T-Welding Wire Profile Of Wire Basket Or Wire Shelf

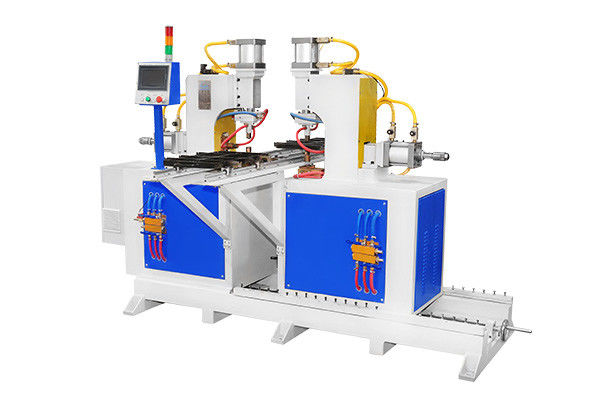

Double Head T-Type Butt Welding Machine For Sale 75KVA 0

Description Of The Double Head T-Type Butt Welding Machine

When you need the double head T-type butt welding machine, please send your wire mesh drawing or picture with below dimensions first clearly showing:

1. wire diameter;

2. the distance between wires;

3. the max length and width of the wire mesh;

4. production capacity;

5. cost budget.



Then we can custom design and manufacture for you based on your requirements. Also we will give our suggestions base on our experience.

When we design, we put the below factors into consideration: welding spot position, welding quality consistence, applicable for welding different wire meshes (adjustable) and production efficiency.

This machine is design with two sets of AC welding power, moveable welding fixture. It is suitable for welding T shape wire frame product. Easy operation, no need skilled welding worker. 2 welding power which will enhance welding effective and assure firm and stable welding quality.

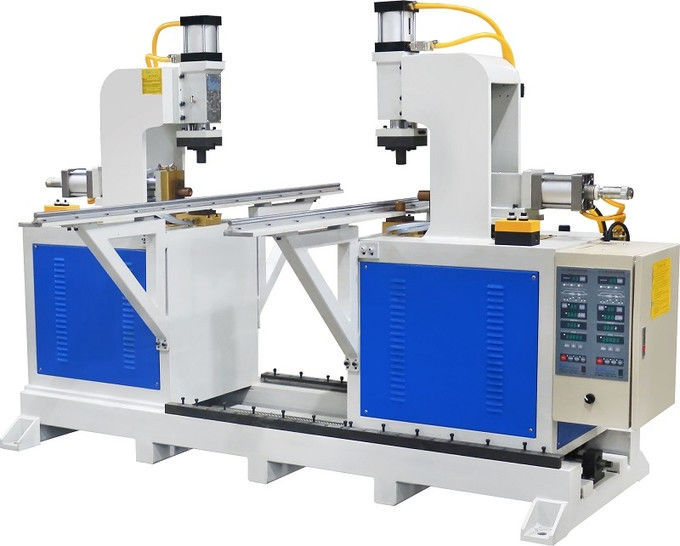

Double Head T-Type Butt Welding Machine For Sale 75KVA 1



Double Head T-Type Butt Welding Machine For Sale 75KVA 2




Customized Special Welding Moulds
Processing and making suitable molds according to different product butt welding requirements, making work easier.



Specification Of The Double Head T-Type Butt Welding Machine

No.
Items
Data
1
Welding Power Source
AC 50Kx2
2
Input Voltage
Two-phase 380V±10% 50Hz
3
Rated Capacity
100KVA
4
Power Factor
90%
5
Duty Cycle Rate
25%
6
Frequency
50HZ
7
Welding Schedule
9 types
8
Output Method
AC
9
Insulation Grade
F
10
Max. Short Circuit Current
21KA
11
Upper Pressing Cylinder
Φ50x100mm
12
Side Welding Cylinder
Φ50x100mm(adjustable stroke)
13
Feeder Stroke
2000mm
14
Welding Head Moving Stroke
1000mm
15
Rated Air Pressure
0.6MPa
16
Water Pressure
0.2Mpa
17
Water Temperature
10-20℃





Model: WL-SD-75K

Machine power: Standard AC 75 kva.

Welding power number: 1 or 2, which is available to modify as your real need.

Semi-automatic machine: Manual loading material into welding fixture, and manual push fixture when welding.

Machine controller: Mirco-computer Intelligent KD-5 controll -easy operation.

Check below file for more detail information for controller.

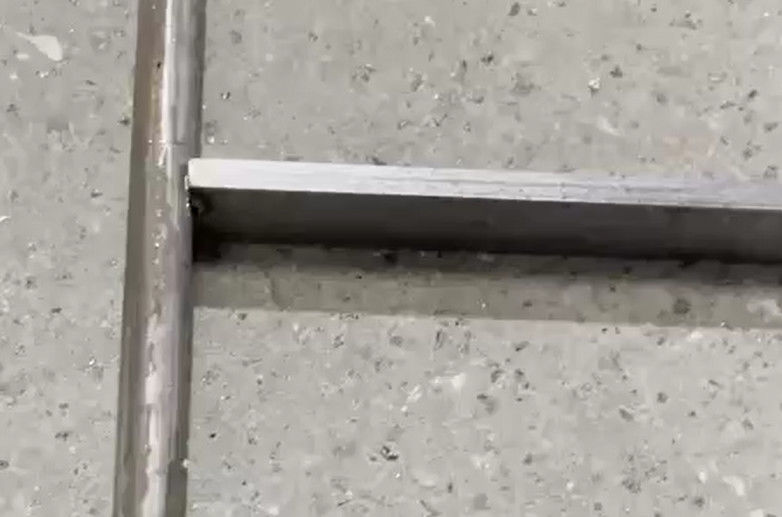

Application And Samples Of  The Double Head T-Type Butt Welding Machine

Welding of row shape and metal wire mesh or pipe to pipe.

Double Head T-Type Butt Welding Machine For Sale 75KVA 3Double Head T-Type Butt Welding Machine For Sale 75KVA 4



Double Head T-Type Butt Welding Machine For Sale 75KVA 5Double Head T-Type Butt Welding Machine For Sale 75KVA 6Double Head T-Type Butt Welding Machine For Sale 75KVA 7
