Single Head XY Axis Row Automatic Wire Mesh Welding Machine High Speed Making

Single Head XY Axis Row Automatic Wire Mesh Welding Machine High Speed Making

automatic wire mesh welding machine

mesh welding machine

weld mesh making machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-TSP-MF150K

Contact Us
Request A Quote
Product Details
Product Name:
Single-Head XY Axis Wire Mesh Row Automatic Welding Machine High Speed Full Automatic
Condition:
New
Warranty:
12 Months
Service Life:
8-10 Years
Input Voltage:
Two-phase 380V
Input Current:
65A
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

Single-Head Long Arm X, Y Axis Automatic Moving And Welding Machine For Wire Meshing

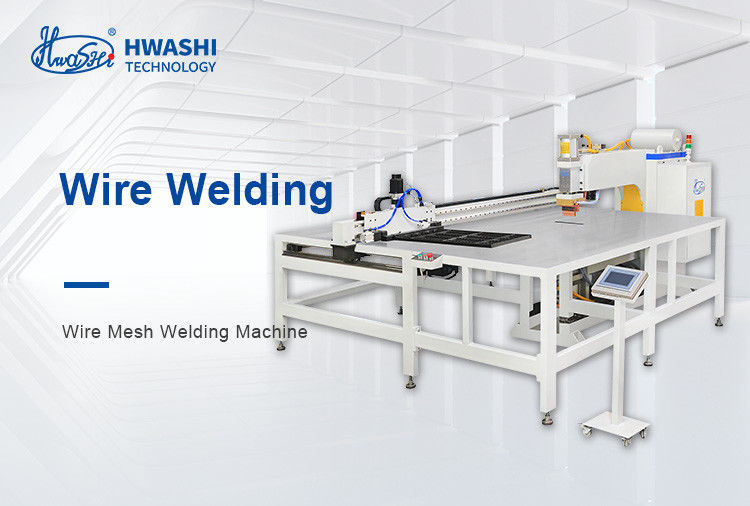

Single Head XY Axis  Row Automatic Wire Mesh Welding Machine High Speed  Making 0

Description of The Single Head XY Axis Wire Mesh Row Welding Machine

Single-Head Long Arm X, Y Axis Automatic Moving And Welding Machine For Wire Meshing is designed to weld small wire mesh which can be matched with different welding fixtures. This machine is of simple structure which will make the assembly very easy. Wire welding machine adopts a single-head long arm type welding structure, equipped with work piece molds that move along the X and Y axis automatically. Input coordinated at a of welding position, welding current and other data to realize automatic welding. Just need to load the material manually and take out the work piece. lt is suitable for the welding of the mesh with in the range of 1000mm X 1000mm.

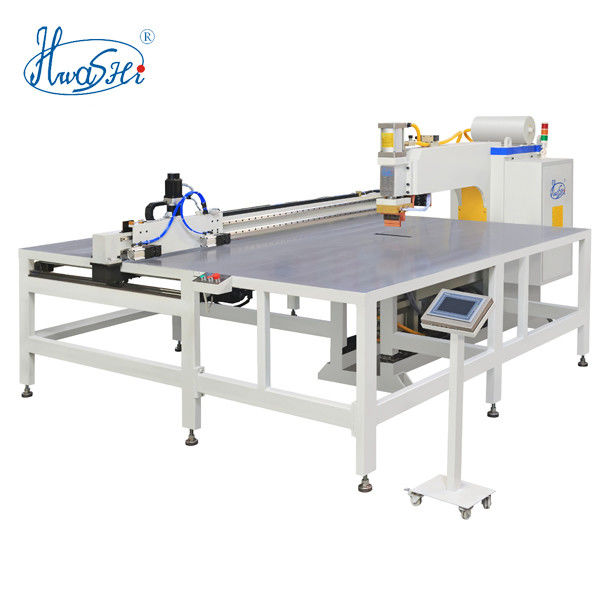

Single Head XY Axis  Row Automatic Wire Mesh Welding Machine High Speed  Making 1 Single Head XY Axis  Row Automatic Wire Mesh Welding Machine High Speed  Making 2

Intelligent welding control system

Automatic welding by inputting coordinate data of welding position, welding current and other data.

Special product molds welding platform

Processing and production according to the size of each mesh product.

Single Head XY Axis  Row Automatic Wire Mesh Welding Machine High Speed  Making 3 Single Head XY Axis  Row Automatic Wire Mesh Welding Machine High Speed  Making 4

X.Y axis moving device

Equipped with automatic movement of the workpiece mold along X and Y axes, only manual swinging and removal of the workpiece is required.

Single head long arm type welding

The equipment adopts single head long arm type welding structure, can be customized according to the needs of the workpiece double row or multi-row welding head.



Specification of The Single Head XY Axis Wire Mesh Row Welding Machine

Model WL-TSP-100/150K
Input Power (V/φ) 380/3
Rated Power (KVA) 100/150
Applicable Material Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG) 250-400
Wleding Thickness (MM) 1-5mm
Warranty 1 years
Mesh Welding Range 1000mm X 1000mm

The XY axis mold frame is driven by servo motor with synchronous belt drive, and the walking step length and speed are controlled by the control system. When the manual material is fixed on the mold frame, the switch is activated and controlled by the industrial control computer, the product will walk alternately with the X and Y axes of the mold frame to automatically complete the welding of each part of the joints, and will automatically return to the origin when the welding is completed, without the need for manual operation by other personnel. At the same time, the operator can set up the material to prepare for the next welding work, which not only reduces the labor cost, but also effectively uses the welding time to set up the material.

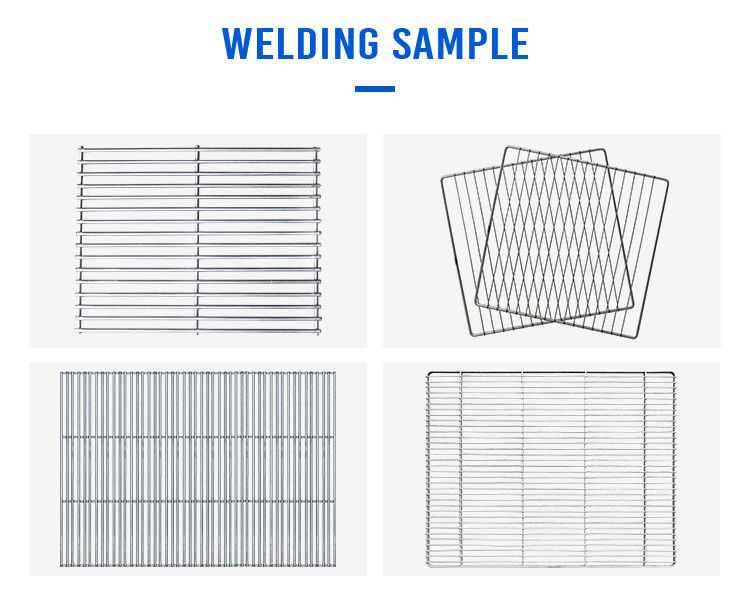

Application And Samples of The Single Head XY Axis Wire Mesh Row Welding Machine



      Single Head XY Axis  Row Automatic Wire Mesh Welding Machine High Speed  Making 5Single Head XY Axis  Row Automatic Wire Mesh Welding Machine High Speed  Making 6

Single Head XY Axis  Row Automatic Wire Mesh Welding Machine High Speed  Making 7Single Head XY Axis  Row Automatic Wire Mesh Welding Machine High Speed  Making 8
