Mesh Wire Trimming Machine Doing The Wire Diameter 2mm And 6mm Wire Cutter Machine

HWASHI Wire Trimming Machine Doing The Wire Diameter 2mm And 6mm

Description of HWASHI Wire Trimming Machine Doing The Wire Diameter 2mm And 6mm

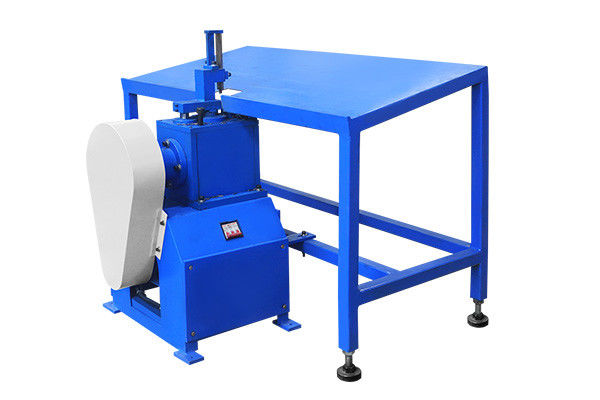

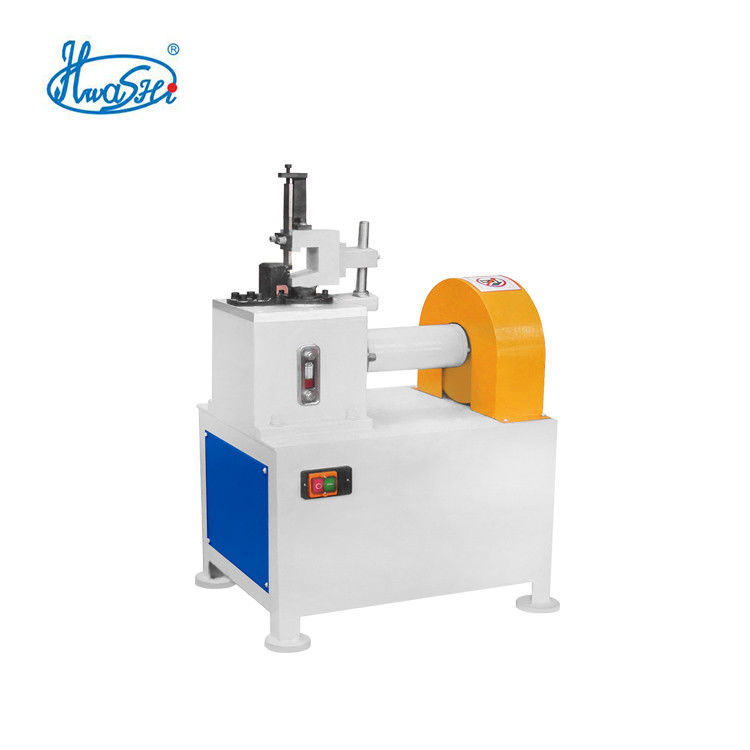

HWASHI Wire Trimming Machine Doing The Wire Diameter 2mm And 6mm is mainly used for trimming the edge of steel wire, can do the wire diameter 2mm and 6mm. This machine is mainly used for the peripheral trimming of wire metal mesh. The trimming diameter is φ3-φ8. The size of the trimming mesh is not limited. It can be completed with the assistance of auxiliary tooling. The cutting speed is fast and the port is flat. The machine is composed of a frame and a drive. Components, eccentric mechanism, headstock, cutter components, control components, composed of six parts.
The size of the mesh is not limited, work can be done easily and quickly with the help of fixtures. This machine provides fast cutting speed, even trimming end and it is very easy to use. Utilizing high quality shaft and bearings, not only meet the requirement of normal working, also increases the stability and reliability, and make it durable.

Main technical data of HWASHI Wire Trimming Machine Doing The Wire Diameter 2mm And 6mm

Application and Samples of HWASHI Wire Trimming Machine Doing The Wire Diameter 2mm And 6mm

This machine is mainly used for trimming the periphery of wire mesh.

1.Transmission components: composed of AC motor, belt pulley, beltflywheel.

2. Eccentric mechanism: mainly composed of eccentric spindle,bearing, bearing gland, spindle, main sleeve and tin bronze slider.

3. Spindle mechanism: composed of ductile iron main box, box cover,guide basin, oil sleeve, sealing cover and sealing ring.

4.Cutter mechanism: mainly composed of tool holder spindle, tool holder, upper cutter, lower cutter, upper cutter limit seat, tool holder guide column, tool holder guide block, and tool holder guide sleeve.

Certifications of HWASHI Wire Trimming Machine Doing The Wire Diameter 2mm And 6mm

We have passed the international certifications such as CE certification, ISO9001 quality management system certification, Alibaba enterprise certification and design patents.
