Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-SM-110

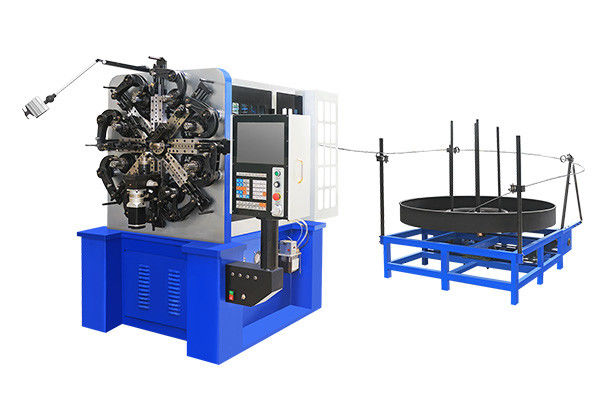

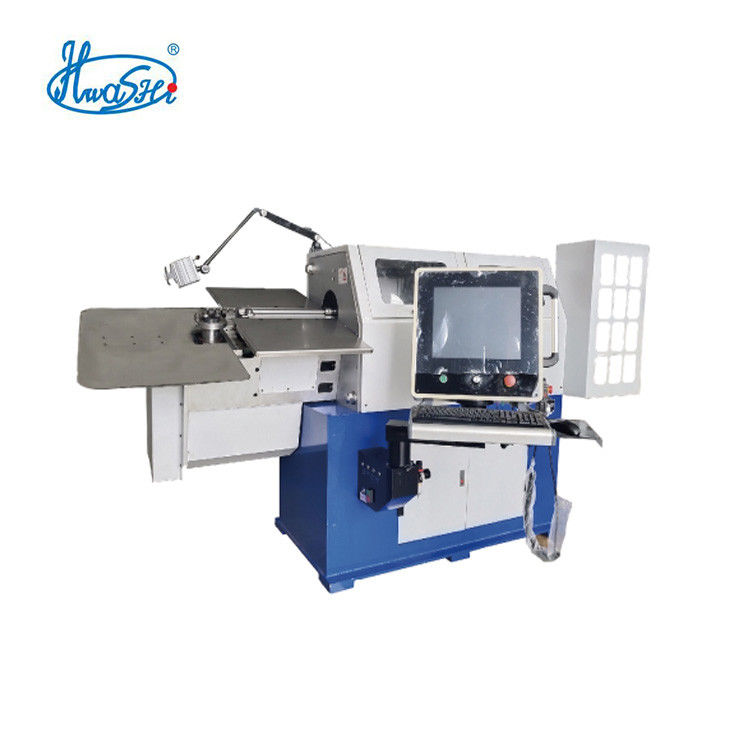

Automatic 3D Wire Bending Machine/Spring Machine For Supermarket Trolley
Description of Automatic 3D Wire Bending Machine/Spring Machine For Supermarket Trolley

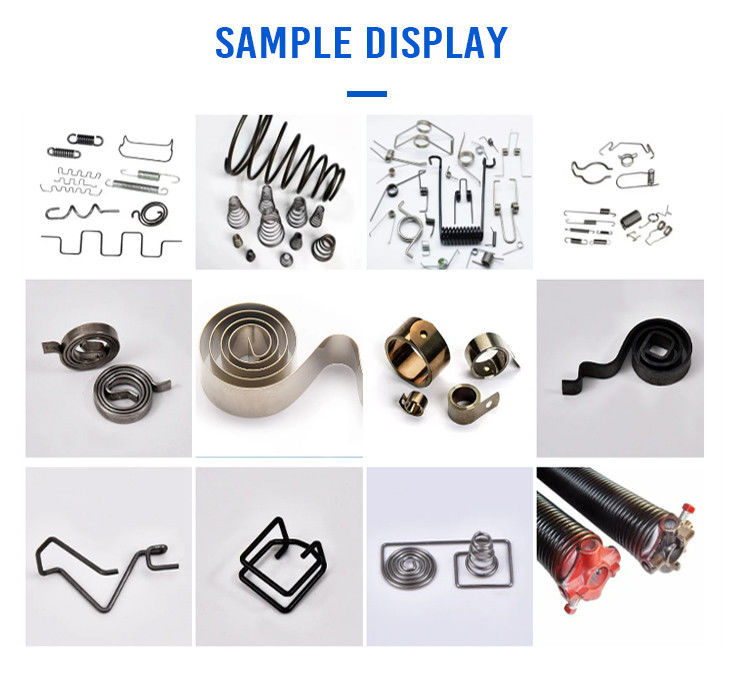

This equipment is controlled by intelligent microcomputer and equipped with high precision detection and tracking system. The machine will stop automatically when there are unqualified products. Specializing in the production of metal crafts wire, kitchenware holder, storage cage, supermarket trolley, shelves wire forming products and various specifications of spring, complex and various type of spring.
FEATURES AND FUNCTIONS of Automatic 3D Wire Bending Machine/Spring Machine For Supermarket Trolley
1.computer startup, shutdown speed is fast, simple and convenient to operate, support multi-language operation, the computer interface can adjust the speed and change the program at the same time of production.
2. the configuration adopts the imported high-precision and high-speed servo motor, imported reducer, stable and durable production speed which is 30% higher than the domestic counterparts of the same kind of products.
3. bearings, gear and other important parts of the imported parts, 9125 hours of warranty, durable and reliable equipment.
4. Perfect after-sales service system: respond within 12 hours of working days and provide technical training support free of charge online! Equipment lifelong maintenance!
TECHNICAL DATA of Automatic 3D Wire Bending Machine/Spring Machine For Supermarket Trolley
| Model | CNC-HS-7-80 | CNC-HS-7-60 | |
| Wire diameter | 3.0-8.0mm | 2.0-6.0mm | |
| Axis number | 7 axis | 7 axis | |
| Wire feed length | infinite | infinite | |
| Maximum wire feed speed | 100m/min | 100m/min | |
| Maximum feed length | Infinite | Infinite | |
| Input voltage | 380V | 380V | |
| Computer specifications | Industrial computer | Industrial computer | |
| Process data storage | More than 2000 | More than 2000 | |
| Machine size | Length | 4100mm | 2900mm |
| Width | 2000mm | 900mm | |
| Highly | 1900mm | 1800mm | |
| Machine weight | 4300KG | 3000kg | |
QUOTATION of Automatic 3D Wire Bending Machine/Spring Machine For Supermarket Trolley
Model: CNC-HS-7-80 (Suitable for 3-8mm wire) USD57000
CNC-HS-7-60 (Suitable for 2-6mm wire) USD45000
Configuration of Automatic 3D Wire Bending Machine/Spring Machine For Supermarket Trolley
| No. | Items name | Brand | Country of Origin |
| 1 | Servo motor and Encoder | SANYO | Japan |
| 2 | Linear Guide and ball screw | HIWIN | Taiwan, China |
| 3 | Power Supply | Mean Well | Taiwan, China |
| 4 | Display screen | AUO | Taiwan, China |
| 5 | Inverter | Delta | Taiwan, China |
| 6 | CNC System | HWASHI | China |
| 7 | Bearing | NSK | Japan |
| 8 | Reducer | PHT | Taiwan, China |
| 9 | Keyboard | Logitech | China |
| 10 | Main board | HWASHI | China |
| 11 | Machine Frame | HWASHI |
China |
