18KA Foot Pedal Operated Spot Welding Machine For Iron Wire Products

18KA Foot Pedal Operated Spot Welding Machine For Iron Wire Products

pedal operated spot welding machine

pedal spot welding machine

spot welder foot pedal

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-FT-50K

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI 18KA Pedal Foot Operated Spot Welder For Iron Wire Products
Application:
Iron Wire Products
Output Current:
18KA
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Input Power:
380 V
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
US $1,1130-1,320 / Set
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

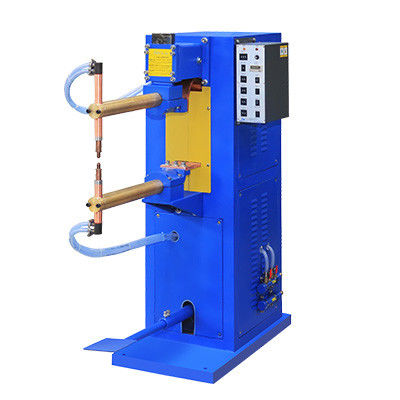

Pedal Type Resistance Spot Welding Machine 18KA Easy Operation

18KA Foot Pedal Operated Spot Welding Machine For Iron Wire Products 0

Detailed Description Of Pedal Type Resistance Spot Welding Machine

1. The lower electrode arm can be adjusted from up to down, from left to right, from front to back.

2. The power structure which is transmitted by reasonable pressurization to the leverage together with power is flexible, reliable conductivity and long service life.

3. Low production cost.

4. Easy operation

18KA Foot Pedal Operated Spot Welding Machine For Iron Wire Products 1

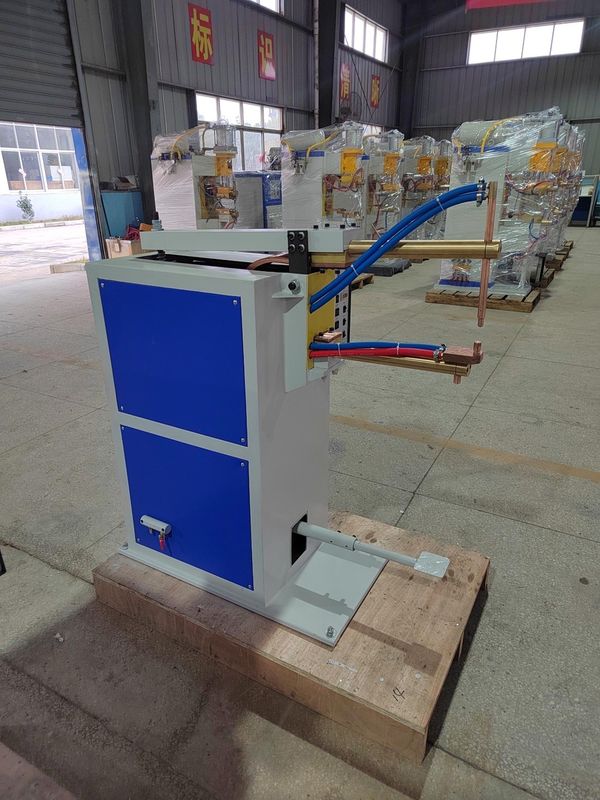

Simple Structure with Durable Quality



Easy Operation for worker. Low machine cost

18KA Foot Pedal Operated Spot Welding Machine For Iron Wire Products 2

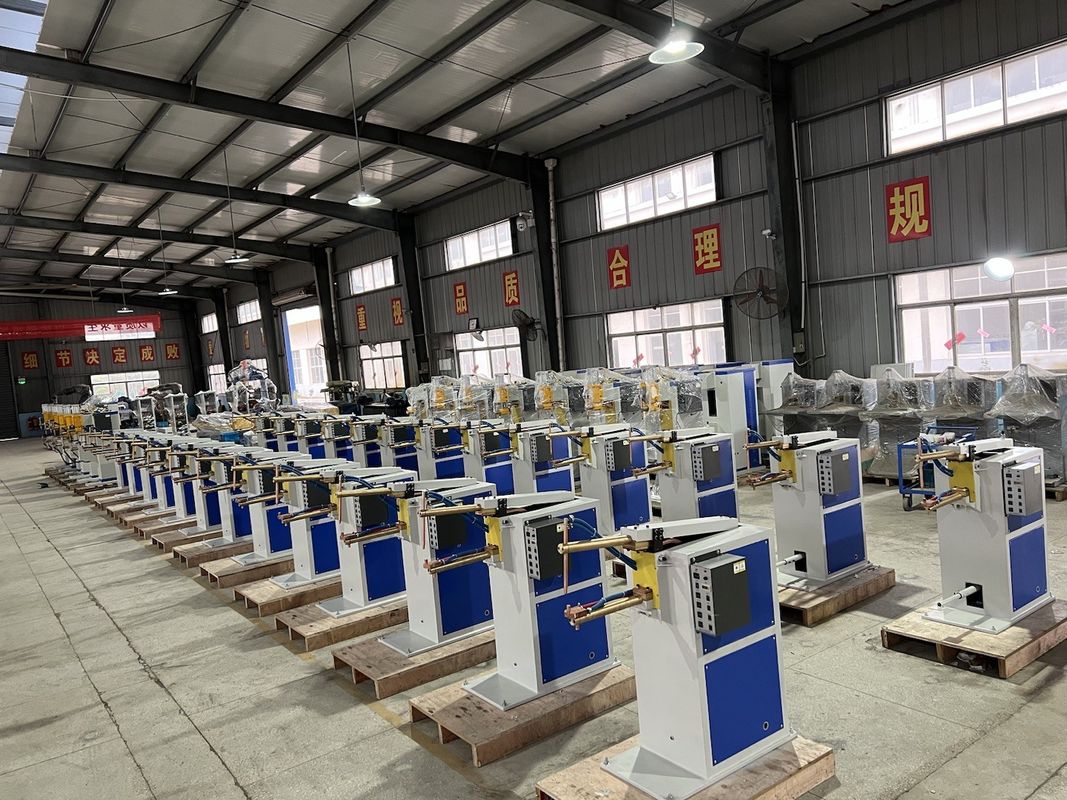

Plenty of machines in stock, fast delivery



We keep more than hundreds set of machines in stock.

We can deliver the machines to you within 1 week.





Features Of Pedal Type Resistance Spot Welding Machine

1. Pedallever control circuit. Main engin without electricity when do not help pedal. It can save electricity.

2. Using timing control. Even the work piece is still being pressed while welding, current can beautomatically cut off on time and reduce the human factor. Easier operation. The quality of welding spot is more stable.

3. Timing using electronic controller stepless regulation. Setting range from 0.02 to 2 seconds ( usually the required time of work piece is within 0.5 seconds) accurately repeat the selection.



Application And Sample Of Pedal Type Resistance Spot Welding Machine

Iron wire products, metal decorative lighting, kitchen utensils, automobile industries, small appliances, small hardware, etc

18KA Foot Pedal Operated Spot Welding Machine For Iron Wire Products 3

Technical parameter Of Pedal Type Resistance Spot Welding Machine

Model Input Voltage Input Power Output Current Electrode Distance Electrode Stroke
V KW KA mm mm
WL-FT-16K 380 16 10 100 30
WL-FT-25K 380 25 12 100 30
WL-FT-35K 380 35 14 100 30
WL-FTA-50K 380 50 18 100 30
WL-FTB-50K 380 50 18 100 30
WL-FTC-50K 380 50 18 100 30

18KA Foot Pedal Operated Spot Welding Machine For Iron Wire Products 418KA Foot Pedal Operated Spot Welding Machine For Iron Wire Products 5

18KA Foot Pedal Operated Spot Welding Machine For Iron Wire Products 6
