5000w Mini Spot Welder Welding Machine With Single Head Or Parallel Gap

5000w Mini Spot Welder Welding Machine With Single Head Or Parallel Gap

5000w mini spot welder

mini spot welder welding machine

mini spot welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-CJ-1K

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Precision Spot Welder, Mini Spot Welding Machine With Single Head Or Parallel Gap
Application:
Welding Of Silver Contact Of Low Voltage Appliances, Welding Of Mini Precise Work Pieces Like Crystal Valve Of Chip, Etc.
Size:
500*400*300mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Input Power:
220 V
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

HWASHI Precision Spot Welder, Mini Spot Welding Machine with Single Head or Parallel Gap5000w Mini Spot Welder Welding Machine With Single Head Or Parallel Gap 0

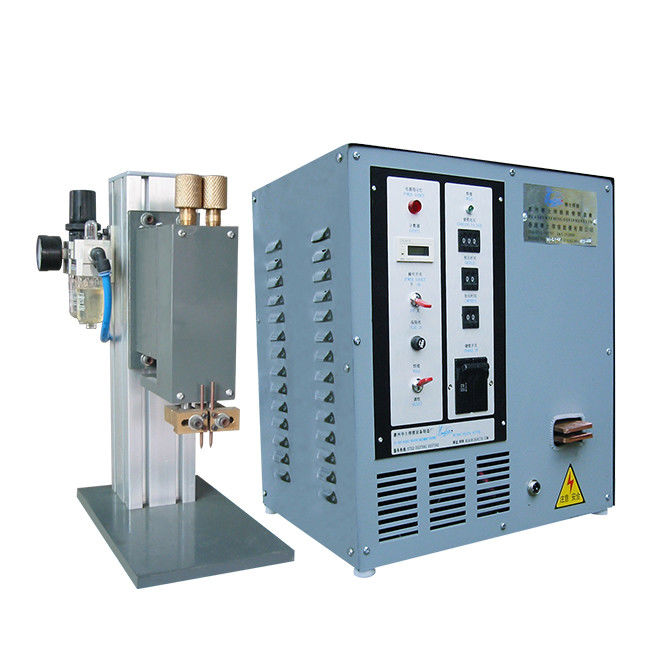

Description Of Precision Micro Spot Welder

Precision Spot Welder not only possesses the general features of capacitor discharge spot welding machine, but also possesses other performance features as follows,

1.Rigid welded Steel frame.
2. Air Operated.
3. Low-Inertia Guided Ram with Spring Force adjustment.
4. Dual Rams on Parallel Gap Model.
5. Precision Bimba Air Cylinders.

6. Ram guiding by Cross Roller Instrument Slides.
7. Electrodes and Horns secured by Cam
8. Lock Fastener.
9. Dual Anti-Tie Down Palm Button Initiation or Electric Footswitch according to application.



Features Of Precision Micro Spot Welder

1. Effectively restrain the occurrence of welding spatter;

2. High working accuracy;

3. High degree of steel structure;

4. Low pressure of welding;

5. Stepless adjustment of electrode pressure range;

6. Stepless adjustment of electrode pressure stroke;

7. Flexible collocation of welding head. Indirect single-point, indirect double-point and direct single-point or direct double-point is all available.

5000w Mini Spot Welder Welding Machine With Single Head Or Parallel Gap 15000w Mini Spot Welder Welding Machine With Single Head Or Parallel Gap 25000w Mini Spot Welder Welding Machine With Single Head Or Parallel Gap 35000w Mini Spot Welder Welding Machine With Single Head Or Parallel Gap 4

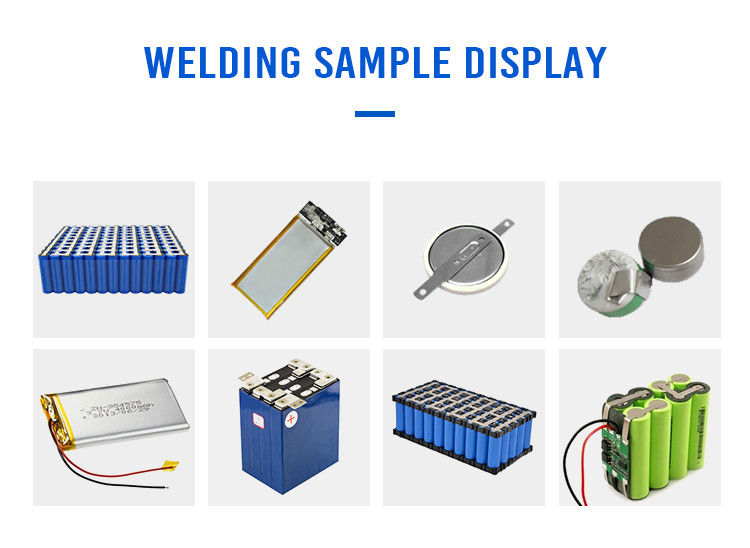

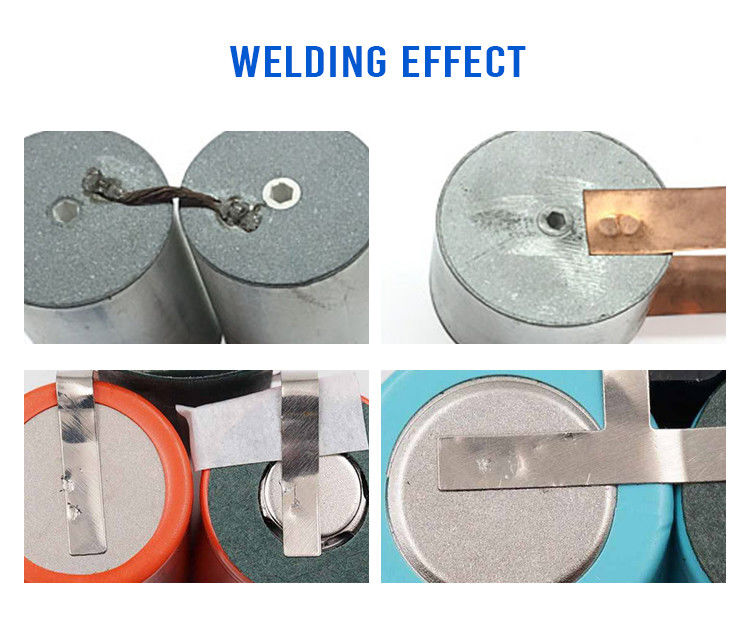

Application Area And Samples Of Precision Micro Spot Welder
Welding of silver contact of low voltage appliances, welding of mini precise work pieces like crystal valve of chip, etc.

5000w Mini Spot Welder Welding Machine With Single Head Or Parallel Gap 5

5000w Mini Spot Welder Welding Machine With Single Head Or Parallel Gap 6



Technical Parameters Of Precision Micro Spot Welder

Model Welding Spot Manner Input Voltage

Input

Power

Capacitance Output Heat Welding Capability Dimensions
Single / Double V KW μF J mm×Pieces W*D*H (mm)
WL-CJ-0.5K Direct single-point 220/1 0.5 2000 180 0.4×2 500*400*300
WL-CJD-0.5K Indirect double-point 220/1 0.5 2000 180 0.4×2 500*400*300
WL-CJ-1K Direct single-point 220/1 1 3000 380 0.5×2 500*400*300
WL-CJD-1K Indirect double-point 220/1 1 2000 180 0.5×2 600*450*300
WL-CJ-2K Direct single-point 220/1 1 4500 500 1.0×2 380*650*450
