Automatic Wire Ring Making And Butt Welding Machine For Daily Hardware

Automatic Wire Ring Making And Butt Welding Machine For Daily Hardware

Automatic Wire Ring Making Machine

Wire Ring Making Machine

Butt Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-AT-75K

Contact Us
Request A Quote
Product Details
Product Name:
Automatic Wire Ring Making And Butt Welding Machine For Daily Hardware
Application:
Wire Ring Making And Welding Forming
Warranty:
12 Months
Service Life:
8-10 Years
Condition:
New
Size:
1800mmX1400mmX1400mm
Weight:
1100kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

Automatic Wire Ring Making And Butt Welding Machine For Daily Hardware

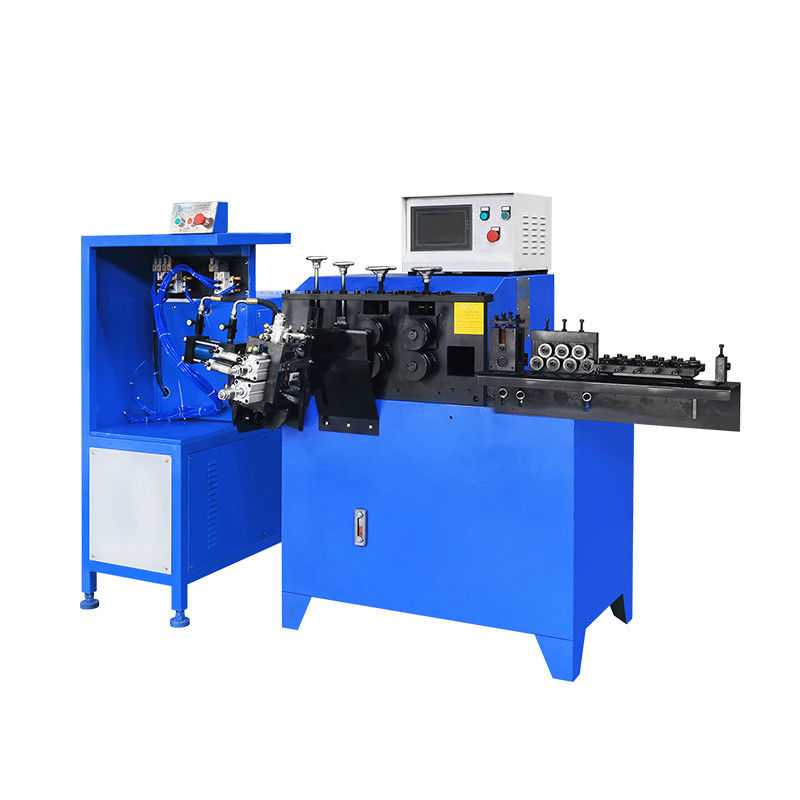

Automatic Wire Ring Making And Butt Welding Machine For Daily Hardware 0

Description of Automatic Wire Ring Making And Butt Welding Machine For Daily Hardware

Automatic Wire Ring Making And Butt Welding Machine For Daily Hardware design three-axis structure which includes the wire straightening mechanism, cutting mechanism, line pressing mechanism and forming mechanism; The straightening mechanism adopts multiple sets of rollers to press up and down and left and right for straightening. The structure ensures light scratches on the surface of the metal wire, and ensures the straightening of the metal wire and the base formed by bending in half. By using servo Drive wire feeding wheel to move the wire forming position, it can move forward and backward according to the program; Forming mechanism through the folding Angle of the bend, with the work of the wire feeding mechanism, the wire bending into a plane shape; Automatic operation of the equipment after loading. The equipment structure is reasonable, stable and reliable, simple operation, high degree of automation, operators can manage multiple machines at the same time, greatly improve the production efficiency, hardware, network cable manufacturers and other necessary special equipment.



Specification of Automatic Wire Ring Making And Butt Welding Machine For Daily Hardware

No. Item Automatic Welding Automatic Welding Automatic Coiling
1 Input Power 75KW 75KW 2.2KW
2 Input Voltage

400V50Hz Three-phase

400V50Hz Single-Phase

380V Three-Phase
3 Input Current 115A 135A 10A
4 Output Voltage DC7.6V AC5.6V
5 Max Short Circuit Current 21000A 24000A
6 Welding Models 101 types 16 Types
7 Wire Diameter Range 2-8mm
8 Coiling Ring Diameter 35-750mm

Application and samples

HWASHI CNC 3 Axis 2D Wire Welding Bending Machine PLC Hydraulic Bending Type 7

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

HWASHI CNC 3 Axis 2D Wire Welding Bending Machine PLC Hydraulic Bending Type 8

Automatic Wire Ring Making And Butt Welding Machine For Daily Hardware 3

Automatic Wire Ring Making And Butt Welding Machine For Daily Hardware 4

Automatic Wire Ring Making And Butt Welding Machine For Daily Hardware 5

Other Machines Related to Wire Shelf Production Line Composition

We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.

HWASHI CNC 3 Axis 2D Wire Welding Bending Machine PLC Hydraulic Bending Type 9 HWASHI CNC 3 Axis 2D Wire Welding Bending Machine PLC Hydraulic Bending Type 10

Wire Flattening and Cutting Machine

This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.

High Speed Wire Straightening and Cutting Machine

This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.

HWASHI CNC 3 Axis 2D Wire Welding Bending Machine PLC Hydraulic Bending Type 11 HWASHI CNC 3 Axis 2D Wire Welding Bending Machine PLC Hydraulic Bending Type 12

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.



Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.
