Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-C-15K

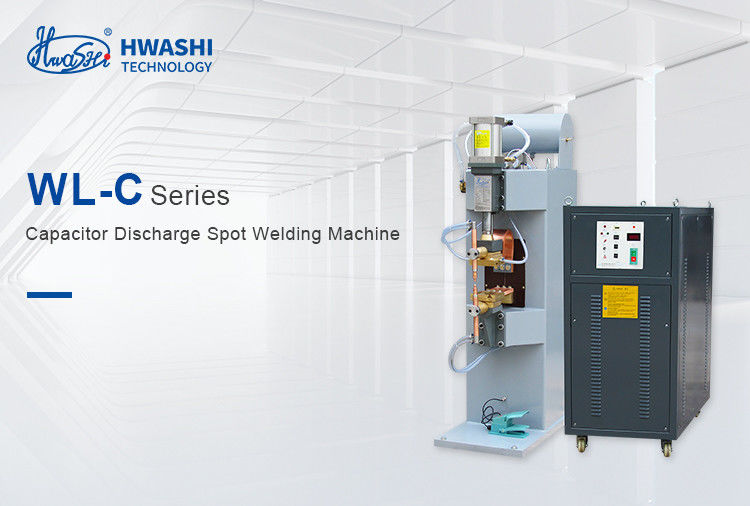

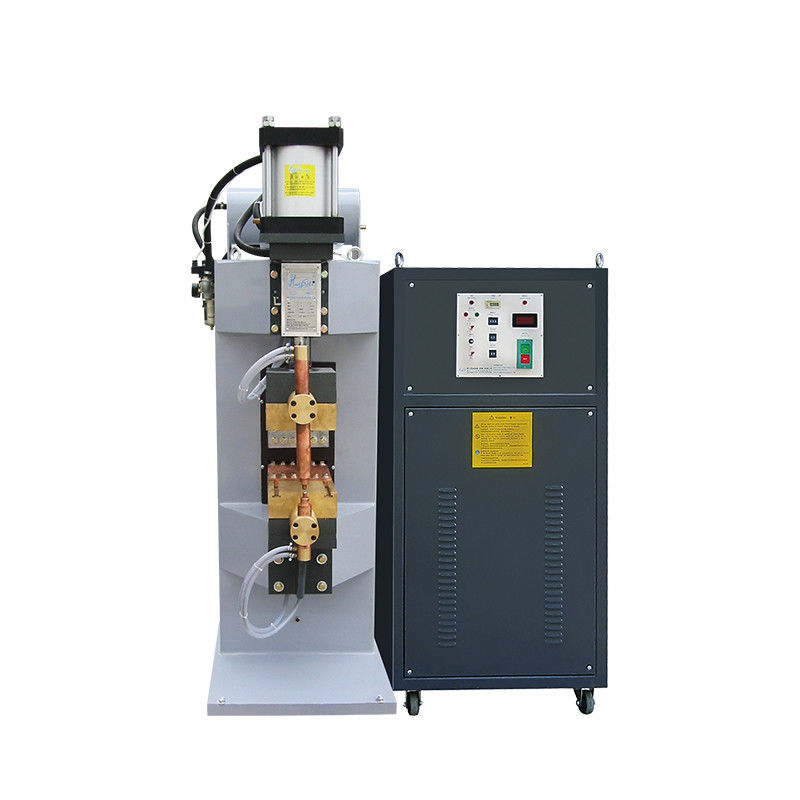

Stainless Steel Spot Welding Machine is specially customized for projection welding stainless steel and non-stick cookware handle. It has 2 working postion on the both sides. One is designed for welding non-stick cookware handle, It uses the way of current conduction from left and right electrode.The other side is normal capacitor discharge welding machine which has lower and upper electrode.
Versatile Application: Capable of welding nonferrous metals such as stainless steel, aluminum, titanium, silver, etc. It effectively addresses challenges in welding dissimilar metals like bronze and aluminum.
Robust and Aesthetically Pleasing: Ensures strong welds without leaving a black coating on the welding spots, eliminating the need for polishing. Particularly suitable for welding products destined for export, meeting high standards of appearance.
Energy-Efficient: This machine draws low surge power from the power grid and maintains a high power factor. In comparison to common AC machines with similar capabilities, it consumes only 1/7 to 1/10 of the power, resulting in significant energy and cost savings.
|
|
|
Intelligent welding control system Intelligent Touch Screen Controller Input and read |
Raw materials made to standard Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding. |
| |
|
|
Custom processing of electrodes Customized Electrodes which will be suitable forWelding material like steel, aluminium, silver, stainless steel, and nickel steel. |
Shape structure and welding method Design the right machine shape and mold according tothe welding product. |
Features Of WL-C-15K Stainless Steel Spot Welding Machine
1. No black coating after welding. No need polishing process.
2. Be able to achieve full automatic welding, labor cost saving.
3. High efficiency, and stable welding quality.
Specification Of WL-C-15K Stainless Steel Spot Welding Machine
| Model | Input Voltage | Input Power | Output Heat | Capacitance | Electrode Force | Electrode Stroke | Steel Belt Width |
| WL-C-5K | 380V | 5KVA | 3000J | 28000uF | 350kg | 80mm | 15mm |
| WL-C-7K | 380V | 7KVA | 4500J | 42000uF | 800kg | 100mm | 16-25mm |
| WL-C-10K | 380V | 10KVA | 6000J | 60000uF | 1000kg | 100mm | 26-30mm |
| WL-C-12K | 380V | 12KVA | 7000J | 70000uF | 1000kg | 100mm | 30-35mm |
| WL-C-15K | 380V | 15KVA | 8000J | 80000uF | 1000kg | 100mm | 36-40mm |
| WL-C-20K | 380V | 20KVA | 15000J | 150000uF | 1500kg | 100mm | 41-50mm |

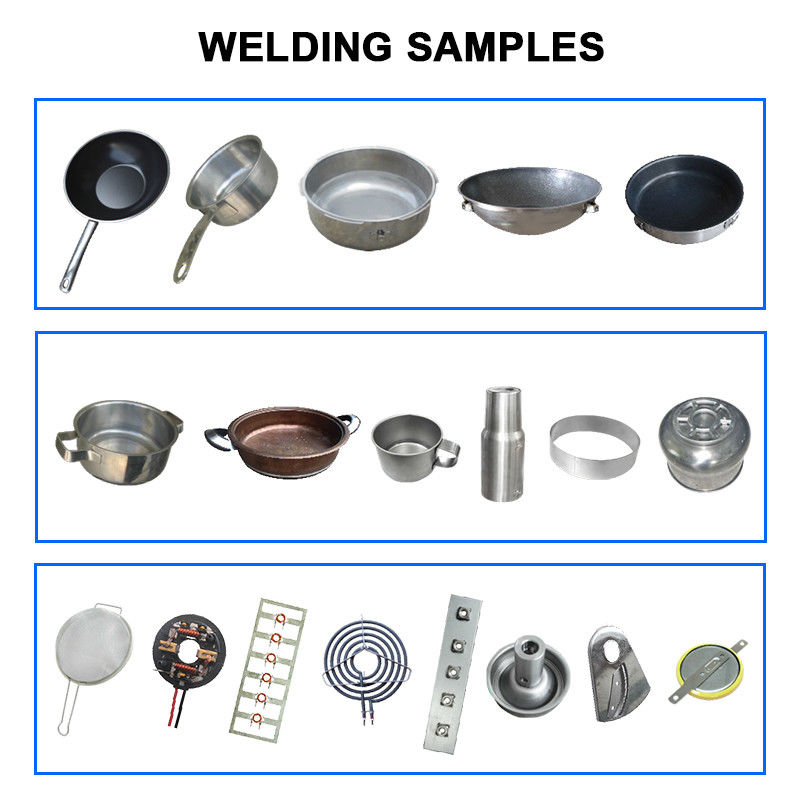

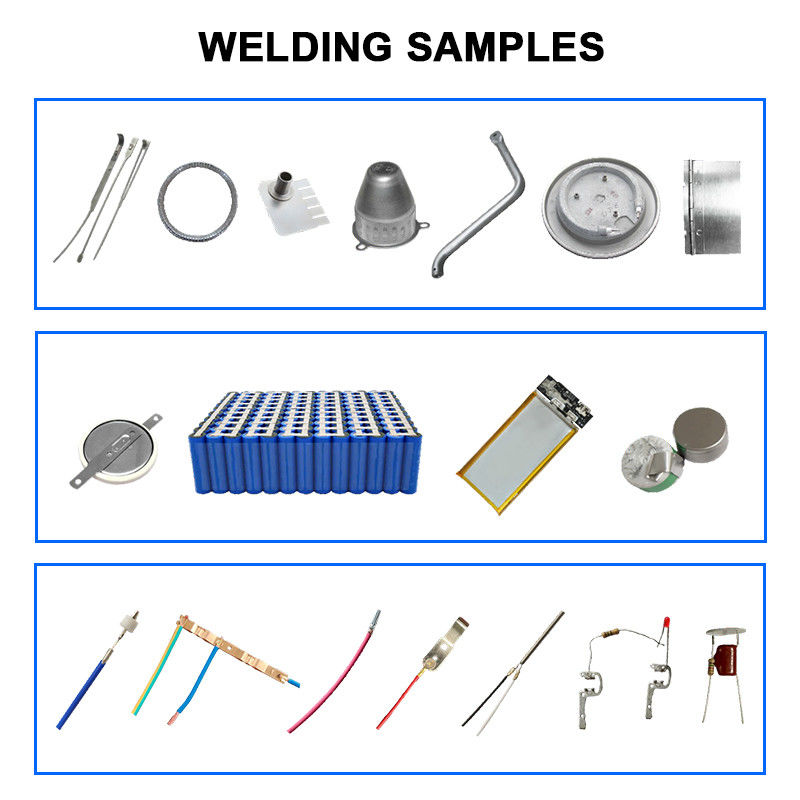

Application and Samples Of WL-C-15K Stainless Steel Spot Welding Machine
