5KVA Spot Welding Machine For Stainless Steel Cook Pot Handle Bracket

5KVA Spot Welding Machine For Stainless Steel Cook Pot Handle Bracket

5 kva spot welding machine

5KVA spot welding machine for stainless steel

spot welding machine 5kva

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-C-5K

Contact Us
Request A Quote
Product Details
Product Name:
WL-C-5K Capacitor Discharge Welding Machine
Application:
Cook Pot Handle Bracket
Size:
700x390x1570mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
300kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

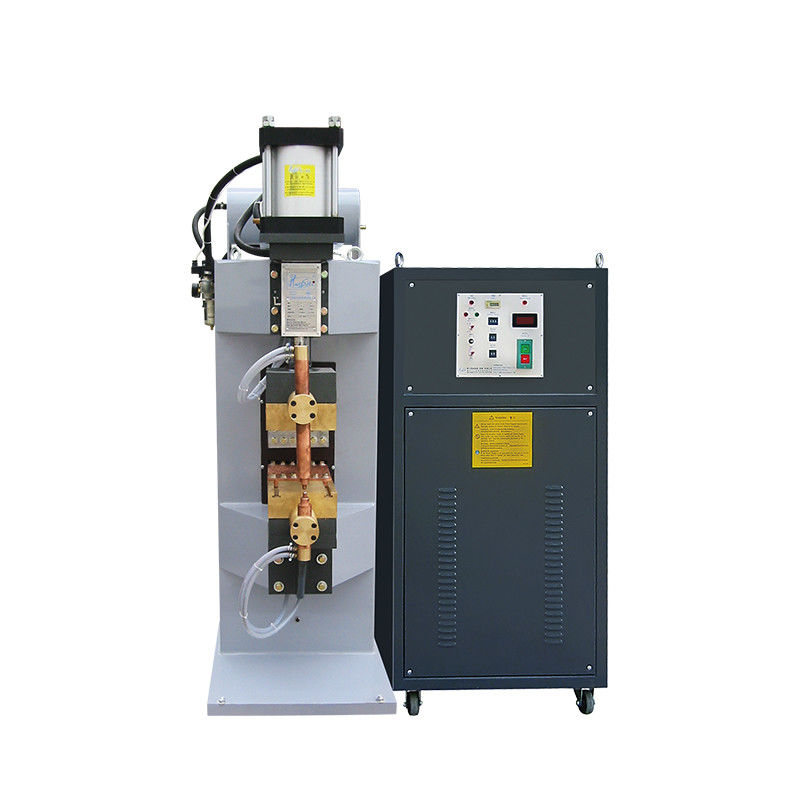

Hwashi WL-C-5K Stainless Steel Spot Welding Machine For Cook Pot Handle Bracket

5KVA Spot Welding Machine For Stainless Steel Cook Pot Handle Bracket 0

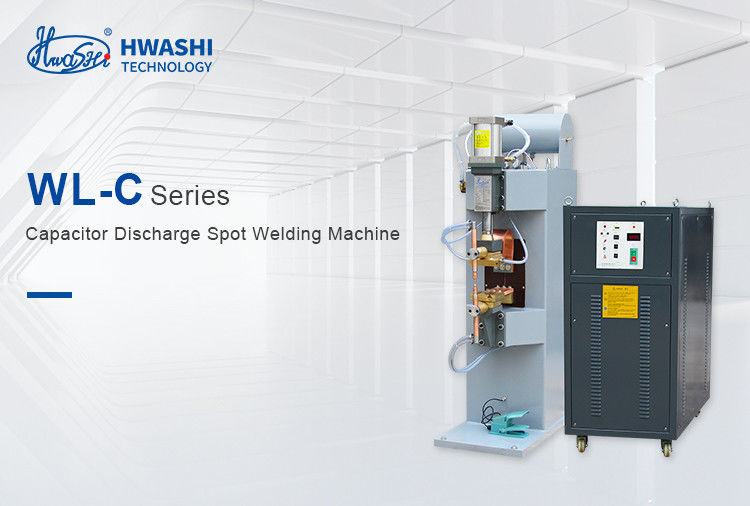

Detailed Information of The Capacitor Discharge Spot Welding Machine

A steel strip welding machine is a device used for joining, welding, or processing steel strips. They are widely used in various industries for diverse applications in production, manufacturing, and maintenance processes, ranging from construction to the manufacturing sector, as well as automotive, electronics, packaging, and other fields.

Our company produces the capacitor discharge spot welding machine which is suitable for steel strip welding within 25mm.



Features Of The Capacitor Discharge Spot Welding Machine

Versatile Application: Capable of welding nonferrous metals such as stainless steel, aluminum, titanium, silver, etc. It effectively addresses challenges in welding dissimilar metals like bronze and aluminum.

Robust and Aesthetically Pleasing: Ensures strong welds without leaving a black coating on the welding spots, eliminating the need for polishing. Particularly suitable for welding products destined for export, meeting high standards of appearance.

                                                     5KVA Spot Welding Machine For Stainless Steel Cook Pot Handle Bracket 1

Custom processing of electrodes

Customized Electrodes which will be suitable for welding material like steel, aluminium, silver, stainless steel, and nickel steel.



Energy-Efficient: The Capacitor Discharge Spot Welding Machine draws low surge power from the power grid and maintains a high power factor. In comparison to common AC machines with similar capabilities, it consumes only 1/7 to 1/10 of the power, resulting in significant energy and cost savings.

Stable welding quality: After welding, out products did not have black coating and needn't any polishing process.

Specification of The Capacitor Discharge Spot Welding Machine

Model Input Voltage Input Power Output Heat Capacitance Electrode Force Electrode Stroke Steel Belt Width
WL-C-5K 380V 5KVA 3000J 28000uF 350kg 80mm 15mm
WL-C-7K 380V 7KVA 4500J 42000uF 800kg 100mm 16-25mm
WL-C-10K 380V 10KVA 6000J 60000uF 1000kg 100mm 26-30mm
WL-C-12K 380V 12KVA 7000J 70000uF 1000kg 100mm 30-35mm
WL-C-15K 380V 15KVA 8000J 80000uF 1000kg 100mm 36-40mm
WL-C-20K 380V 20KVA 15000J 150000uF 1500kg 100mm 41-50mm

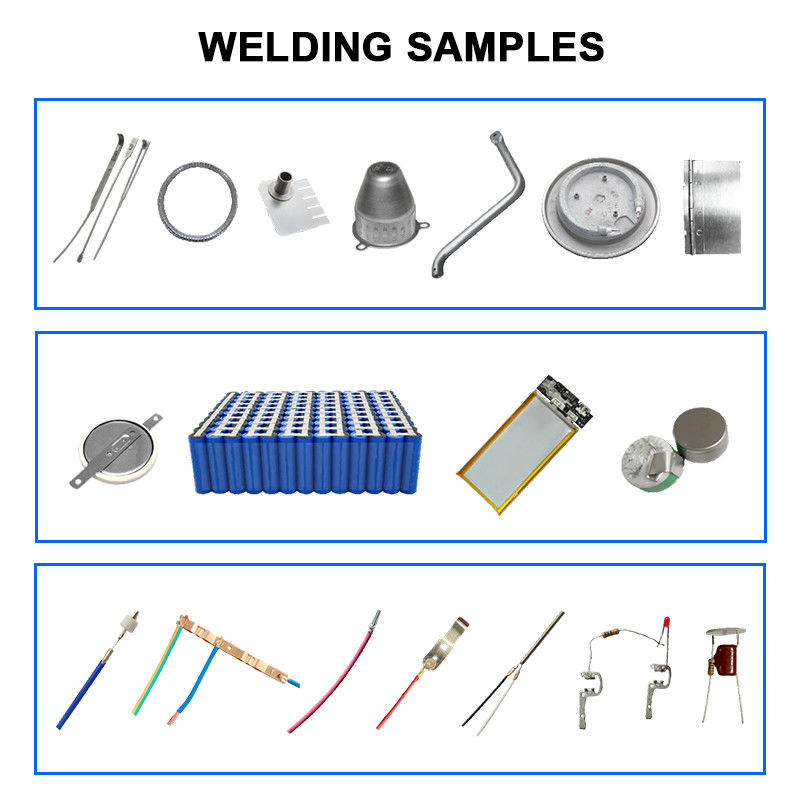

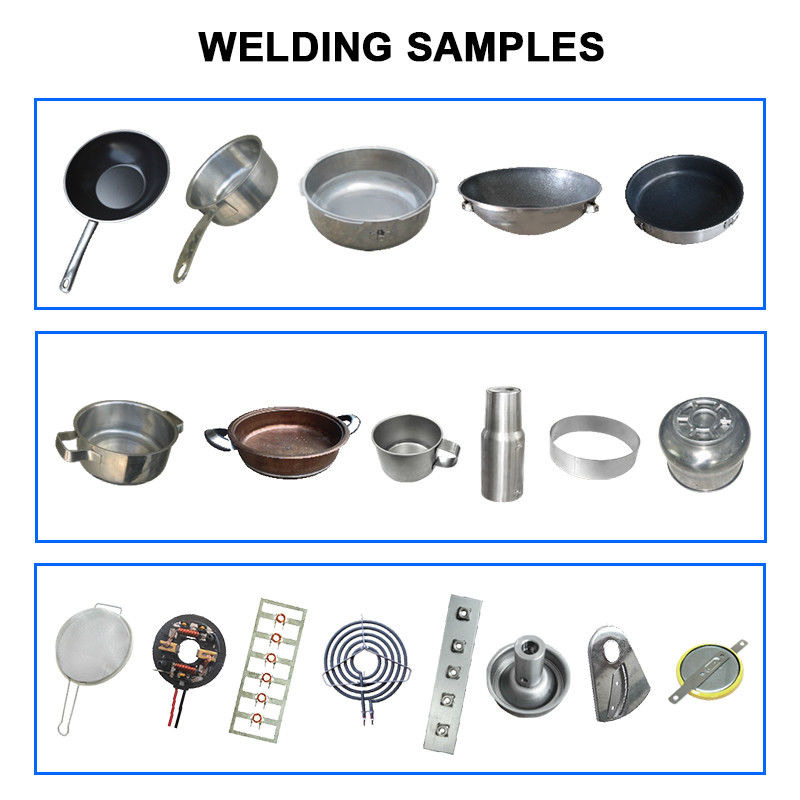

Application and Samples of The Capacitor Discharge Spot Welding Machine5KVA Spot Welding Machine For Stainless Steel Cook Pot Handle Bracket 25KVA Spot Welding Machine For Stainless Steel Cook Pot Handle Bracket 3



Machines Related TO The Capacitor Discharge Spot Welding Machine

                5KVA Spot Welding Machine For Stainless Steel Cook Pot Handle Bracket 4                                                    5KVA Spot Welding Machine For Stainless Steel Cook Pot Handle Bracket 5

Model 1

Standard Steel Belt Manual Spot Welding Machine

Model 2

Steel Belt Manual Spot Welding Machine+

 Automatic overlapping Device

      5KVA Spot Welding Machine For Stainless Steel Cook Pot Handle Bracket 6        5KVA Spot Welding Machine For Stainless Steel Cook Pot Handle Bracket 7

Model 3

Standard Steel Belt Manual Spot Welding Machine

1) Automatic Overlap Device

2) Automatic Electrode Grinder

Model 4

Fully Automatic Cookware Glass Lid Belt Welding Machine

1) Automatic Overlap Device
2) Automatic Electroder Grinder
3) Steel Belt Feeding and Cutting system
4)No need worker.



5KVA Spot Welding Machine For Stainless Steel Cook Pot Handle Bracket 85KVA Spot Welding Machine For Stainless Steel Cook Pot Handle Bracket 9

5KVA Spot Welding Machine For Stainless Steel Cook Pot Handle Bracket 10
