Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-MF-250K

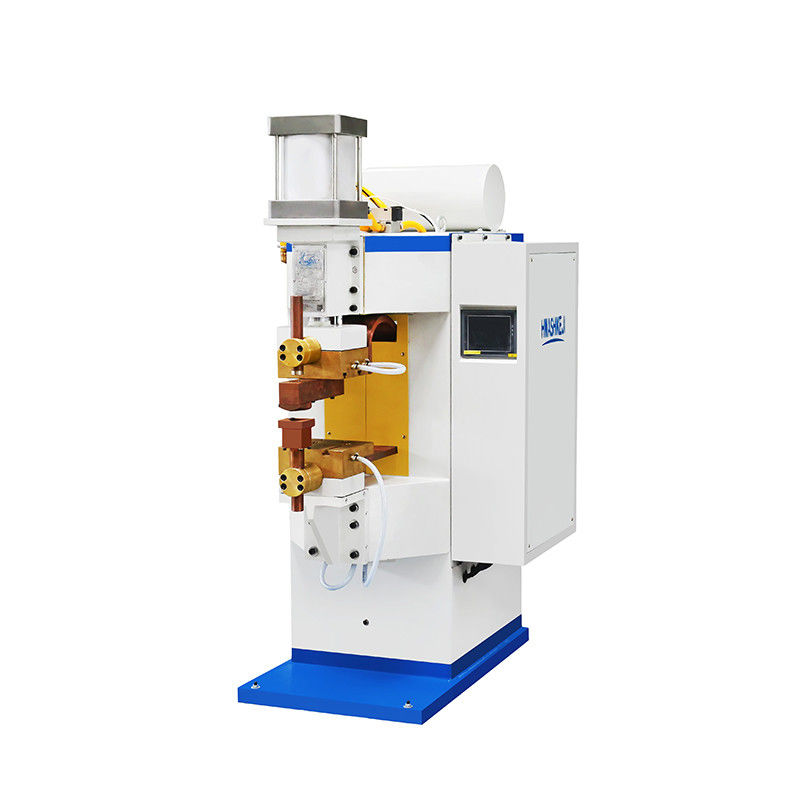

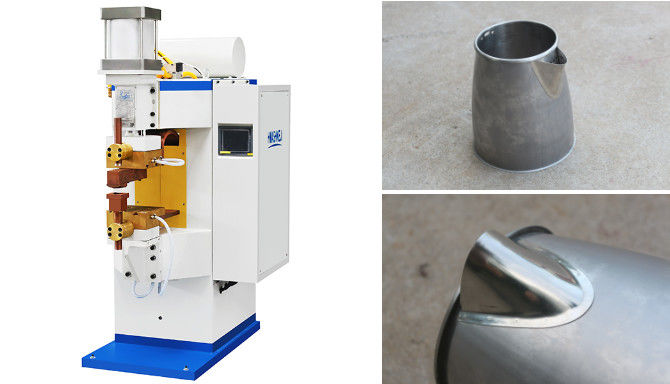

HWASHI WL-MF-250K High Effective Medium Frequency Inverter Spot Welding Machine For Water Kettle Spout
Detailed Description Of The Medium Frequency Inverter Spot Welding Machine
The Dc Welding machine adopting the latest generation of medium frequency inverter welding controller, it has many advantages such as short power-on time, high thermal efficiency, three-phase DC output, high working frequency and small transformer loss. It is suitable for welding carbon steel, stainless steel, galvanized, copper, aluminum, aluminum alloy, iron, nickel, high strength steel, hot forming steel and other metal materials. Medium frequency spot welding machine can be widely used in auto parts, auto body, aerospace, high and low voltage electrical, household appliances, elevator, hardware and furniture, new energy and other industries.
 |
Intelligent welding control system Intelligent Touch Screen Controller |
 |
Raw materials made to standard Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding |
 |
Custom processing of electrodes Customized Electrodes which will be suitable for Welding material like steel, aluminium, silver, stainless Steel, and nickel steel. |
|
|
Shape structure and welding method Design the right machine shape and mold according tothe welding product. |
Features Of The Medium Frequency Inverter Spot Welding Machine
1. Energy-saving: The power factor is as high as 0.7-0.9 (power frequency 0.4), which greatly reduces the reactive power loss. And the grid power demand is low, only 2/3 of the AC resistance welding machine; the welding time is short and the electrode life is long.
2. Accuracy Control : The inverter frequency reaches above 1000Hz, and the welding current control ability and control accuracy are 20 times higher than those of AC welding machines.
3. Great quality : The current waveform is straight, the size of the nugget is stable, the spatter is less, and the surface quality of the solder joint is good.
4. Easy Operation: Multiple sets of welding specifications can be stored and called with one key, real-time display of welding current and time, monitoring and alarm functions of welding pressure, cold water flow, and welding current.
Specifications Of The Medium Frequency Inverter Spot Welding Machine
|
Model |
Voltage |
Rated Capacity |
Max Short Circuit Current |
Duty Cycle Rate |
Electrode Force |
Electrode Stroke |
Cooling Water |
|
WL-MF-5K |
380 3PH |
5 |
1.5 |
50 |
30 |
25 |
10 |
|
WL-MF-10K |
380 3PH |
10 |
3 |
50 |
100 |
50 |
20 |
|
WL-MF-15K |
380 3PH |
15 |
4.5 |
50 |
100 |
50 |
20 |
|
WL-MF-25K |
380 3PH |
25 |
7.5 |
50 |
350 |
80 |
20 |
|
WL-MF-35K |
380 3PH |
35 |
10 |
50 |
350 |
80 |
20 |
|
WL-MF-50K |
380 3PH |
50 |
13 |
50 |
800 |
100 |
30 |
|
WL-MF-75K |
380 3PH |
75 |
18 |
50 |
800 |
100 |
30 |
|
WL-MF-100K |
380 3PH |
100 |
21 |
50 |
1000 |
100 |
30 |
|
WL-MF-120K |
380 3PH |
120 |
23 |
50 |
1000 |
100 |
30 |
|
WL-MF-160K |
380 3PH |
160 |
28 |
50 |
1000 |
100 |
30 |
|
WL-MF-200K |
380 3PH |
200 |
32 |
50 |
1500 |
100 |
30 |
|
WL-MF-250K |
380 3PH |
250 |
40 |
50 |
1500 |
100 |
50 |
|
WL-MF-300K |
380 3PH |
300 |
48 |
50 |
2000 |
100 |
50 |
|
WL-MF-350K |
380 3PH |
350 |
55 |
50 |
2000 |
100 |
60 |
|
WL-MF-400K |
380 3PH |
400 |
62 |
50 |
2000 |
100 |
60 |
|
WL-MF-500K |
380 3PH |
500 |
70 |
50 |
2000 |
100 |
60 |

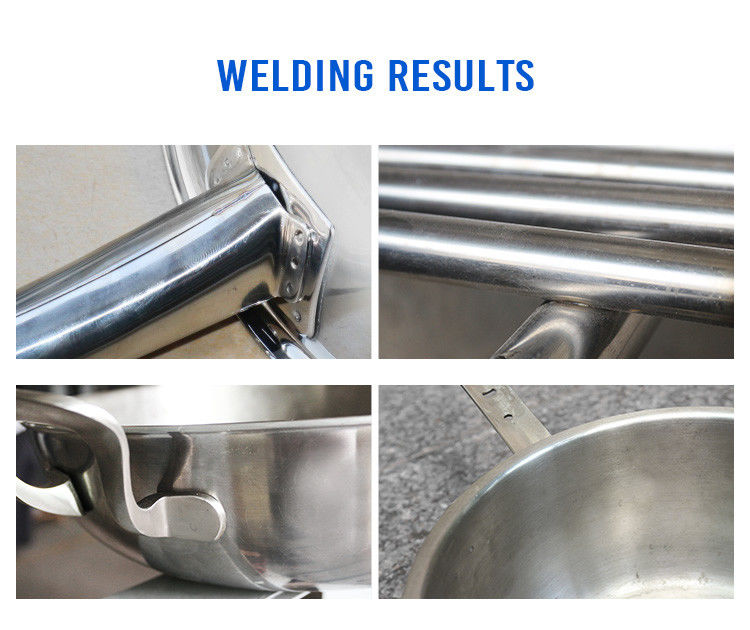

Application And Samples Of The Medium Frequency Inverter Spot Welding Machine
