HWASHI WL-MF-160K industrial Copper Carbon Steel aluminium spot welder

HWASHI WL-MF-160K industrial Copper Carbon Steel aluminium spot welder

HWASHI WL-MF-160K

aluminium spot welder

industrial spot welder

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-MF-160K

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI WL-MF-160K Medium Frequency Spot Welding Machine For Copper, Aluminum, And Carbon Steel
Application:
Welding Of Copper, Aluminum, And Carbon Steel
Size:
950x490x1675mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

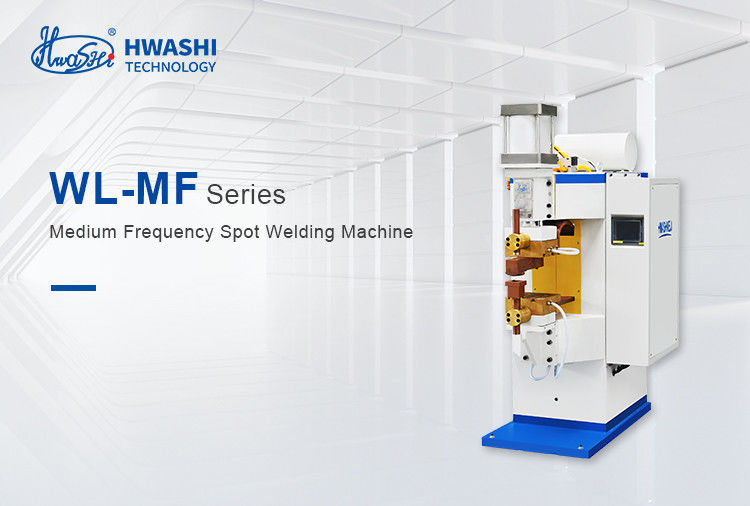

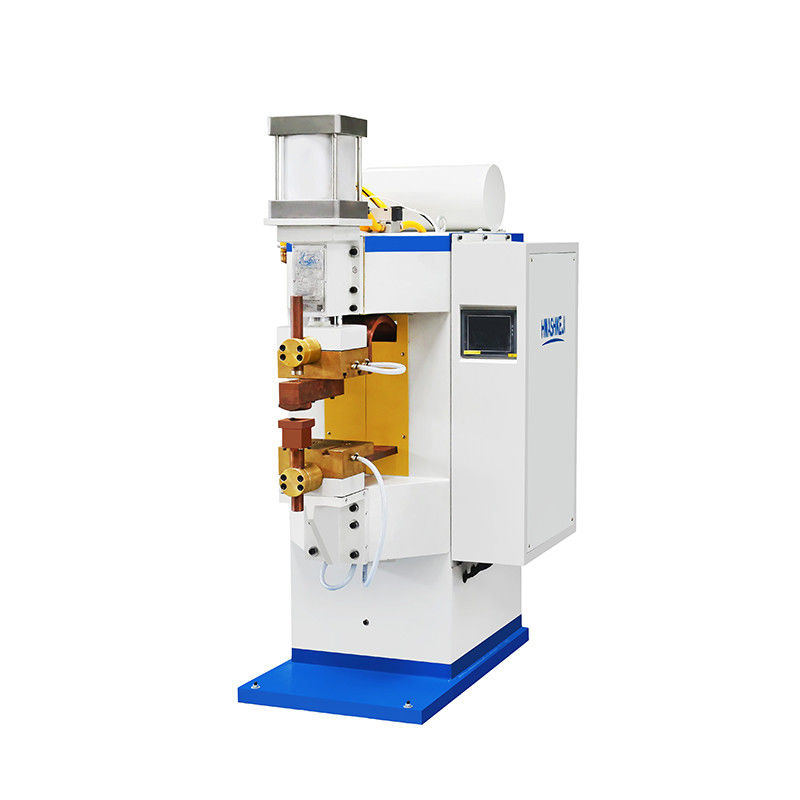

HWASHI WL-MF-160K Medium Frequency Spot Welding Machine for Copper, Aluminum, and Carbon Steel

HWASHI WL-MF-160K industrial Copper Carbon Steel aluminium spot welder 0



Detailed information of The Medium Frequency Spot Welding Machine

Medium frequency spot welding machine adopting the latest generation of medium frequency inverter welding controller, it has many advantages such as short power-on time, high thermal efficiency, high working frequency and small transformer loss. It is suitable for welding carbon steel, stainless steel, galvanized, copper, aluminum, aluminum alloy, iron, nickel, high strength steel, hot forming steel and other metal materials. Medium frequency spot welding machine can be widely used in auto parts, auto body, aerospace, high and low voltage electrical, household appliances, elevator, hardware and furniture, new energy and other industries.

HWASHI WL-MF-160K industrial Copper Carbon Steel aluminium spot welder 1

Intelligent welding control system

Intelligent Touch Screen Controller
Input and read welding parameters.

HWASHI WL-MF-160K industrial Copper Carbon Steel aluminium spot welder 2

Raw materials made to standard

Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding

HWASHI WL-MF-160K industrial Copper Carbon Steel aluminium spot welder 3

Custom processing of electrodes

Customized Electrodes which will be suitable for Welding material like steel, aluminium, silver, stainless Steel, and nickel steel.

HWASHI WL-MF-160K industrial Copper Carbon Steel aluminium spot welder 4

Shape structure and welding method

Design the right machine shape and mold according tothe welding product.



Feature of of The Medium Frequency Spot Welding Machine

1. Energy-saving: The power factor is as high as 0.7-0.9 (power frequency 0.4), which greatly reduces the reactive power loss. And the grid power demand is low, only 2/3 of the AC resistance welding machine; the welding time is short and the electrode life is long.
2. Accuracy Control : The inverter frequency reaches above 1000Hz, and the welding current control ability and control accuracy are 20 times higher than those of AC welding machines.
3. Great quality : The current waveform is straight, the size of the nugget is stable, the spatter is less, and the surface quality of the solder
joint is good.
4. Easy Operation: Multiple sets of welding specifications can be stored and called with one key, real-time display of welding current and time, monitoring and alarm functions of welding pressure, cold water flow, and welding current.



Specifications Of The Medium Frequency Spot Welding Machine

Model WL-MF-160K
Input Power (V/φ) 380/3
Rated Power (KVA) 100
Applicable Material Stainless Steel, Carbon steel, Aluminum
Max Short Circuit Current (KA) 21
Electrode Force (KG) 1000
Electrode Stroke (MM) 100
Dimension(L*W*H) 950mm*800mm*1675mm
Warranty
1 years

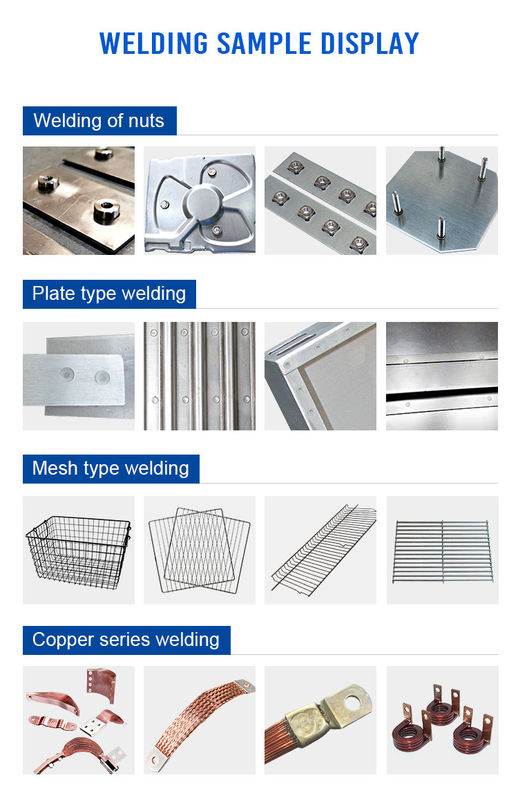

Application And Samples Of The Medium Frequency Spot Welding Machine

HWASHI WL-MF-160K industrial Copper Carbon Steel aluminium spot welder 5

HWASHI WL-MF-160K industrial Copper Carbon Steel aluminium spot welder 6

HWASHI WL-MF-160K industrial Copper Carbon Steel aluminium spot welder 7HWASHI WL-MF-160K industrial Copper Carbon Steel aluminium spot welder 8HWASHI WL-MF-160K industrial Copper Carbon Steel aluminium spot welder 9HWASHI WL-MF-160K industrial Copper Carbon Steel aluminium spot welder 10
