Medium Frequency DC Spot Welding Machine For Copper Relay / Shunt Electrical

Medium Frequency DC Spot Welding Machine For Copper Relay / Shunt Electrical

spot welding machine for copper

dc spot welding machine

spot welding machine dc

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-MF-50K

Contact Us
Request A Quote
Product Details
Product Name:
Medium Frequency DC Welding Machine For Electrical Copper Relay / Shunt
Application:
Weld Aluminum, Galvanized And Copper Material Product
Size:
950x490x1675*mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
350kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

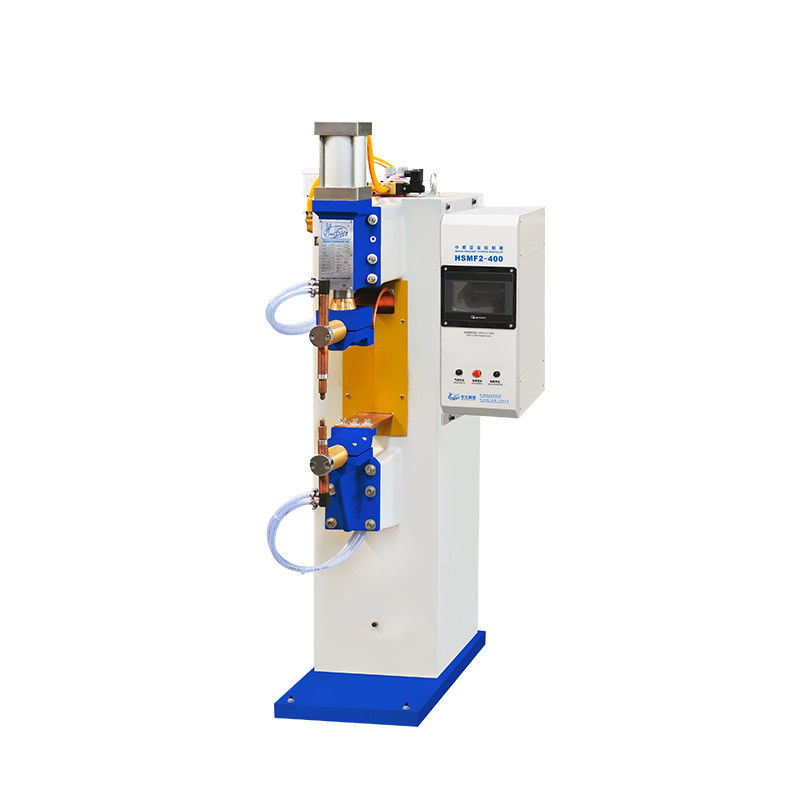

 Medium Frequency DC Welding Machine for Electrical Copper Relay / ShuntMedium Frequency DC Spot Welding Machine For Copper Relay / Shunt Electrical 0

Description Of Medium Frequency DC Welding Machine

MF DC Spot Welder is one of the newest resistant welding technology.

The advantage is that it helps to greatly reduce the energy of iron core material, as the frequency of welding transformer is promoted from 50/60Hz of mains supply to 1000Hz.

Besides, the commutation diode of subloop of transformer could transform the electric energy into DC power which is used to provide power for welding.

Under such circumstance, the inductance coefficient of subloop could be improved dramatically and the production cost could be minimized because the inductance coefficient is an important factor that results in energy loss but could almost be ignored in DC welding circuit.

Medium Frequency DC Spot Welding Machine For Copper Relay / Shunt Electrical 1

Intelligent welding control system

Intelligent Touch Screen Controller
Input and read welding parameters.

Medium Frequency DC Spot Welding Machine For Copper Relay / Shunt Electrical 2

Raw materials made to standard

Thicker Copper Plate or Copper Belt
To ensure stable conductivity in welding



     Medium Frequency DC Spot Welding Machine For Copper Relay / Shunt Electrical 3

Custom processing of electrodes

Customized Electrodes which will be suitable for Welding material like steel,, silver, stainless Steel, and nickel steel.

Feature Of Medium Frequency DC Welding Machine

1) Advanced welding machine, adopt principle of MF inverter . Change the three phase AC power into DC power.

2) Welding current is DC , no inductance , higher heat input and output efficiency , more reliable and stable welding quality.

3) Intelligent digital controller, more precise and faster control of the welding current. The adjustment precision is 20 times higher than the AC machine.

4) Reduce the production cost, save energy, reduce the requirement for cables and maintenance cost, improve the induction factor.

5) Store energy in a special inverter, more adaptation to the fluctuation of the power grid.

6) Smaller size and lower weight of welding transformer, one third of the AC machine .

7) Be able to weld aluminum and galvanized material product.

8) Especially suitable for welding three-layer metal sheet or very thin product.



Specification Of Medium Frequency DC Welding Machine

Items Specification
Display 5 Inches Blue Display Screen
Rated Power 50KVA
Input Voltage AC 380V, 50Hz
Duty Cycle Rate 20%
Maximum Short Circuit Current 25000A
Inverter Frequency 1000Hz
Welding Cycle Period 11
Welding Pulse Times 3
Current Slow Rise And Down Control Yes
Stored Welding Models 20
Throat Depth 300mm
Cylinder Size ¢100x100mm

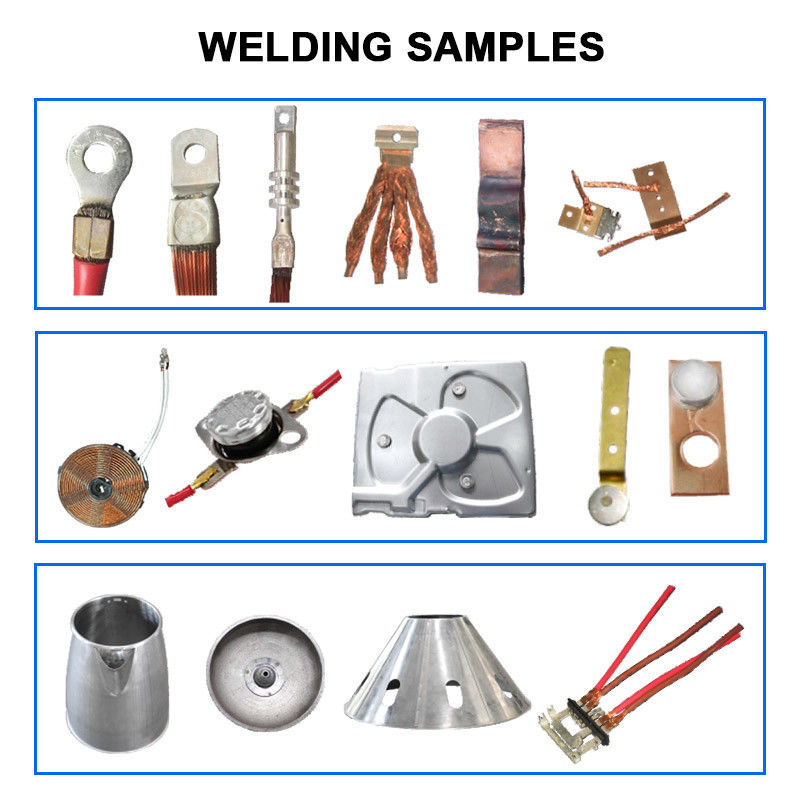

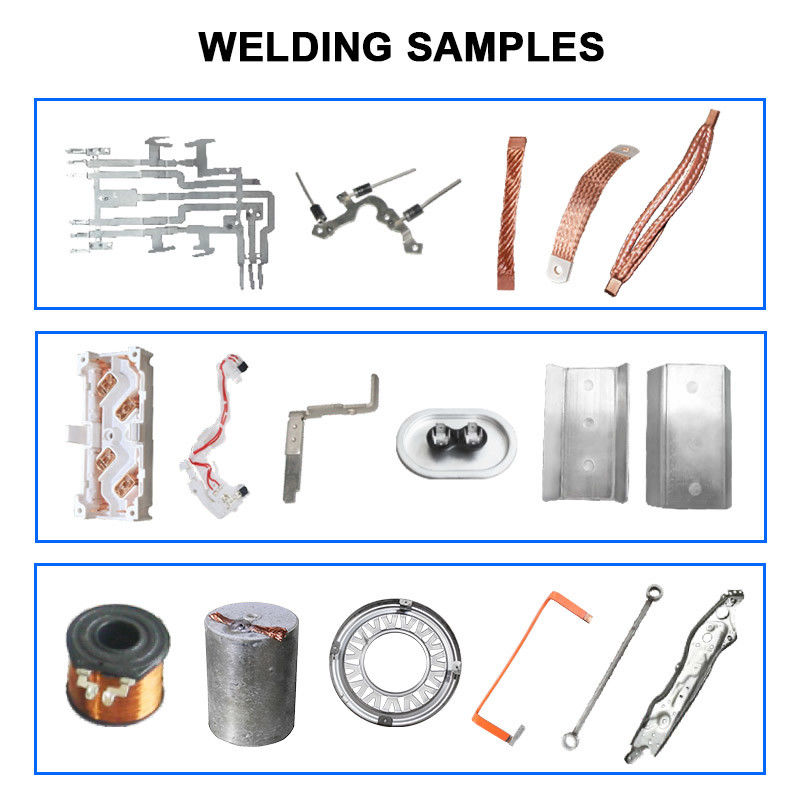

Application And Samples Of Medium Frequency DC Welding Machine

Sensor, LED and its lead, copper foil and vanished wire, relay, watch, capacitive slug and lead, copper wire, resistance pin, inductance, battery and stabilizer link, socket, welding lightning with tungsten and molybdenum material, silver contact and copper sheet, etc..

Medium Frequency DC Spot Welding Machine For Copper Relay / Shunt Electrical 4

Medium Frequency DC Spot Welding Machine For Copper Relay / Shunt Electrical 5

Medium Frequency DC Spot Welding Machine For Copper Relay / Shunt Electrical 6Medium Frequency DC Spot Welding Machine For Copper Relay / Shunt Electrical 7





Medium Frequency DC Spot Welding Machine For Copper Relay / Shunt Electrical 8
