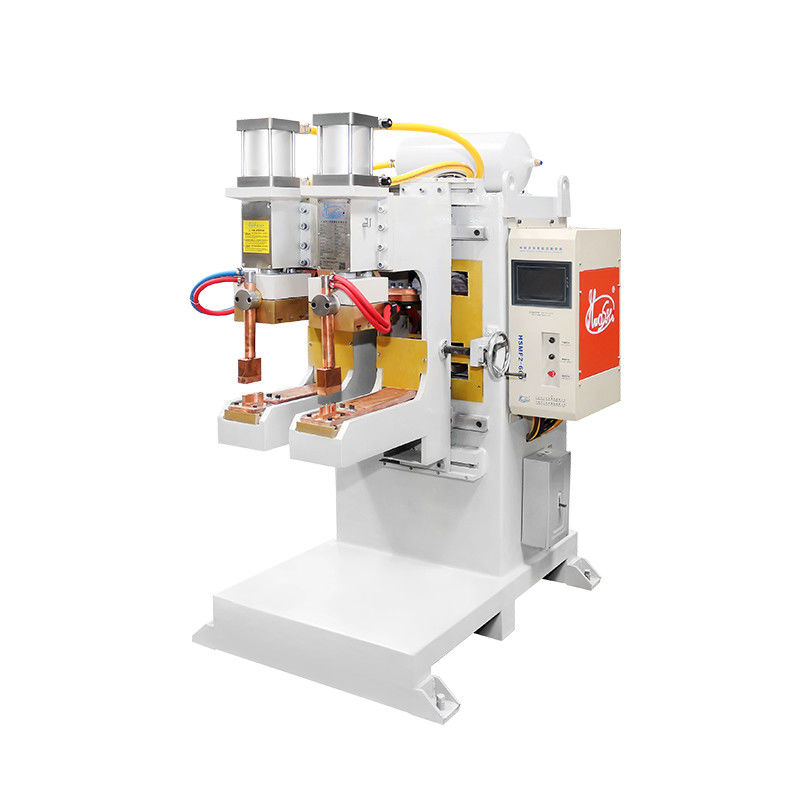

1000Hz Medium Frequency DC Copper Spot Welding Machine For Copper Plate Welding 90KVA

1000Hz Medium Frequency DC Copper Spot Welding Machine For Copper Plate Welding 90KVA

copper spot welding machine

copper spot welder

spot welding machine 90KVA

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-MF-90K

Contact Us
Request A Quote
Product Details
Product Name:
1000Hz Medium Frequency DC Welding Machine For Copper Plate Welding
Application:
Welding For Copper Plate Welding
Size:
480x900x1600*mm
Condition:
New
Warranty:
12 Months
Service Life:
8-10 Years
Standard:
CE/CCC/ISO
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

1000Hz Medium Frequency DC Welding Machine for Copper Plate Welding

1000Hz Medium Frequency DC Copper Spot Welding Machine For Copper Plate Welding 90KVA 0

DESCRIPTION of 1000Hz Medium Frequency DC Welding Machine for Copper Plate Welding

1000Hz Medium Frequency DC Welding Machine for Copper Plate Welding is a set of advanced welding equipment. The three-phase power supply, through rectified by a special inverter, is converted into 1000Hz AC voltage and then is transmitted to a medium frequency transformer so the current is rectified in order to supply DC welding current. The advantage is that it helps to greatly reduce the energy of iron core material, as the frequency of welding transformer is promoted from 50/60Hz of mains supply to 1000Hz. Besides, the commutation diode of subloop of transformer could transform the electric energy into DC power which is used to provide power for welding. Under such circumstance, the inductance coefficient of subloop could be improved dramatically and the production cost could be minimized because the inductance coefficient is an important factor that results in energy loss but could almost be ignored in DC welding circuit.

1000Hz Medium Frequency DC Copper Spot Welding Machine For Copper Plate Welding 90KVA 1

Intelligent welding control system

Intelligent Touch Screen Controller
Input and read welding parameters.

1000Hz Medium Frequency DC Copper Spot Welding Machine For Copper Plate Welding 90KVA 2

Raw materials made to standard

Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding

1000Hz Medium Frequency DC Copper Spot Welding Machine For Copper Plate Welding 90KVA 3

Custom processing of electrodes

Customized Electrodes which will be suitable for Welding material like steel,

aluminium, silver, stainless Steel, and nickel steel.

1000Hz Medium Frequency DC Copper Spot Welding Machine For Copper Plate Welding 90KVA 4

Shape structure and welding method

Design the right machine shape and mold according tothe welding product.



SPECIFICATION of 1000Hz Medium Frequency DC Welding Machine for Copper Plate Welding

Items

Specification

Display

5 Inches Blue Display Screen

Rated Power

90KVA

Input Voltage

AC 380V, 50Hz

Maximum Short Circuit Current

21000A

Inverter Frequency

1000Hz

Welding Cycle Period

11

Welding Pulse Times

3

Current Slow Rise And Down Control

Yes



APPLICATION of 1000Hz Medium Frequency DC Welding Machine for Copper Plate Welding

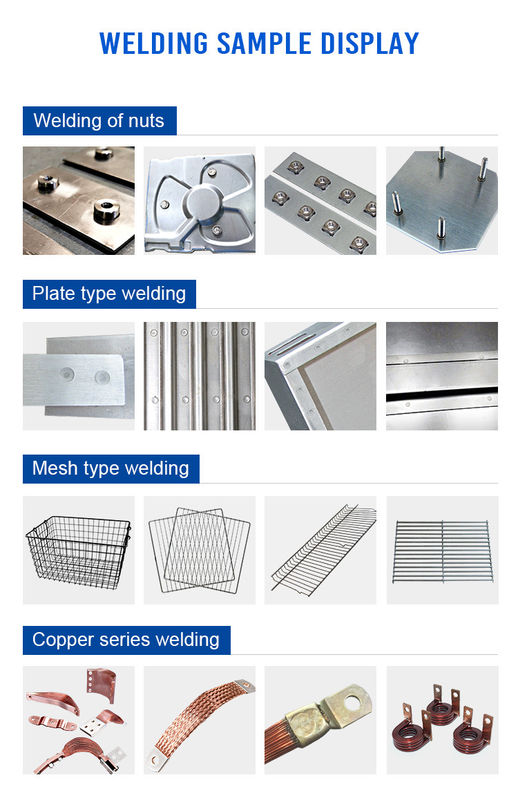

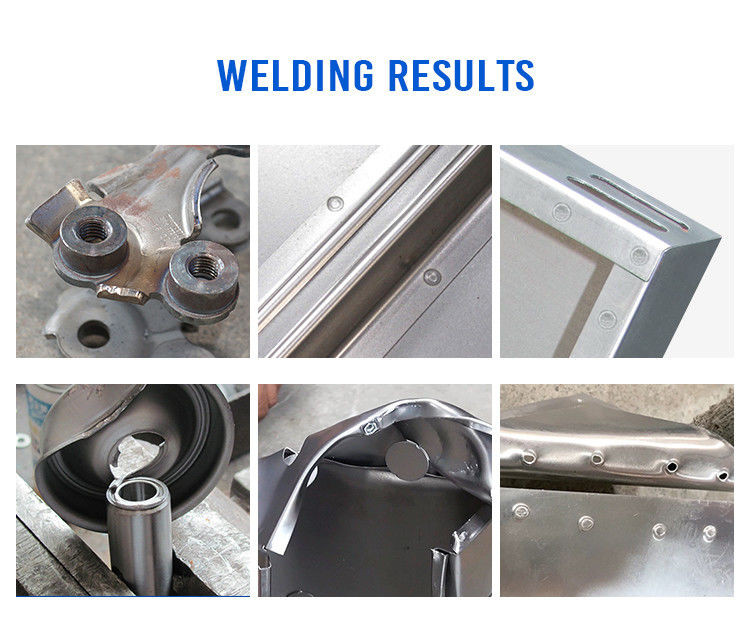

It is widely used in welding all kinds of metal, especially suitable for welding copper and aluminum etc.

1000Hz Medium Frequency DC Copper Spot Welding Machine For Copper Plate Welding 90KVA 51000Hz Medium Frequency DC Copper Spot Welding Machine For Copper Plate Welding 90KVA 6



Features of 1000Hz Medium Frequency DC Welding Machine for Copper Plate Welding

  • Energy Saving: Compared with using AC power.
  • Reduce the parallel connection in secondary circuit.
  • Improve the power factor, reduce the production cost.
  • To make the power supply unit load balance.
  • Reduce operation cost, including saving the energy of each spot welding.
