Automatic Industrial Heavy Duty Spot Welding Machine Medium Frequency For Stainless Steel Plate

Automatic Industrial Heavy Duty Spot Welding Machine Medium Frequency For Stainless Steel Plate

automatic spot welding machine

heavy duty spot welding machine

industrial spot welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-MF-50K

Contact Us
Request A Quote
Product Details
Product Name:
Energy Saving Industrial Medium Frequency Spot Welding Machine For Welding Of Stainless Steel Plate
Size:
480x900x1600mm
Condition:
New
Standard:
CE/CCC/ISO
Application:
Welding Of Stainless Steel Plate
Weight:
350kg
Warranty:
12 Months
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

Energy Saving Industrial Medium Frequency Spot Welding Machine For Welding Of Stainless Steel Plate



Automatic Industrial Heavy Duty Spot Welding Machine Medium Frequency For Stainless Steel Plate 0



Description of Energy Saving Industrial Medium Frequency Spot Welding Machine For Welding Of Stainless Steel Plate

Medium frequency inverter DC spot welder Adopting the latest generation of medium frequency inverter welding controller, it has many advantages such as short power-on time, high thermal efficiency, three-phase DC output, high working frequency and small transformer loss. It is suitable for welding carbon steel, stainless steel, galvanized, copper, aluminum, aluminum alloy, iron, nickel, high strength steel, hot forming steel and other metal materials. Medium frequency spot welding machine can be widely used in auto parts, auto body, aerospace, high and low voltage electrical, household appliances, elevator, hardware and furniture, new energy and other industries.



Features of Energy Saving Industrial Medium Frequency Spot Welding Machine For Welding Of Stainless Steel Plate

1. Three-phase power supply, grid balance, small impact on the grid
The power factor is as high as 0.7-0.9 (power frequency 0.4), which greatly reduces the reactive power loss.
2. Significantly improved welding control accuracy
The inverter frequency reaches above 1000Hz, and the welding current control ability and control accuracy are 20 times higher than those of AC welding machines.
3. Great leap in welding quality
The current waveform is straight, the size of the nugget is stable, the spatter is less, and the surface quality of the solder joint is good.
4. Save basic investment and save energy
The grid power demand is low, only 2/3 of the AC resistance welding machine; the welding time is short and the electrode life is long.
5. Human-computer interface, easy to operate
Multiple sets of welding specifications can be stored and called with one key, real-time display of welding current and time,

monitoring and alarm functions of welding pressure, cold water flow, and welding current.

Automatic Industrial Heavy Duty Spot Welding Machine Medium Frequency For Stainless Steel Plate 1

Intelligent welding control system

Intelligent Touch Screen Controller
Input and read welding parameters.

Automatic Industrial Heavy Duty Spot Welding Machine Medium Frequency For Stainless Steel Plate 2

Raw materials made to standard

Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding

Automatic Industrial Heavy Duty Spot Welding Machine Medium Frequency For Stainless Steel Plate 3

Custom processing of electrodes

Customized Electrodes which will be suitable for Welding material like steel,

aluminium, silver, stainless Steel, and nickel steel.

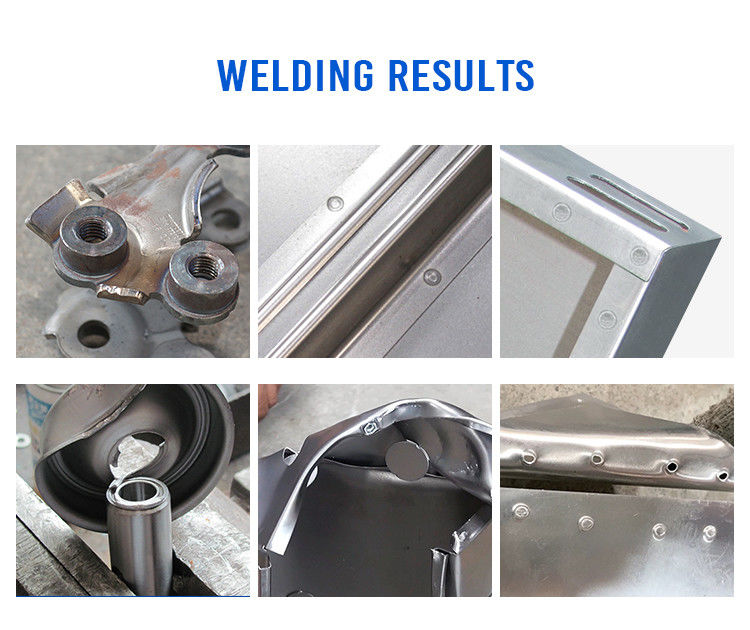

Application of Energy Saving Industrial Medium Frequency Spot Welding Machine For Welding Of Stainless Steel Plate



Automatic Industrial Heavy Duty Spot Welding Machine Medium Frequency For Stainless Steel Plate 4Automatic Industrial Heavy Duty Spot Welding Machine Medium Frequency For Stainless Steel Plate 5



Sensor, LED and its lead, copper foil and vanished wire, relay, watch, capacitive slug and lead, copper wire, resistance pin, inductance, battery and connecting link, socket, silver contact and copper sheet, welding lightning with tungsten and molybdenum material, etc.



Competitive Advantage of Energy Saving Industrial Medium Frequency Spot Welding Machine For Welding Of Stainless Steel Plate

Automatic Industrial Heavy Duty Spot Welding Machine Medium Frequency For Stainless Steel Plate 6



1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. 12 months warranty.

4. 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Just-in-time delivery.

6. Prompt Response to Customers.


Specification of Energy Saving Industrial Medium Frequency Spot Welding Machine For Welding Of Stainless Steel Plate



Items Specification
Display 5 Inches Blue Display Screen
Rated Power 50KVA
Input Voltage AC 380V, 50Hz
Duty Cycle Rate 20%
Maximum Short Circuit Current 25000A
Inverter Frequency 1000Hz
Welding Cycle Period 11

Automatic Industrial Heavy Duty Spot Welding Machine Medium Frequency For Stainless Steel Plate 7Automatic Industrial Heavy Duty Spot Welding Machine Medium Frequency For Stainless Steel Plate 8
