Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-SP-50K

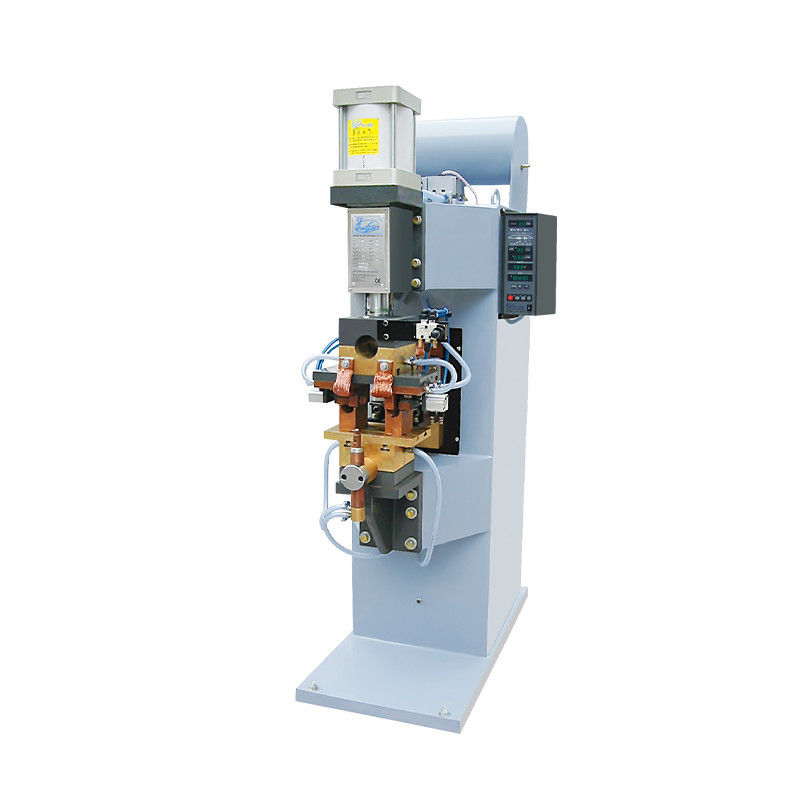

Hwashi Pneumatic Ac Pulse Spot Welding Machine for Iron wire products
Description of Hwashi Pneumatic Ac Pulse Spot Welding Machine for Iron Wire Products
Pneumatic AC pulse spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved. It can be used to weld 10mm of iron and metals like stainless steel. Applicable to all kinds of hardware. Powerful and strong welding current and precise current control. In order to welding different thickness of products, conduction angle of silicon controlled rectifier is divided into 1000 parts for asjusting. Using digital integrated circuit control, strong anti-interference ability, stable and reliable work. Control circuit calls the built-in voltage fluctuation compensation circuit, which can guarantee the power supply fluctuation within + 15% range in a timely manner to make current compensation, ensure stable welding current.
Intelligent welding control system
Intelligent Touch Screen Controller
Input and read welding parameters.
Raw materials made to standard
Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding
Custom processing of electrodes
Customized Electrodes which will be suitable for Welding material like steel,
aluminium, silver, stainless Steel, and nickel steel.
Specification of Hwashi Pneumatic Ac Pulse Spot Welding Machine for Iron Wire Products
| Model | Voltage | Power |
Secondary Current |
Pressurization |
Electrode Stroke |
Closure |
Platform Distance |
Electrode Distance |
Cooling Water |
| V | KVA | A | Kg | mm | mm | mm | mm | Lit/min | |
| WL-SP-25K | 380/1 | 25 | 12000 | 300 | 80 | 145-225 | 250 | 320-420 | 6 |
| WL-SP-50K | 380/1 | 50 | 19500 | 500 | 80 | 145-225 | 250 | 320-420 | 6 |
| WL-SP-75K | 380/1 | 75 | 24000 | 1000 | 100 | 130-230 | 260 | 490-540 | 8 |
Features of Hwashi Pneumatic Ac Pulse Spot Welding Machine for Iron Wire Products
Application of Hwashi Pneumatic Ac Pulse Spot Welding Machine for Iron Wire Products
Iron wire products, hardware decorative lighting, kitchen utensils, automobile industry, small household appliances, small hardware, etc.
Competitive Advantage of Hwashi Pneumatic Ac Pulse Spot Welding Machine for Iron Wire Products
