Name: High Speed XY Axis Automatic Wire Mesh Welding Machine for 1000mm X 1000mm Security Fence Panels
Brand: Guangdong Hwashi Technology inc.
SKU: WL-CD-50K
Price: 225,000.00 USD
Availability: InStock

Home > Products > Automatic Wire Shelf Welding Machine >

High Speed XY Axis Automatic Wire Mesh Welding Machine for 1000mm X 1000mm Security Fence Panels

High Speed Wire Mesh Welding Machine

XY Axis Automatic Wire Welder

1000mm X 1000mm Security Fence Panel Welder

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-CD-50K

Request A Quote

Product Details

Product Name:

Hwashi Automobile Gas Storage Tank End Cap Nut Welding Machine

Warranty:

12 Months

Condition:

New

Service Life:

8-10 Years

Electrode Force:

1500KG

Eletrode Stroke:

100mm

Output Heat:

10000

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C,,T/T

Supply Ability

50 sets per month

High Speed Automatic Wire Shelf Welding Machine with Automated Wire Feeding and Precise Welding Control for Shelf Fabrication

Get Best Price

Video

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

Get Best Price

Video

Hwashi CNC-Controlled Spot Welding Machine for High-Volume Refrigerator Wire Rack Production with Water Cooling System

Get Best Price

Video

Hwashi Automatic Wire Mesh Spot Welding Machine with 6-16 Independently Controllable Welding Heads, PLC-Based Control System, and IGBT Inverter Power Supply

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

XY Axis High Speed Full Automatic Security Fence Panel Wire Mesh Welder

Product Overview

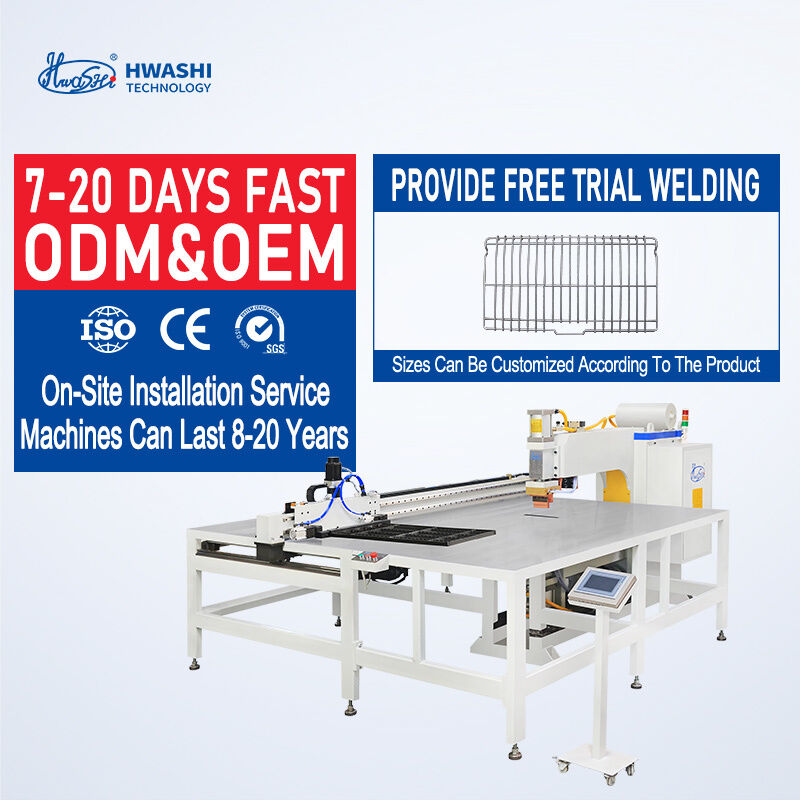

This advanced XY axis wire welding machine features a single-head long arm welding structure with automated workpiece molds that move along X and Y axes. Program welding positions, current settings, and other parameters for fully automatic operation. Simply load materials manually and remove finished workpieces. Ideal for welding mesh panels up to 1000mm * 1000mm.

Technical Specifications

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Welding Thickness (MM)	1-5mm
Warranty	1 year
Mesh Welding Range	1000mm * 1000mm

Advanced XY Axis Automation System

The XY axis mold frame is driven by servo motors with synchronous belt drive, with walking step length and speed precisely controlled by the industrial control system. When materials are fixed on the mold frame and the switch is activated, the system automatically completes welding at all joint positions through alternating X and Y axis movements, then returns to origin upon completion.

Key Performance Features

Dual-axis control for pinpoint welding accuracy at every wire intersection
High-speed production with capacity for hundreds of welds per minute
Versatile compatibility with square mesh, rectangular mesh, and custom patterns
Reduced labor costs through automated operation and simultaneous material preparation
Optimized welding parameters for consistent joint strength and quality
Ideal for large-scale security fencing projects and high-volume production

Industrial Applications

Specifically designed for security fencing manufacturing, this machine delivers the efficiency, precision, and automation required for producing high-quality, durable fencing solutions. Its advanced technology and exceptional performance make it ideal for manufacturers needing to meet tight deadlines while maintaining superior weld quality across various mesh configurations.
