500-1000kg Maximum Load High Capacity Wire Mesh Welding Machine with 2-10 Welding Spot Number

Place of Origin:

China

Brand Name:

Hwashi

Certification:

Request A Quote

Product Details

Welding Temperature:

High

Machine Type:

Wire Mesh Welding Machine

Input Current:

300A

Standard:

CE/CCC/ISO

Cooling System:

Water Cooling

After-Sales Service Provided:

Engineers Available To Service Machinery Overseas

Dimensions:

1900*1000*1000mm

Current:

10000A

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

T/T, L/C

Supply Ability

10 sets/month

Steel Wire Mesh Spot Welding Machine Refrigerator Wire Shelf Multipoint Spot Welding Machine

Get Best Price

Video

Automatic Multi-Point Spot Welding Machine for Refrigerator Wire Shelves & Steel Mesh Grids

Get Best Price

Video

Hwashi Automated Steel Mesh Welding Equipment | Heavy-Duty Refrigerator Shelf Manufacturing Solution

Get Best Price

Video

Hwashi CNC-Controlled Spot Welding Machine for High-Volume Refrigerator Wire Rack Production

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

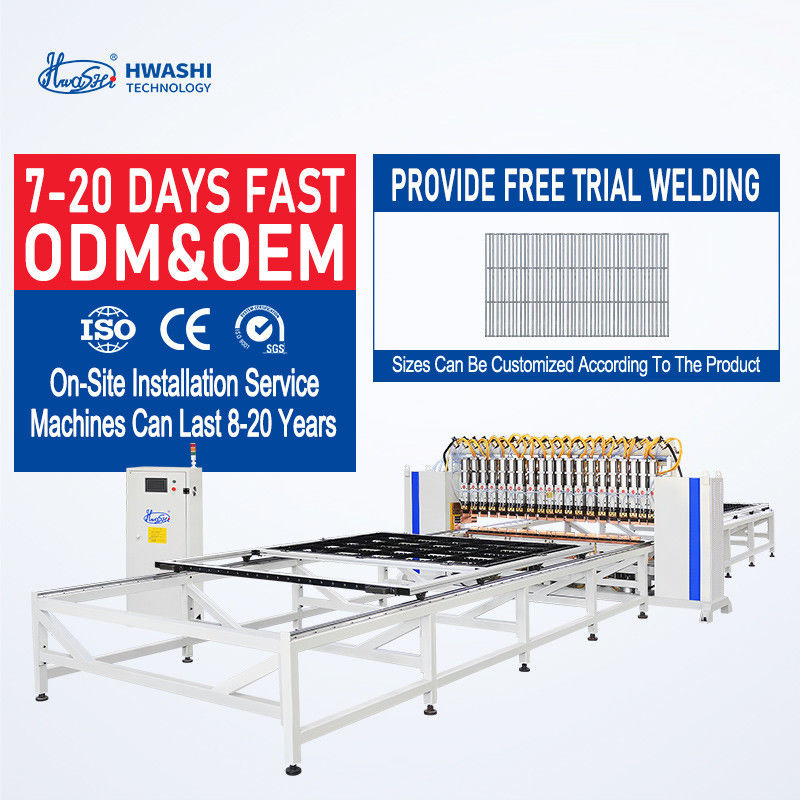

500-1000kg Maximum Load High Capacity Wire Mesh Welding Machine with 2-10 Welding Spot Number

500-1000kg Maximum Load High Capacity Wire Mesh Welding Machine with 2-10 Welding Spot Number 0

DETAILED DESCRIPTION wire welding machine adopts a single-head long arm type welding structure, equipped withwork piece molds that move along the X and Y axis automatically. Input coordinatedata ofwelding position, welding current and other data to realize autormatic welding.Just need to load the material manually and take out the work piece. lt is suitable for the welding ofthe mesh with in the range of 1000mm X 1000mm.FEATURES 1.Adaptable to stainless steel/galvanized wires (width: 2000–2800 mm) with PLC-controlled welding cycles. Includes Turkish-language interface and CE certification2.Designed for cold storage applications, this AC-powered machine supports 12–15 cycles/minute with frost-resistant components. Compliant with GOST standards 3.Handles 4–8 mm wires with diamond-coated electrodes for humid environments. Includes Portuguese manuals and local technical support.4.Compact desktop design with air/water cooling options. Customizable templates for barbecue grills and security mesh, popular in Turkish markets.

			Model

			WL-TSP-100/150K

			Input Power (V/φ)

			380/3

			Rated Power (KVA)

			100/150

			Applicable Material

			Stainless Steel, Carbon steel, Aluminum, Metal

			Electrode Force (KG)

			250-400

			Wleding Thickness (MM)

			1-5mm

			Warranty

			1 years

			Mesh Welding Range

			1000mm X 1000mm

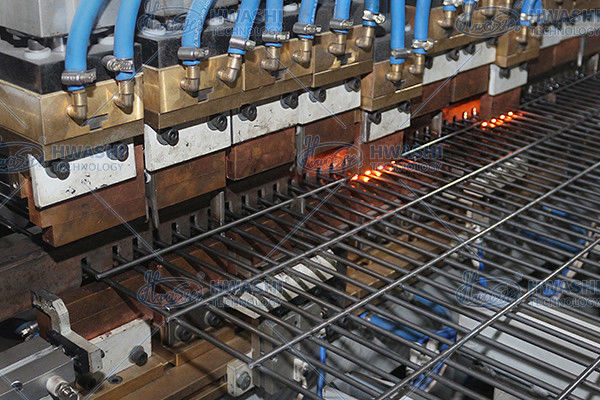

XY axis automatic moving wire welding machineThe XY axis mold frame is driven by servo motor with synchronous belt drive, and the walking step length and speed are controlled by the control system. When the manual material is fixed on the mold frame, the switch is activated and controlled by the industrial control computer, the product will walk alternately with the X and Y axes of the mold frame to automatically complete the welding of each part of the joints, and will automatically return to the origin when the welding is completed, without the need for manual operation by other personnel. At the same time, the operator can set up the material to prepare for the next welding work, which not only reduces the labor cost, but also effectively uses the welding time to set up the material.

Intelligent welding control system

Automatic welding by inputting coordinate data of welding position, welding current and other data.

Welding Heads and Fixtures

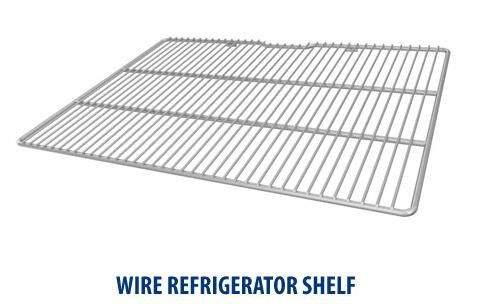

Processing and design according to the drawings of each wire shelf product. (customized)

Automatic Wire Filling System

You can put the precut straight wires into the hopper, then the wire filling machine will do the wire filling into the fixture automatically. It helps to increase the working efficiency and reduce labor force.

Automatic Double-layer Feeder

when one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased.

Production Line Machines

Wire Flattening and Cutting Machine

This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.

Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.

High Speed Wire Straightenign and Cutting Machine

This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.

Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.

2D Wire Handle Bending Machine

This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

3D Wire Bending Machine

This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.
