Hwashi Automatic 304 Stainless Steel Sink Rolling Seam Welding Machine CNC Sink Welding Machine/Undermount Kitchen Sink

Place of Origin:

CE/CCC/ISO

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Request A Quote

Product Details

Application:

Welding For Kitchen Sink

Rated Capacity:

160kVA

Forming Time:

1min

Single Gross Weight:

65.000kg

Input Power:

Single-Phase 380V10% 50Hz

Usage:

Sink Welding

Consumption Of Cooling Water:

1000L/H

Standard:

CE/CCC/ISO

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Hwashi Inox SS304 Kitchen Double Sink Seam Welding Machine and Stainless Steel CNC Sink Polishing Machine Grinder

Get Best Price

Video

90 Degree Stainless Steel Sink Welding Machine with 50mm Grinding Wheel

Get Best Price

Video

50Hz Professional Electric Sink Welding Machine For Stainless Steel Sinks

Get Best Price

Video

90 Degree Angle Automatic Electric Steel Sink Welding Machine / Sink Welder 5KW 50Hz CE

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

Hwashi Automatic 304 Stainless Steel Sink Rolling Seam Welding Machine CNC Sink Welding Machine/Undermount Kitchen Sink

Product Description

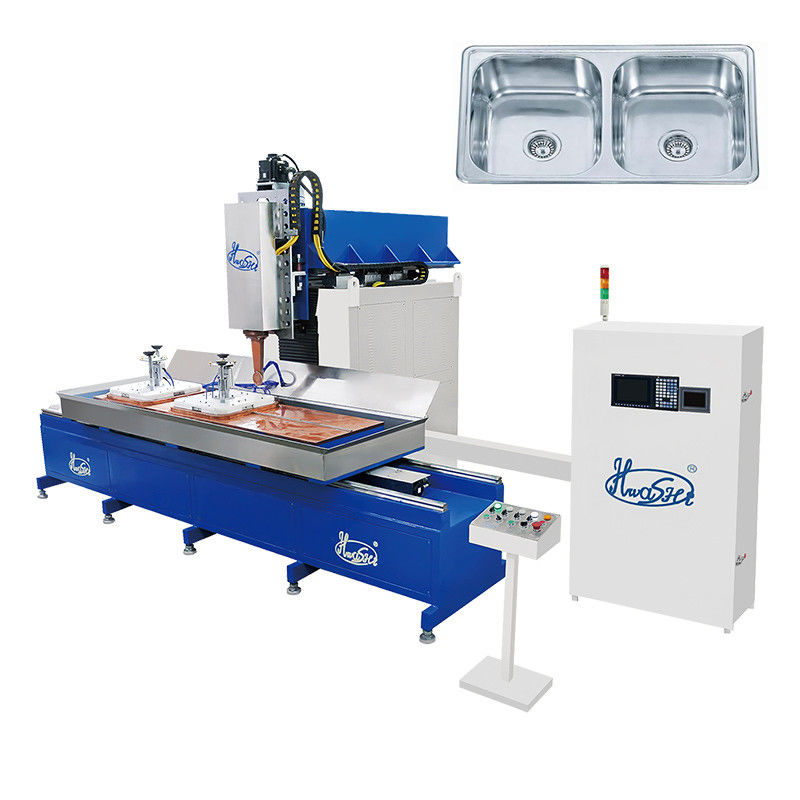

CNC 3 Axis Control Stainless Steel Kitchen Sink Seam Welding Machine is a method that uses a pair of roller electrodes instead of the cylindrical electrodes of spot welding, and the welded workpiece moves between the rollers to produce a sealed weld with a molten core overlapping each other to weld the workpiece together.

Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Suitable for welding the sink within the range of 1600x700x300mm. (customized)

Suitable for welding the sink within the range of 1600x700x300mm. (customized)

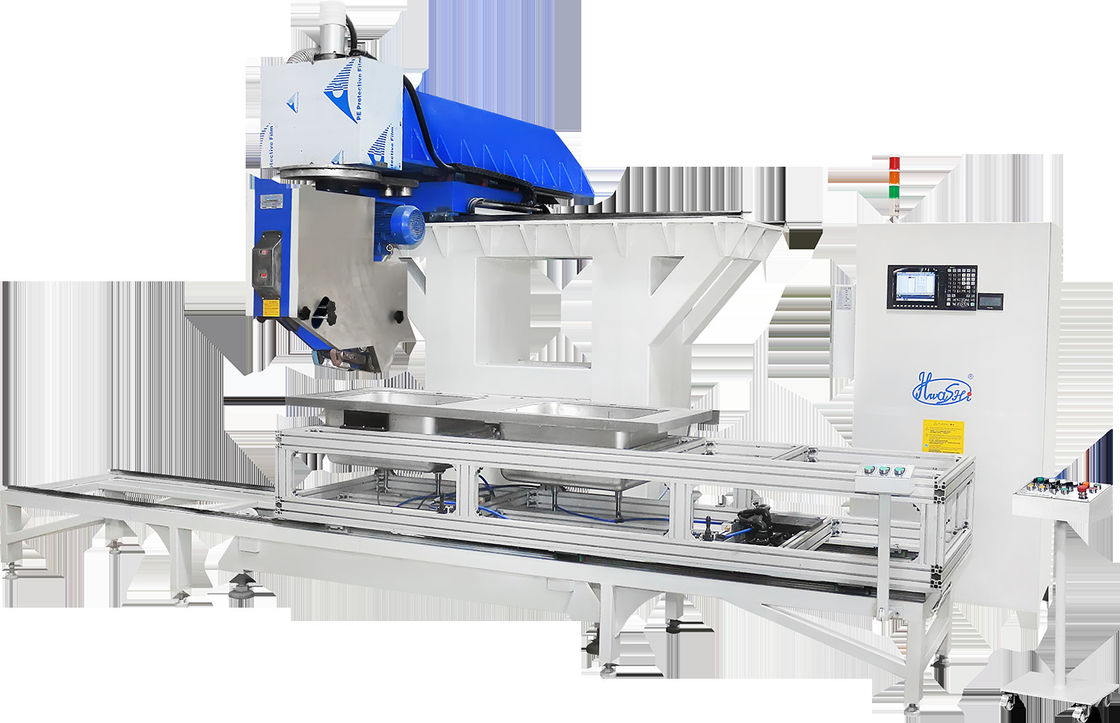

CNC Sink Edges Grinding and Polishing Machine

This is the special designed machine for grinding and polishing the seam after welding. Normally customer will choose to buy these two machines together so as to complete the production of kitchen sink. This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment.

Technical Parameters:

CNC Sink Seam Welding Machine	Model	WL-AMF-160K
	Input Power (V/φ)	380V 3φ
	Rated Power (KVA)	160/250KVA (as per material thickness)
	Applicable Material	Stainless Steel 304/201
	Material Thickness	0.8~1.5mm (customized)
	Effective Welding Length	1600-3000mm (customized)
	Effective Welding Width	600-800mm (customized)

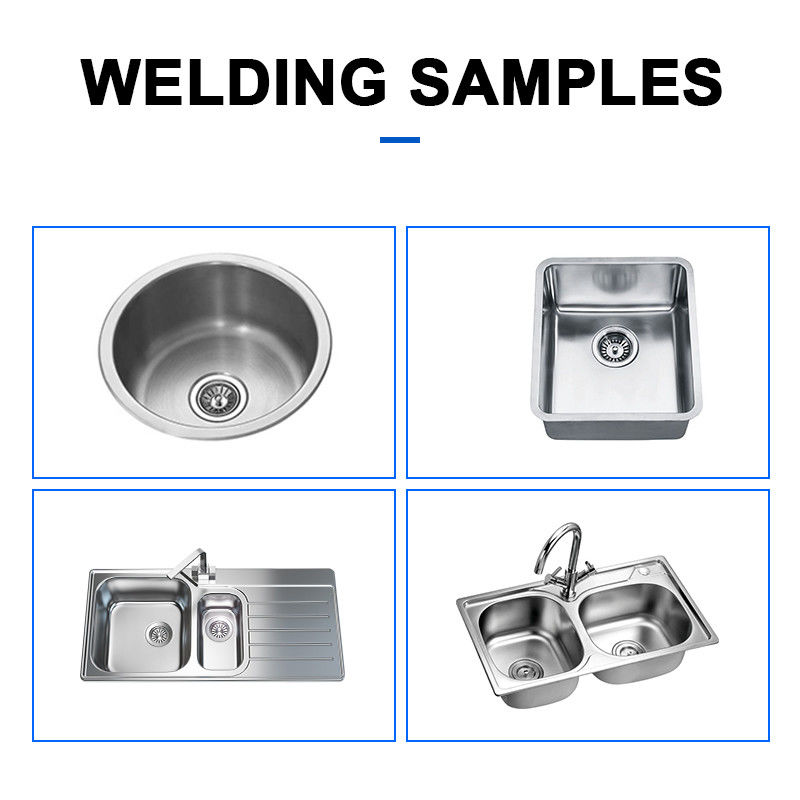

	Sink Bowl Shape	Square/Rectangular/Round
	Welding Efficiency	about 40-60sec/bowl (depend on the size of bowl)
CNC Sink Edge Grinding and Polishing Machine	Max. Moving Speed	500mm/sec
	Belt Rotation Speed	1200R/min
	Min. Radius	R40
	Rated Air Pressure	0.6MPa
	Grinding Efficiency	about 60-80sec/bowl (depend on the size of bowl)
