Hwashi 20-Head 380V 2-phases Spotter Welding Machine Automatic Spot Welder for Stainless

Place of Origin:

CE/CCC/ISO

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Request A Quote

Product Details

Product Name:

380V,2-phases

Rated Capacity:

150KVAx4

Warranty Of Core Components:

1 Year

Key Selling Points:

PLC

Max.welding Thickness:

3+3mm

System Controller:

U.S.MCC SCR

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

T/T, L/C

Supply Ability

50 sets per month

50Hz Frequency Door Plate Spot Welding Machine for Steel/Aluminum Material

Get Best Price

Video

8-10 Years Service Life Door Panel Spot Welder for 220V/380V Power Supply and Durable

Get Best Price

Video

High Speed Door Panel Spot Welding Machine For Manufacturing Industry And 8-10 Years Service Life

Get Best Price

Video

Speed Door Plate Spot Welding Machine 500kg Capacity Welding Speed 0.5-2.5m/min for Heavy-Duty Welding

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

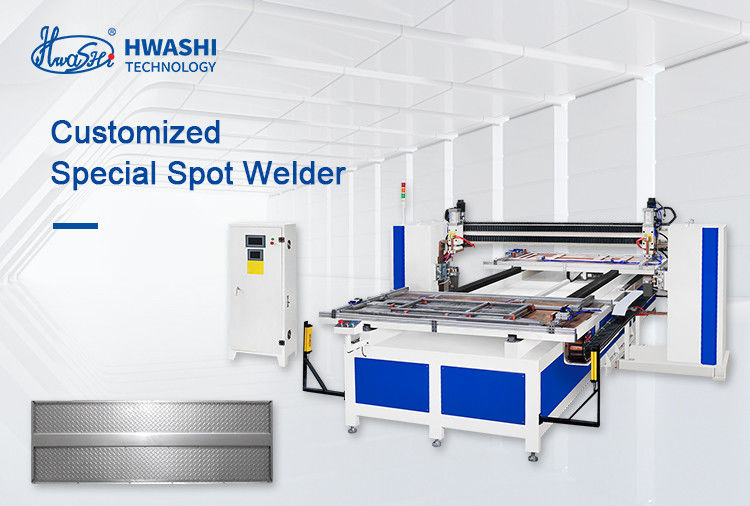

HWASHI Sheet Metal Custom Spot Welder Steel Floor Galvanized Panel Automatic Spot Welding Machine for Metal Plate

Product Description 1. Intellectual touch-screen microcomputer controller, completely digital control, automatic detection and compensation, loose welding and false welding are well prevented. 2. Panasonic touch-screen hunan-computer interface, Panasonic programmer is adopted as the control hub, in charging of reading and dealing with control signal to guarantee that the machine operation is in order and effective. 3. roups of welding electrodes can be moved from left to right, all kinds of products are suitable to be welded. Welding electrodes can work in flexible order. No metal sheet deformation Welding Method: Since the work piece is sealed, then T Type welding is adopted. The bigger tube is placed in the Groove R of the bottom mould. The smaller tube is placed on the top. Instantaneous large current of welding method. The Maximum current could reach 200KA. Locating Mode: The bigger tube is clamped in the Groove R of the bottom mould while the smaller tube is clamped and located on the top. Electrode Mode: Since this work piece is circular tube, then the upper and lower electrodes both adopt the mosaic structure with R. The top electrode adopts floating terminal device to ensure the smoothness of the welding surface. Feeding Mode: The operator could conduct feeding on both sides at the same time. Welding on the left while feeding on the right. Optimize the welding efficiency.

Automatic Feeding And Welding System

This Automatic Spot Welding Machine for conveyor belt Feeder is using the workpiece, then the workpiece will be transported to the setting position. The machine will conduct welding

No. S.N	Item	Specification	Description
1	Input voltage	380V ,2-phases	It can be customized, but only for 2-phases.
2	Input current	400A
3	Output voltage	12V
4	Max.Welding current	34000A
5	Effective welding width	1200mm (ajustable)
6	Effective welding length	3000mm (ajustable)
7	Feeding Rack Mobile speed	0.5m/sec	Servo motor transmitting
8	Upper welding air cylinder	100x100mm	Double force pressing cylinder
9	Lower cylinder	160x100mm
