Name: Pneumatic Automatic Spot Welding Machine Stainless Steel Hwashi Resistance Wire Mesh Provided
Brand: Guangdong Hwashi Technology inc.
SKU: WL-C
Price: 157,805.00 USD
Availability: InStock

Home > products > Spot Welding Machine >

Pneumatic Automatic Spot Welding Machine Stainless Steel Hwashi Resistance Wire Mesh Provided

Place of Origin:

CE/CCC/ISO

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-C

Request A Quote

Pneumatic Automatic Spot Welding Machine Stainless Steel Hwashi Resistance Wire Mesh Provided

Product Details

Product Name:

Pneumatic Automatic Spot Welding Machine Stainless Steel Hwashi Resistance Wire Mesh Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Key Selling Points:

Automatic

Applicable Industries:

Welding Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

T/T, L/C

Supply Ability

50 sets per month

Hwashi Computer Case Spot Welding Machine

Get Best Price

Video

Hwashi Glasses Frame Capacitive Energy Storage Spot Welder

Get Best Price

Video

High-Efficiency Spot Welding Machine for Kettle Spout Caps

Get Best Price

Video

Efficient Capacitor Energy Storage Spot Welding Machine for Welding Filter Screens and Mesh

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

Foot Pedal Operated Spot Welding Machine

Foot pedal operated spot welding machine adopts lever pedal type spring pressurized structure. Easy operation, quick response. Suitable for various kind of positioning accuracy and complicated shape welding occasion. Under the operation of transformer, foot pedal spot welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generate high heat to make the work pieces in the molten condition. Thus, the purpose of welding the two pieces of work pieces is achieved.

Intelligent welding control system

Intelligent Touch Screen Controller

Input and read welding parameters.

Raw materials made to standard

Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding

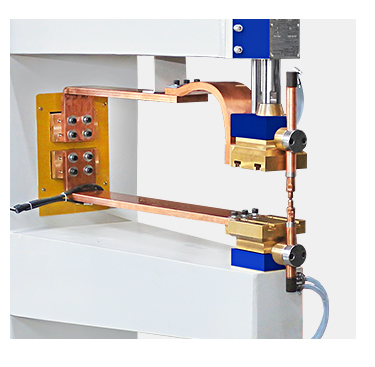

Custom processing of electrodes

Customized Electrodes which will be suitable for Welding material like steel, aluminium, silver, stainless Steel, and nickel steel.

Shape structure and welding method

Design the right machine shape and mold according tothe welding product.

1. Pedal lever control circuit. Main engine without electricity when do not step pedal. It can save electricity. 2. Using timing control. Even the work piece is still being pressed while welding, current can be automatically cut off on time and reduce the human factor. Easier operation. The quality of welding spot is more stable. 3. Timing using electronic controller stepless regulation. Setting range from 0. 0 2 to 2 seconds (usually the required time of work piece is within 0.5 seconds) accurately repeat the selection

Model	Input Voltage	Input Power	Output Current	Adjustable stroke	Electrode Distance	Cooling Water
Model	V	KVA	A	mm	mm	Lit/Min
WL-FT-25K	380	25	12000	30	100	6
WL-FT-35K	380	35	14000	30	100	6
WL-FT-50K	380	50	18000	30	100	6
