Name: Hwashi CNC Medium Frequency Mild Small Steel Door Sheet Metal Spot Welder with XY Axis Automatic Movable Feeder
Brand: Guangdong Hwashi Technology inc.
SKU: According to your product
Price: 225,000.00 USD
Availability: InStock

Home > products > Door Panel Spot Welding Machine >

Hwashi CNC Medium Frequency Mild Small Steel Door Sheet Metal Spot Welder with XY Axis Automatic Movable Feeder

CNC Medium Frequency Spot Welder

Door Sheet Metal Spot Welder

Automatic Movable Feeder Spot Welder

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

According to your product

Request A Quote

Product Details

Product Name:

Hwashi CNC Medium Frequency Mild Small Steel Door Sheet Metal Spot Welder With XY Axis Automatic Movable Feeder

Application:

Welding Of Sheet Metal

Size:

According To Your Product

Condition:

New

Warranty:

12months

Certificate:

CE/CCC/ISO

Service Life:

8-10 Years

Weight:

480kg

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

50Hz Frequency Door Plate Spot Welding Machine for Steel/Aluminum Material

Get Best Price

Video

8-10 Years Service Life Door Panel Spot Welder for 220V/380V Power Supply and Durable

Get Best Price

Video

High Speed Door Panel Spot Welding Machine For Manufacturing Industry And 8-10 Years Service Life

Get Best Price

Video

Speed Door Plate Spot Welding Machine 500kg Capacity Welding Speed 0.5-2.5m/min for Heavy-Duty Welding

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

Hwashi CNC Medium Frequency Mild Small Steel Door Sheet Metal Spot Welder with XY Axis Automatic Movable Feeder

Hwashi CNC Medium Frequency Mild Small Steel Door Sheet Metal Spot Welder with XY Axis Automatic Movable Feeder 0

Product Description

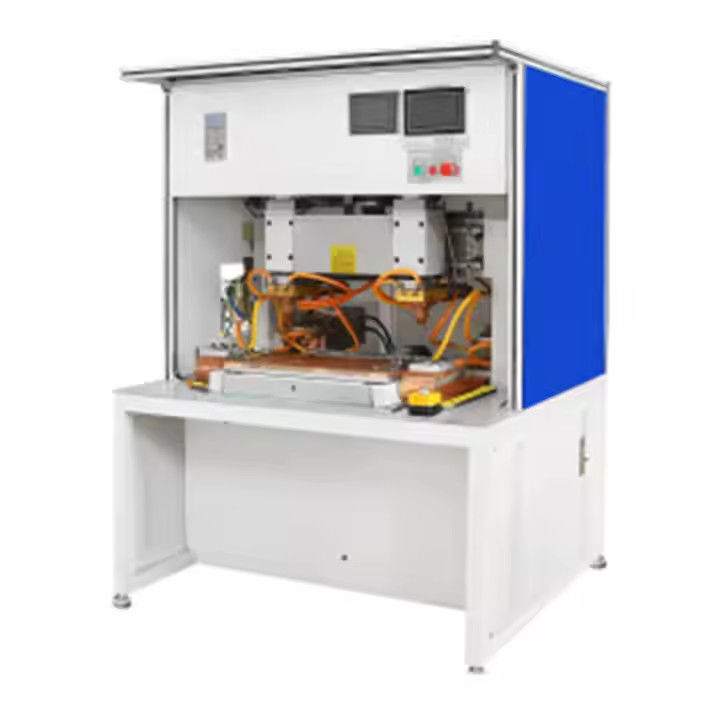

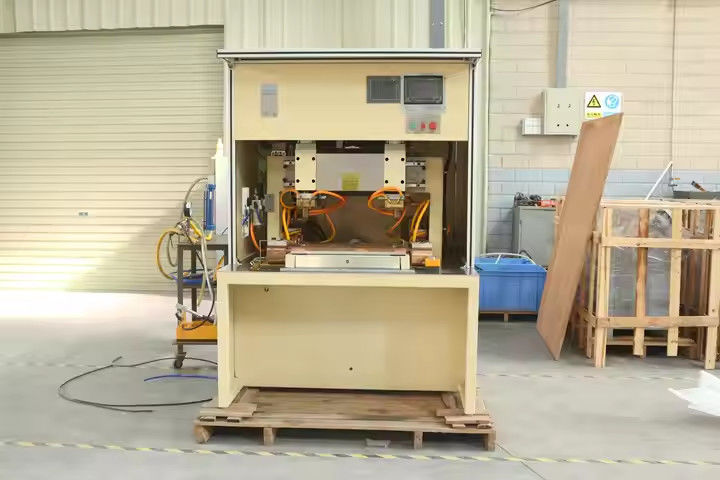

Hwashi Latest Automatic Door Sheet Metal Welding Machine, Spot Welder

This machine can complete loading and fixing the work piece at one time; It can automatically move and weld as per present location;Electrodes can automatically enter into grinding system to repair and maintain the electrodes;It can be better to guarantee stable welding points, improve products quality and production efficiency and reduce production cost . It solves the instable quality and low production eficiency defect of manual job.

Hwashi CNC Medium Frequency Mild Small Steel Door Sheet Metal Spot Welder with XY Axis Automatic Movable Feeder 1

Welding Heads and Fixtures
Processing and design according to the drawings of each wire shelf product. (customized)

Features

1.Adopt the reainforced special design steel C type frame structure body.It adopts reasobalbe stress center of gravity to ensure the stable intensity of the main body when conducting fast speed welding. At the meantime,it could provide stress supporting point and working platform other actions.

2.Adopt the touch screen inported form famous brand as the human-machine interface,Englishinput .It can store 30 sets of different model for welding with more than 5000 welding spots.

Specification Of The 7 Axis Double Heads Sheet Metal Spot Welding Machine

NO	ITEM	PARAMETER
1	Input voltage	380V thress-phase
2	Input Power	50kvax2
3	Input Current	150A
4	Output Voltage	DC5.5V
5	Max.Welding Current	1500AX2
6	Welding Model	101 types
7	Max. Memory Position	500mm/s
8	X Axis effective Width	850mm
9	Y Axis effective Width	600mm
10	Moving Speed	800mm/sec

Application

This machine is mainly applied to welding the low carbon steel, low steel alloy, stainless steel , galvanized steel,sheet metal and round steel which are not easy welding with general welding machine.Widely applied to industries in automobile, sheet metal ,security door,cabinet, household appliance,etc

Hwashi CNC Medium Frequency Mild Small Steel Door Sheet Metal Spot Welder with XY Axis Automatic Movable Feeder 3

Other Machines Related ToThe 7 Axis Double Heads Sheet Metal Spot Welding Machine

sheet metal spot welding machine CNC Automatic Moving Spot Welding Machine

Sheet metal workpiece XY mobile welding machine Multiple Spot Stiffener Welding Machine
