Name: HWASHI Welding Equipment Automatic Gantry Style Multi Head Spot Row Welding Machine For Wire Mesh Hot Product Provided 2 - 8 Mm
Brand: Guangdong Hwashi Technology inc.
SKU: WL-TSP-MF150K
Price: 225,000.00 USD
Availability: InStock

Home > products > Automatic Wire Shelf Welding Machine >

HWASHI Welding Equipment Automatic Gantry Style Multi Head Spot Row Welding Machine For Wire Mesh Hot Product Provided 2 - 8 Mm

Wire Mesh Spot Row Welding Machine

Multi Head Spot Row Welding Machine

Automatic Gantry Welding Equipment

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-TSP-MF150K

Request A Quote

Product Details

Application:

Mesh Product

Size:

According To Your Product

Weight (KG):

According To Your Product

Condition:

New

Warranty:

1 Year

Standard:

Welding Material:

Iron Wire

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Sea worthy wooden package or PVC Film for FCL

Delivery Time

30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

marketing@hwashi.com

Contact Now

Product Description

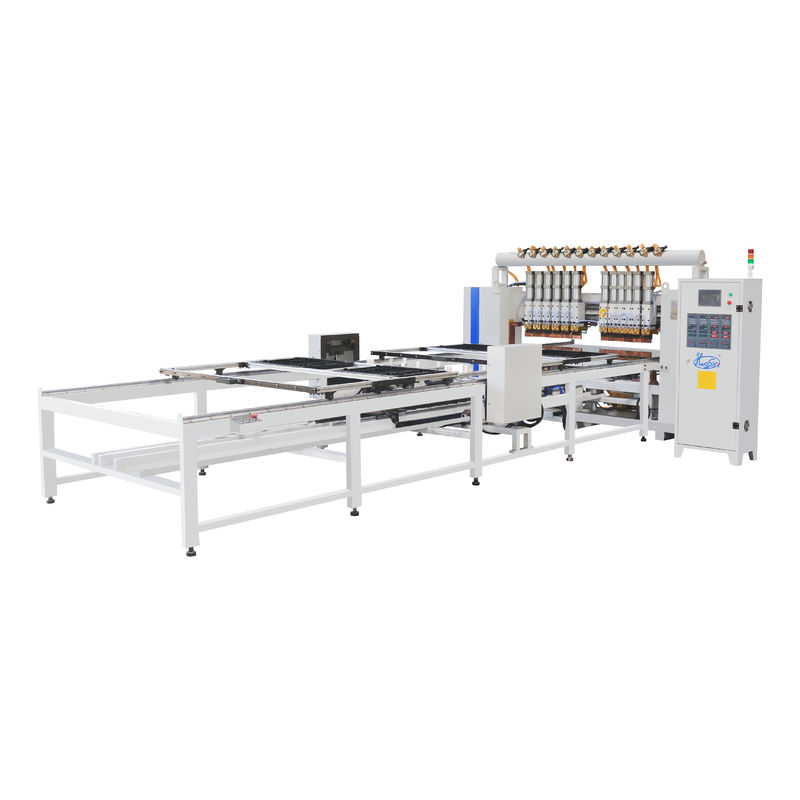

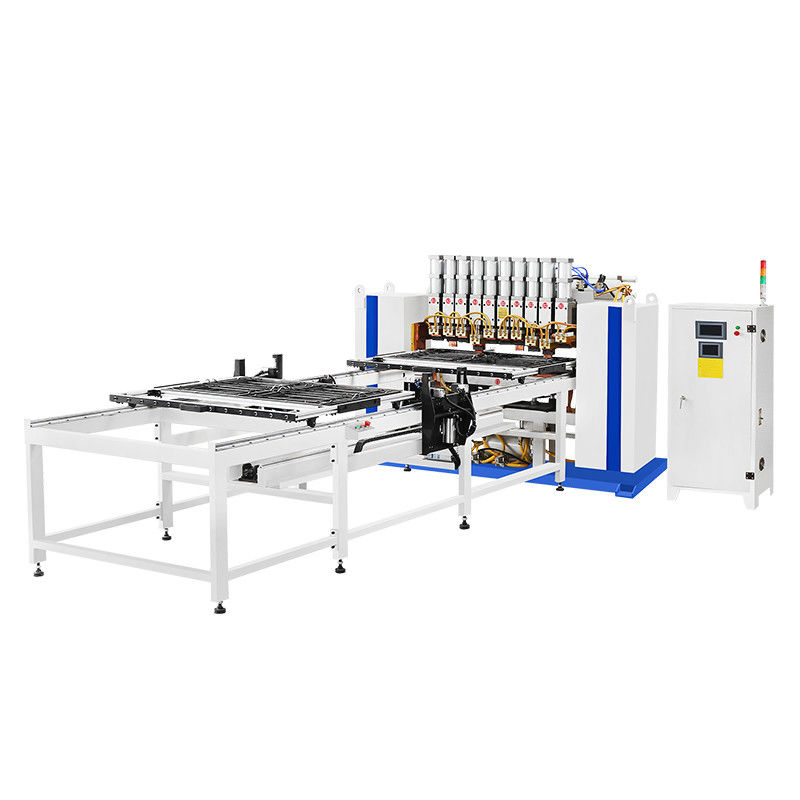

HWASHI Welding Equipment Automatic Gantry Style Multi Head Spot Row Welding Machine for Wire Mesh Fencing in Price

DETAILED DESCRIPTION 1. Multiple welding electrodes; 2. Manual wire loading; 3. Automatic feeder and automatic welding 4. Double power supply system 5. Two electrodes can work at one time and take turns. 6. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working. 7. High efficiency ,High cost 8. Suitable for wire mesh whose width is within 1200mm, length is not restricted. When you need this kind of machine, please kind send your wire mesh drawing first clearly showing: 1. wire diameter; 2. the distance between lines; 3. the total length and width of the wire mesh; 4. production capacity; 5. cost budget. Then we can custom design and manufacture for you based on your requirements. Also we will give our suggestions base on our experience.

FEATURES Automatic dual-layer machine interchanges feeding and welding simultaneously Configuration allows you to change fixtures quickly and easily Perfect for high volume production environments Customization available to suit your application Microprocessor-based welding control with touch-screen interface makes programming simple. HWASHI Service First Policy guarantees superior quality and value backed by HWASHI machinery

APPLICABLE AREA

Automatic welding machine for welding wire mesh , basket wire mesh, cage wire mesh, wire mesh fence, welded wire mesh panel, wire mesh cable tray, welded wire mesh, chicken wire mesh, aluminium wire mesh, welded wire mesh fencing, galvanized wire mesh,fencing net, concrete wire mesh, concrete reinforcing welded wire mesh, galvanized welded wire mesh panel, wire display rack, bbq wire rack, wire shelving rack, wire storage rack, kitchen wire basket, kitchen cabinet wire basket, refrigeration condenser and so on.

Animal Containment: Cages and Enclosures...

Display Equipment: Display Racks, Stands...

Wire Mesh Products: Wire Grid, Mesh Decks, Wire Baskets for

closets, Shop Fittings, Computer Enclosures...

Storage and Warehousing: Wire Storage Baskets, Mesh Stillage,

Pallet Cages, Box Trailer Sides, Pallet Boxes, Storage Shelving, Storage Containers, Tool Racks...

Intelligent welding control system

Automatic welding by inputting coordinate data of welding position, welding current and other data.

Welding Heads and Fixtures

Processing and design according to the drawings of each wire shelf product. (customized)

Automatic Wire Filling System

You can put the precut straight wires into the hopper, then the wire filling machine will do the wire filling into the fixture automatically. It helps to increase the working efficiency and reduce labor force.

Automatic Double-layer Feeder

When one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased.

No. S.N	Item	Specification	Description
1	Input voltage	380V ,2-phases	It can be customized, but only for 2-phases.
2	Input current	400A
3	Output voltage	12V
4	Max.Welding current	34000A
5	Effective welding width	1000mm (ajustable)
6	Effective welding length	3000mm (ajustable)
7	Feeding Rack Mobile speed	0.5m/sec	Servo motor transmitting
8	Upper welding air cylinder	100x100mm	Double force pressing cylinder
9	Lower cylinder	160x100mm

Production Line Machines

Wire Flattening and Cutting Machine

This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.

High Speed Wire Straightenign and Cutting Machine

This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.

Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.

2D Wire Handle Bending Machine

This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

3D Wire Bending Machine

This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.
