Name: HWASHI High Quality Automatic Steel Wire Mesh Welding Machine With Best Price
Brand: Guangdong Hwashi Technology inc.
SKU: WL-TSP-MF150K
Price: 225,000.00 USD
Availability: InStock

Home > products > Automatic Wire Shelf Welding Machine >

HWASHI High Quality Automatic Steel Wire Mesh Welding Machine With Best Price

Automatic Steel Wire Mesh Welding Machine

wire mesh welding machine manufacturers

stainless steel wire mesh welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-TSP-MF150K

Request A Quote

Product Details

Application:

Mesh Product

Size:

According To Your Product

Weight (KG):

According To Your Product

Condition:

New

Warranty:

1 Year

Standard:

Welding Material:

Iron Wire

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Sea worthy wooden package or PVC Film for FCL

Delivery Time

30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Steel Wire Mesh Spot Welding Machine Refrigerator Wire Shelf Multipoint Spot Welding Machine

Get Best Price

Video

Automatic Multi-Point Spot Welding Machine for Refrigerator Wire Shelves & Steel Mesh Grids

Get Best Price

Video

Hwashi Automated Steel Mesh Welding Equipment | Heavy-Duty Refrigerator Shelf Manufacturing Solution

Get Best Price

Video

Hwashi CNC-Controlled Spot Welding Machine for High-Volume Refrigerator Wire Rack Production

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

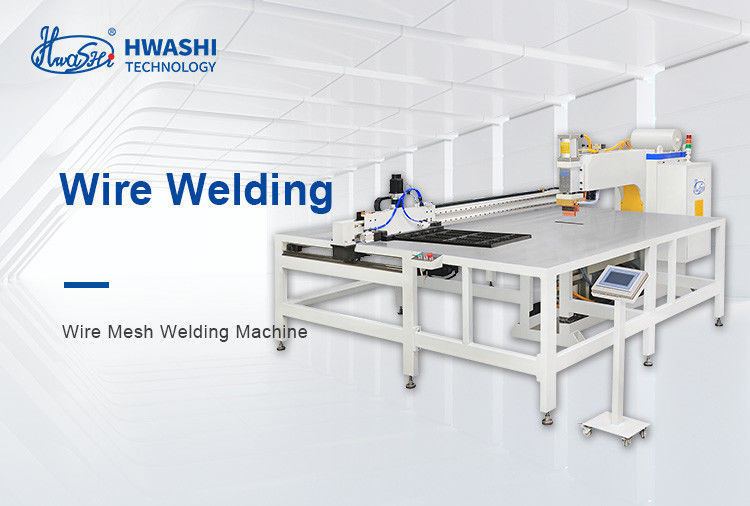

HWASHI Best price Wire Basket / Wire Shelves / Wire Rack Welded Wire Mesh Welding Machine

HWASHI High Quality Automatic Steel Wire Mesh Welding Machine With Best Price 0

Characteristics:
1. Multiple welding electrodes;

2. Manual wire loading;

3. Automatic feeder and automatic welding

4. Double power supply system

5. Two electrodes can work at one time and take turns.

6. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working.

7. High efficiency ,High cost

8. Suitable for wire mesh whose width is within 1200mm, length is not restricted.

Intelligent welding control system

Automatic welding by inputting coordinate data of welding position, welding current and other data.

Special product molds welding platform

Processing and production according to the size of each mesh product

X.Y axis moving device

Equipped with automatic movement of the workpiece mold along X and Y axes, only manual swinging and removal of the workpiece is required

Single head long arm type welding

The equipment adopts single head long arm type welding structure, can be customized according to the needs of the workpiece double row or multi-row welding head

Specification

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Wleding Thickness (MM)	1-5mm
Warranty	1 years
Mesh Welding Range	1000mm X 1000mm

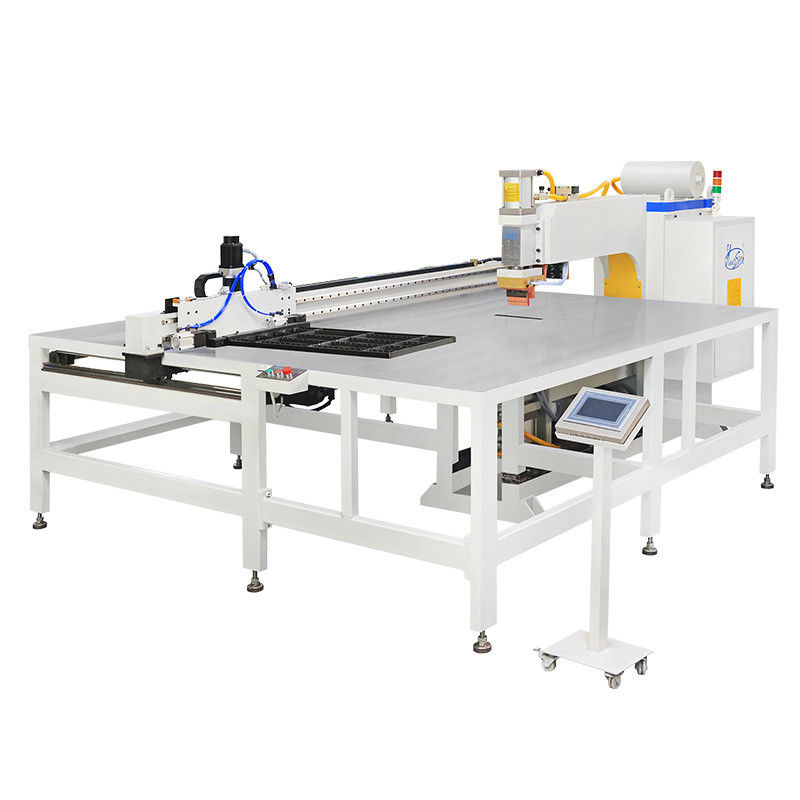

XY axis automatic moving wire welding machine

The wire welding machine features a highly efficient servo motor-driven XY axis mold frame, utilizing a synchronous belt drive system. Controlled by the advanced control system, the machine enables precise control over the walking step length and speed. Once the manual material is securely fixed onto the mold frame, the switch is activated, and the industrial control computer takes charge. The product then undergoes automated welding as it alternately moves along the X and Y axes of the mold frame, seamlessly completing the welding process for each joint. Upon completion, the machine automatically returns to the origin without requiring additional manual intervention. This eliminates the need for additional personnel during the welding operation. Meanwhile, the operator can utilize the available time to set up the next material, optimizing efficiency and reducing labor costs. By effectively utilizing the welding time for material setup, the machine ensures maximum productivity and streamlines the overall workflow.

HWASHI High Quality Automatic Steel Wire Mesh Welding Machine With Best Price 5

HWASHI High Quality Automatic Steel Wire Mesh Welding Machine With Best Price 6

Production Line Machines

Wire Flattening and Cutting Machine

This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.

High Speed Wire Straightenign and Cutting Machine

This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.

Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.

2D Wire Handle Bending Machine

This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

3D Wire Bending Machine

This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.
