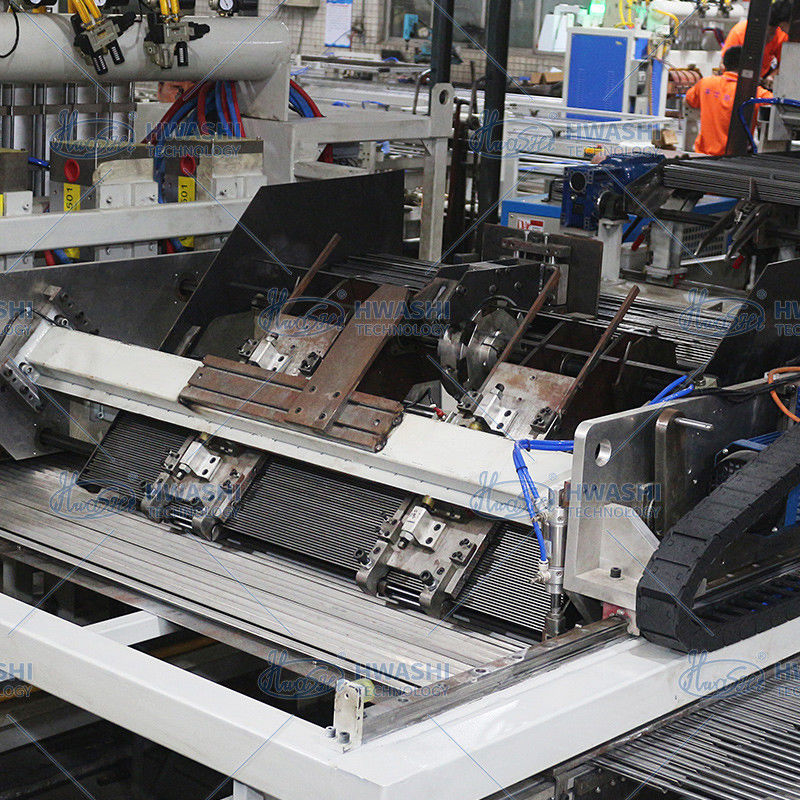

Advanced Automatic Wire Shelf Welding Machine For Wire Mesh Deck Shelving Production Line

Advanced Automatic Wire Shelf Welding Machine

Wire Mesh Deck Shelving Production Line

Automatic Wire Shelf Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Request A Quote

Product Details

Electricity:

Three-phase Four Wires 380V±10%

Power Cable:

120mm²，400A

Control Method:

PLC

Effective Welding Width:

1200mm

Effective Welding Length:

1200mm

Automatic Moving Speed:

200-500mm/s Adjustable

Automatic Wire Filling Range:

Line Wire: 400-1200mm，wire Diameter: 2-6mm

Automatic Wire Filling System Number:

2 Sets

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

US $350000.00 / Set

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Advanced Automatic Wire Shelf Welding Machine For Wire Mesh Deck Shelving Production Line

Get Best Price

Video

500-1000kg Maximum Load High Capacity Wire Mesh Welding Machine with 2-10 Welding Spot Number

Get Best Price

Video

Steel Wire Mesh Spot Welding Machine Refrigerator Wire Shelf Multipoint Spot Welding Machine

Get Best Price

Video

Automatic Multi-Point Spot Welding Machine for Refrigerator Wire Shelves & Steel Mesh Grids

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

Advanced Automatic Wire Shelf Welding Machine for Wire Mesh Deck Shelving Production Line

Product Description

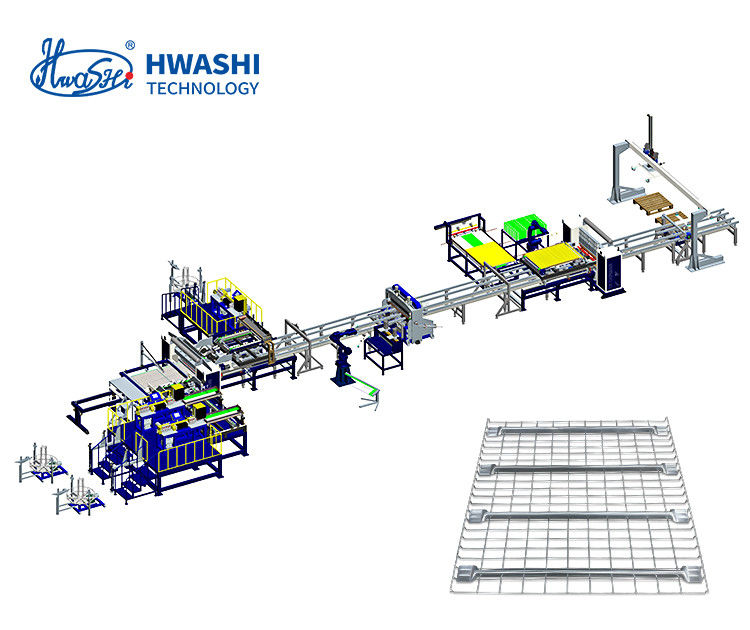

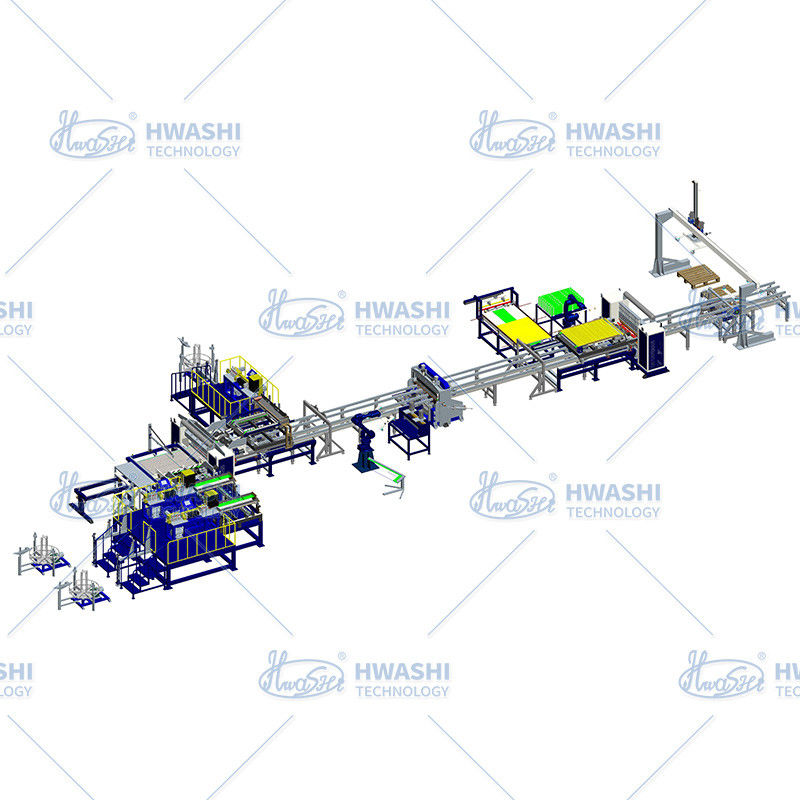

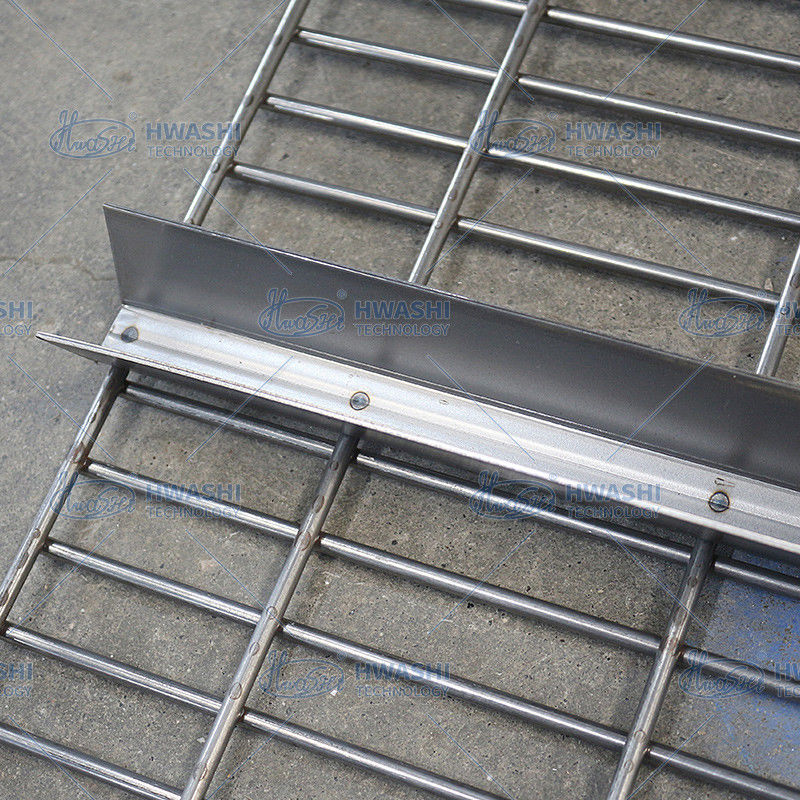

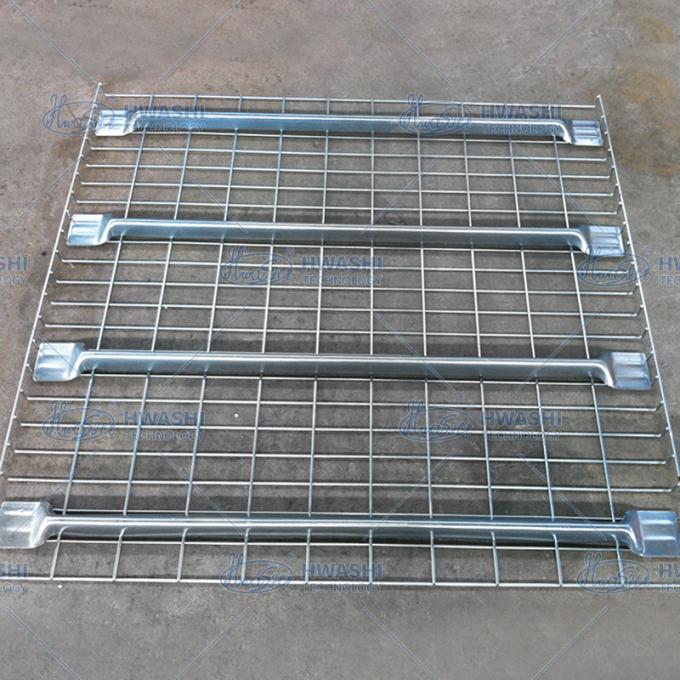

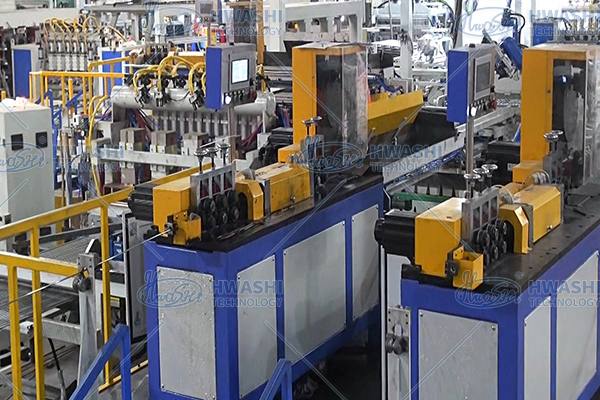

The welding production line designed for this project is specifically intended for the rapid production of Wire pallet rack decking. It enables the fully automated production of wire mesh and stiffener. Achieving automatic wire cutting, feeding, welding, bending, rotating, edges trimming, stiffener automatic feeding, welding, and stacking of finished product. The entire line design requires only two operators, enhancing product quality and production efficiency, reducing production costs. Also it helps to addressing the issues of quality instability and low efficiency associated with manual operations. The production efficiency and automation level are significantly improved.

Working Process

Working Process

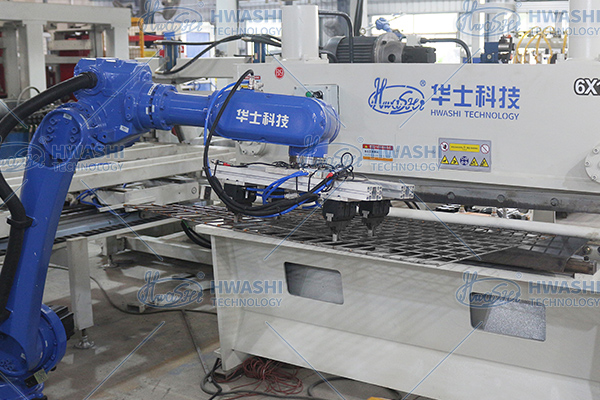

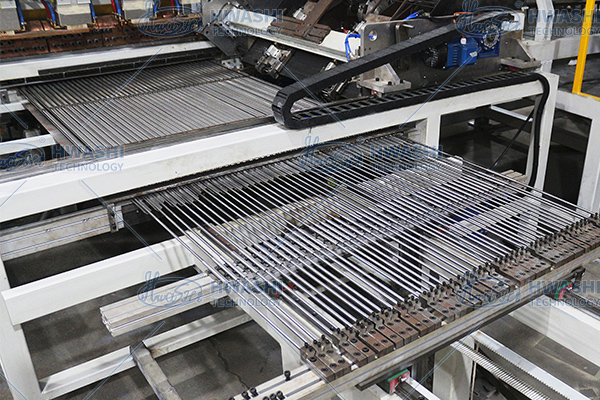

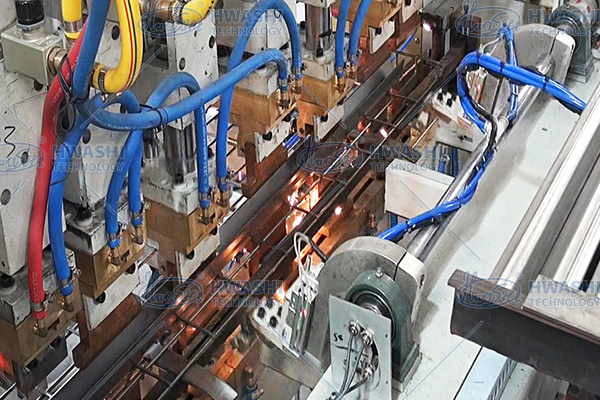

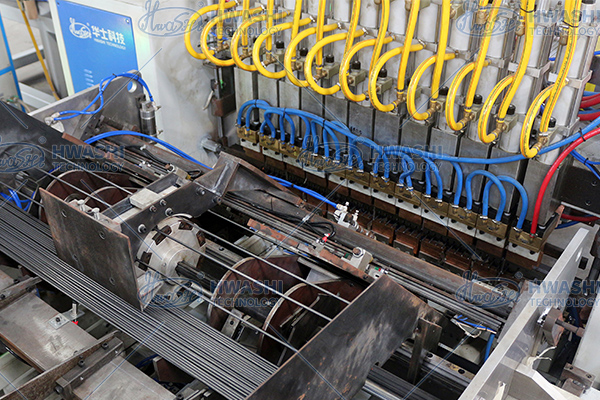

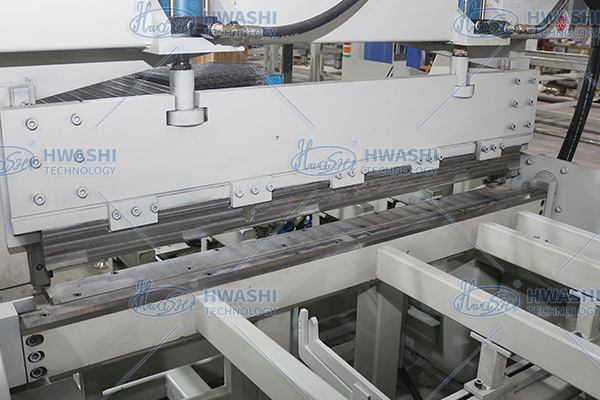

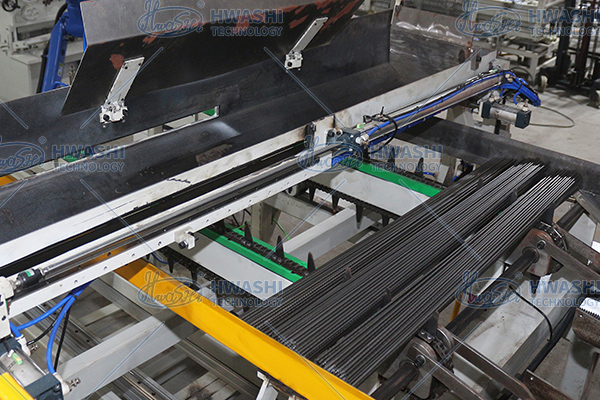

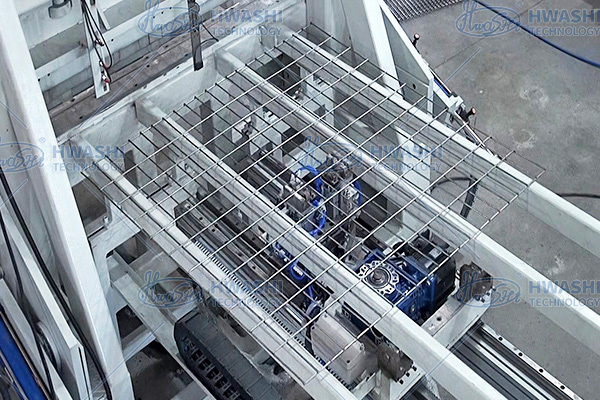

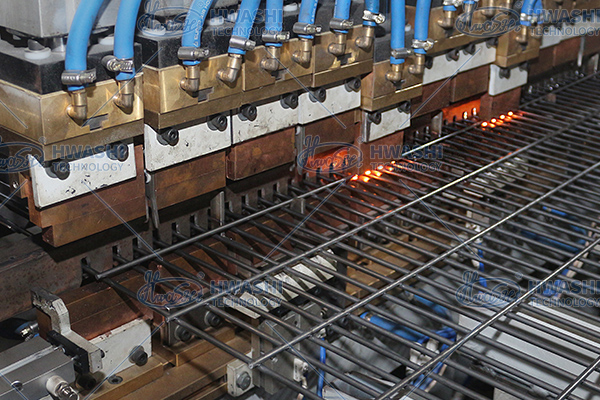

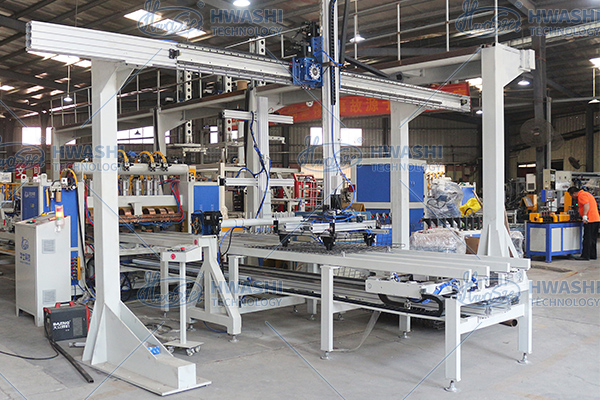

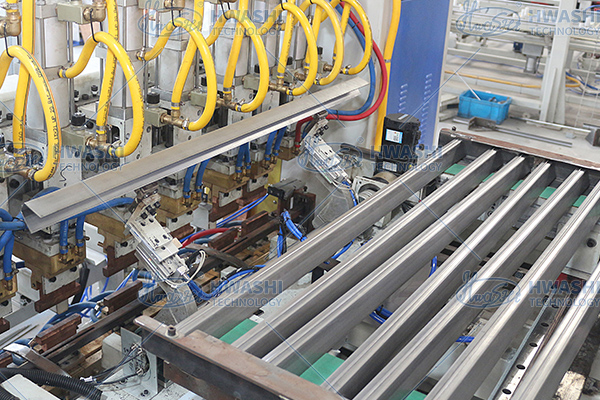

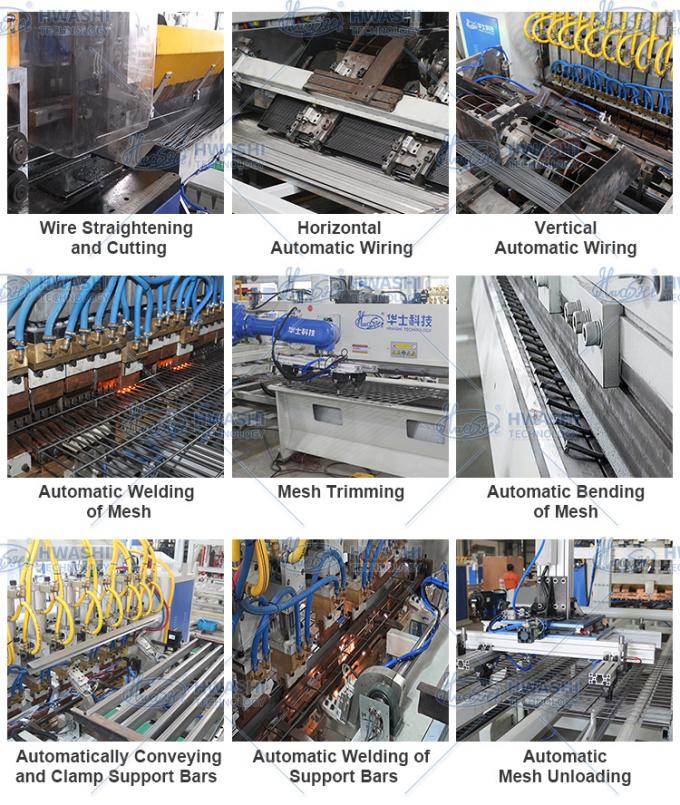

1)High speed wire straightening and cutting machine will cut the wires from the wire coil, and then load the wires to the wire supplying system for automatic wire filling of the cross wires and line wires. 2)Cross wire and line wire filling system will feed the wire to the welding position automatically. 3)The welding machine will do welding automatically. 4)After welding, the robot will pick up the mesh and load it to the wire trimming station for cutting the edges. 5)After trimming, the robot will place the wire mesh back to the conveyor line and move it to bending station. 6)The bending machine will bend one side of the mesh. 7)The rotary system will rotate the mesh, and the bending machine will bend another side of the mesh. 8)The wire mesh will move to the stiffeners (support bars) welding position 9)The mechanical arm will load the stiffeners and fix them automatically to the welding position. 10)The welding machine will do welding of the stiffeners as per drawings. 11)After welding, the unloading mechanical arm will flip and stack the finished product automatically.

Items	Data
Electricity	Three-phase four wires 380V±10%
Power cable	120mm²,400A
Control method	PLC
Effective welding width	1200mm
Effective welding length	1200mm
Automatic moving speed	200-500mm/s adjustable
Automatic wire filling range	Line wire: 400-1200mm,wire diameter: 2-6mm Cross wire: 400-1200mm,wire diameter: 2-6mm
Automatic wire filling system number	2 sets
Machine dimension	35000mmx8000mm
Air pressure	0.6MPa
Cooling water	15-25℃
