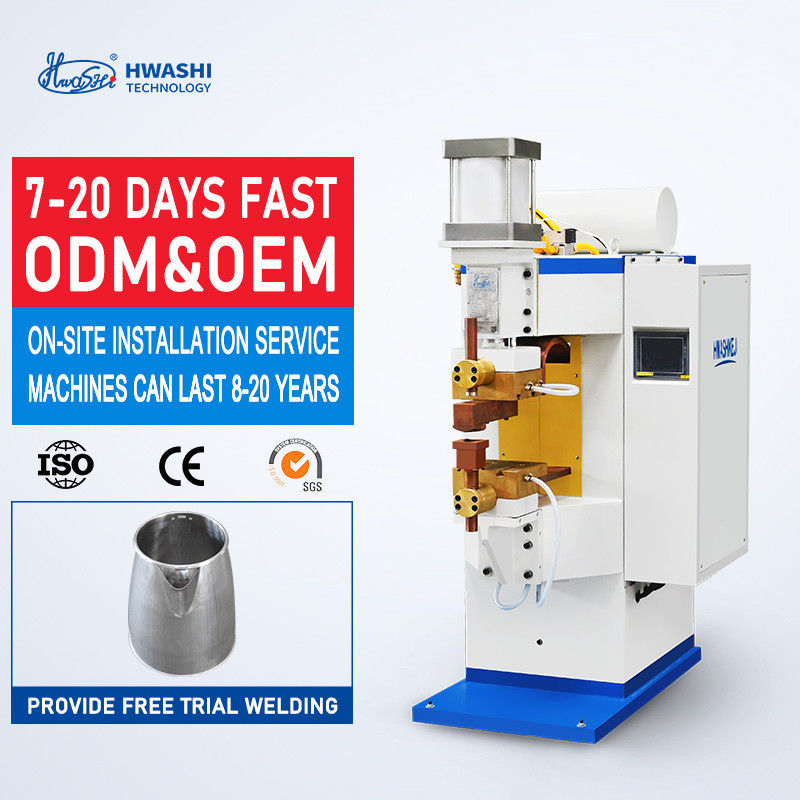

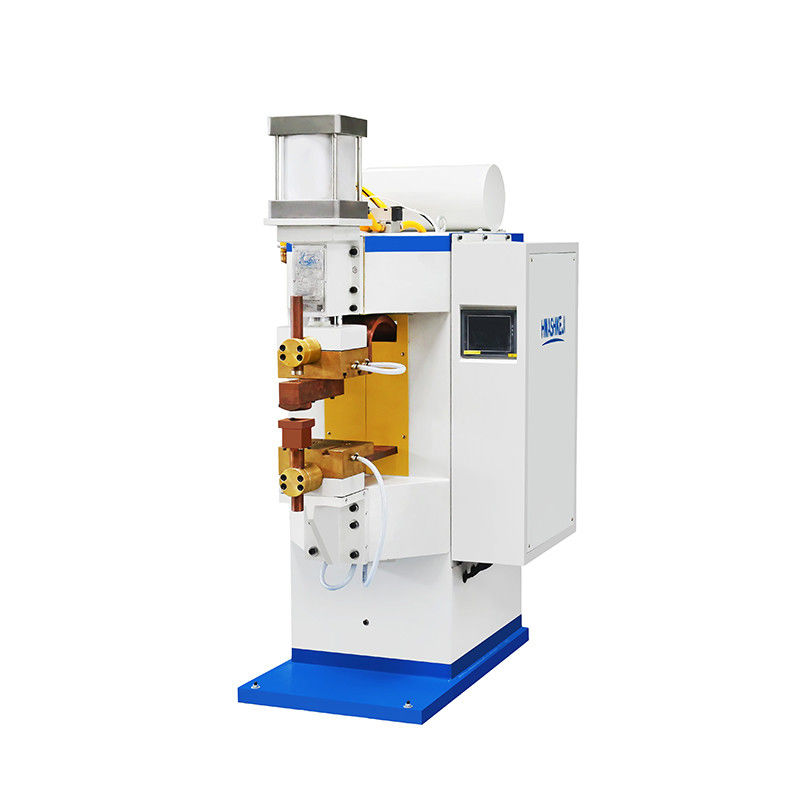

Copper Hwashi MF Welding Machine For Water Kettle Spout
Product Description:
Medium frequency inverter DC spot welder Adopting the latest generation of medium frequency inverter welding controller, it has many advantages such as short power-on time, high thermal efficiency, three-phase DC output, high working frequency and small transformer loss. It is suitable for welding carbon steel, stainless steel, galvanized, copper, aluminum, aluminum alloy, iron, nickel, high strength steel, hot forming steel and other metal materials. Medium frequency spot welding machine can be widely used in auto parts, auto body, aerospace, high and low voltage electrical, household appliances, elevator, hardware and furniture, new energy and other industries.
|
Intelligent welding control system
Raw materials made to standard
Input and read welding parameters.
|
Raw materials made to standard
Thicker Copper Plate or Copper Belt
To ensure stable conductivity in welding
|
|
Custom processing of electrodes
Customized Electrodes which will be suitable for Welding material like steel, aluminium, silver, stainless Steel, and nickel steel.
|
Shape structure and welding method
Design the right machine shape and mold according tothe welding product.
|
Feature
1. Three-phase power supply, grid balance, small impact on the grid
The power factor is as high as 0.7-0.9 (power frequency 0.4), which greatly reduces the reactive power loss.
2. Significantly improved welding control accuracy
The inverter frequency reaches above 1000Hz, and the welding current control ability and control accuracy are 20 times higher than those of AC welding machines.
3. Great leap in welding quality
The current waveform is straight, the size of the nugget is stable, the spatter is less, and the surface quality of the solder
joint is good.
4. Save basic investment and save energy
The grid power demand is low, only 2/3 of the AC resistance welding machine; the welding time is short and the electrode life is long.
5. Human-computer interface, easy to operate
Multiple sets of welding specifications can be stored and called with one key, real-time display of welding current and time, monitoring and alarm functions of welding pressure, cold water flow, and welding current.
Technical Parameters:
Specifications
| Model |
WL-MF-100K
|
|
Input Power (V/φ)
|
380/3
|
|
Rated Power (KVA)
|
100
|
|
Applicable Material
|
Stainless Steel, Carbon steel, Aluminum, Metal
|
|
Max Short Circuit Current (KA)
|
21
|
|
Electrode Force (KG)
|
1000
|
|
Electrode Stroke (MM)
|
100
|
|
Dimension(L*W*H)
|
950mm*800mm*1675mm
|
|
Warranty
|
1 years
|
|

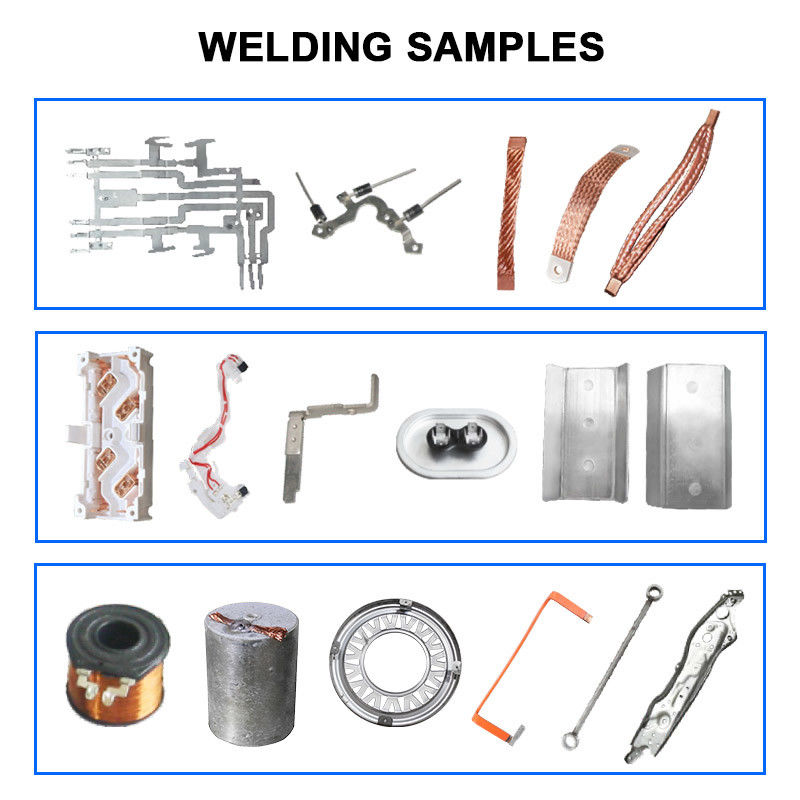

Applications:
For copper, aluminum, nickel, molybdenum, tungsten, manganese, gold, silver and other non-ferrous metal welding. widelyused in low carbon steel plate, stainless steel plate, galvanized sheet, aluminum plate, wire welding, multipoint projectiorwelding. the automobile manufacturing industry of high strength steel, steel spot welding, nut projection welding, as wellas the high and low voltage electrical industry welding of copper, silver contact and copper sheet.
Advantages
- High Efficiency: Increased production speed and reduced labor costs.
- Precision: Consistent and strong welds ensure high-quality MF welding products.
- Customization: Tailored to meet specific production requirements.
- Durability: Long-lasting machine construction and reliable performance.
- Safety: Comprehensive safety features to protect operators and equipment.
Support and Services:
The MF Welding Machine is a high-performance, reliable piece of equipment that is designed to meet the needs of modern mf welding manufacturers. Our skilled technical support team is available to assist you with any questions or issues you may encounter during the installation, operation, or maintenance of your machine.
We offer a range of services to ensure that your Wire Mesh Welding Machine is operating at peak efficiency, including:
- Installation and setup
- Training for your operators and maintenance staff
- Regular maintenance and servicing
- Repair and replacement of parts
- Upgrades and customization
Our team of experienced technicians has the expertise to diagnose and resolve any issues with your Wire Mesh Welding Machine, ensuring that downtime is minimized and production is maximized. We also provide comprehensive documentation and technical manuals to help you get the most out of your machine.
Packing and Shipping:
Product Packaging:
- The Machine will be securely packaged in a wooden crate to ensure its safety during transportation.
- The crate will be labeled with the product name and any necessary handling instructions.
Shipping:
- The Welding Machine will be shipped via a reliable courier service.
- The shipping cost will be calculated based on the destination and the weight of the package.
- The estimated shipping time will vary depending on the destination.
- A tracking number will be provided to the customer once the package has been shipped.
