Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-FS-MF160K

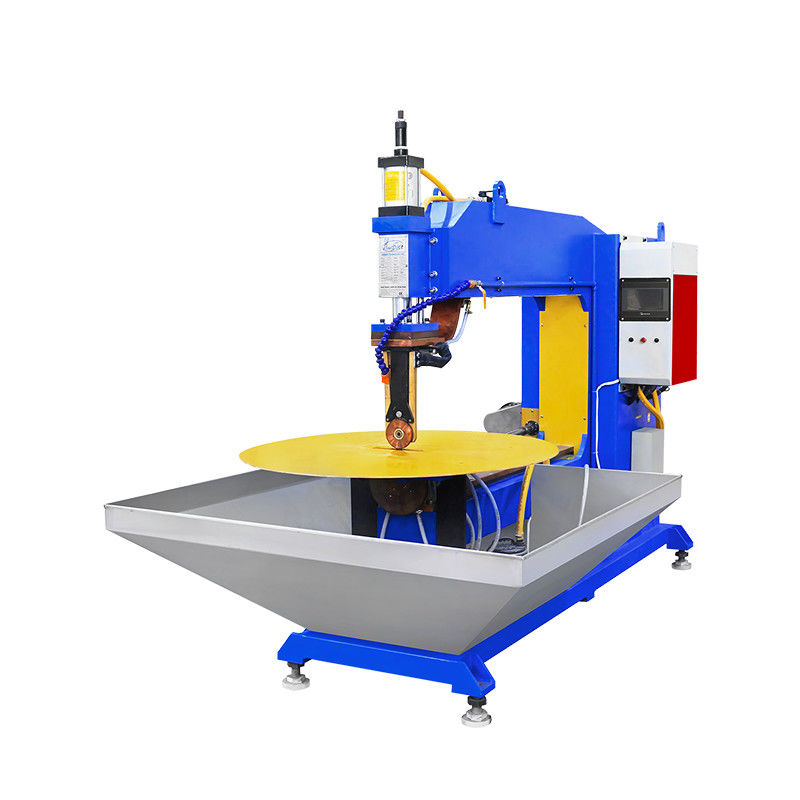

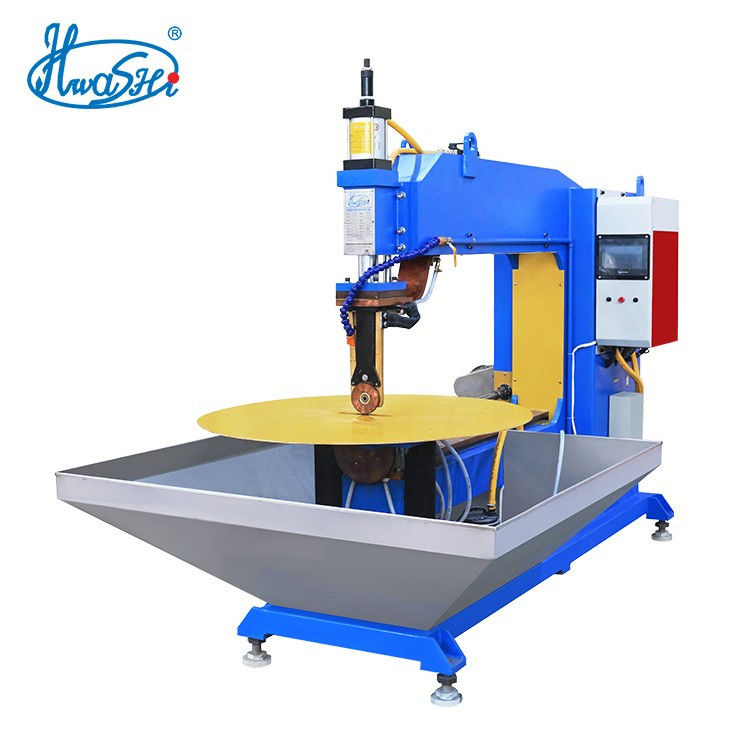

Hwashi CCC/CE Approval Semi-Automatic Kitchen Sink Seam Welder Machine
Description of the Sink Seam Welder Machine:
The sink seam welding machine represents a significant advancement from traditional spot welders. It utilizes roller electrodes in lieu of cylindrical electrodes, allowing for a more efficient welding process. As the workpiece passes between the rolling plates, the seam welding mechanism generates weld nuggets that seamlessly overlap, ensuring a robust welding effect. AC pulse current is employed in this process. Roll welding finds extensive application in the fabrication of lightweight sealed containers such as oil drums, cans, heating radiators, aircraft and fuel tanks, as well as in the production of rockets and missiles.
Features of the Sink Seam Welder Machine:
This machine boasts a sleek design, ensuring both aesthetic appeal and stable welding performance.
Equipped with an intelligent micro-computer controller, it offers the flexibility to set various welding specifications. The multi-segment electrification method facilitates soft start and end welding, while the subprime constant current feedback control mode automatically compensates for voltage fluctuations, ensuring consistent welding current.
Its high-power welding transformer features comprehensive water cooling, enabling efficient welding of diverse products and guaranteeing welding quality.
Widely applicable to various stainless steel products, this welding machine offers multifunctional utility.
Technical Data Of The Sink Seam Welder Machine
| Model | WL-FS-MF160K |
| Input Power | Three-phase 380V±10% 50Hz |
| Rated Capacity | 160KVA |
| Rated Duty Cycle | 50% |
| Secondary Voltage | 11V |
| Maximum Secondary Circuit Current | 32000A |
| Insulation Grade Of Welding Transformer | Grade F |
| Welding Wheel Diameter | 100-120mm |
| Welding Wheel Width | 3-5mm |
| Welding Material Thickness | 0.5-1.2mm |
| Welding Arm Length | 500-1000mm (customized) |
| Welding Wheel Speed | 1800-4000mm/min adjustable |
Samples Of The Sink Seam Welder Machine
Description Of Automatic Seam Welding Machine
This automatic seam welding machine replaces the spot welding electrode with circle welding wheel, which is high efficiency and high quality. It basically achieves automation and completely meet the intelligent requirement of human-machine conversation.
Japan Mitsubishi CNC Control System
Adopts three sets of Japan Mitsubishi servo motor to control axis X (movement of sink mould), axis Y (vertical movement of welding wheel), and axis A (360° rotation of welding wheel).
Auto Moving Welding Table
Specially designed electrode large table, more stable conductivity, to ensure the effectiveness of welding.
Big Copper Flat Table Electrode and Fixture
We will design the fixture according to the design of your sink bowl. Different sizes may require different fixtures. Be able to do welding of single bowl, double-bowl, or three-bowl product.
Welding electrode
Synchronized operation of welding electrodes and Moving Welding Table
Automatic welding of sink, Uniform and beautiful welding seam.
Technical Parameter Of The Seam Welding Machine
|
Application Of The Seam Welding Machine
Welding and grinding different shapes of kitchen sink.
Samples Of The Seam Welding Machine
