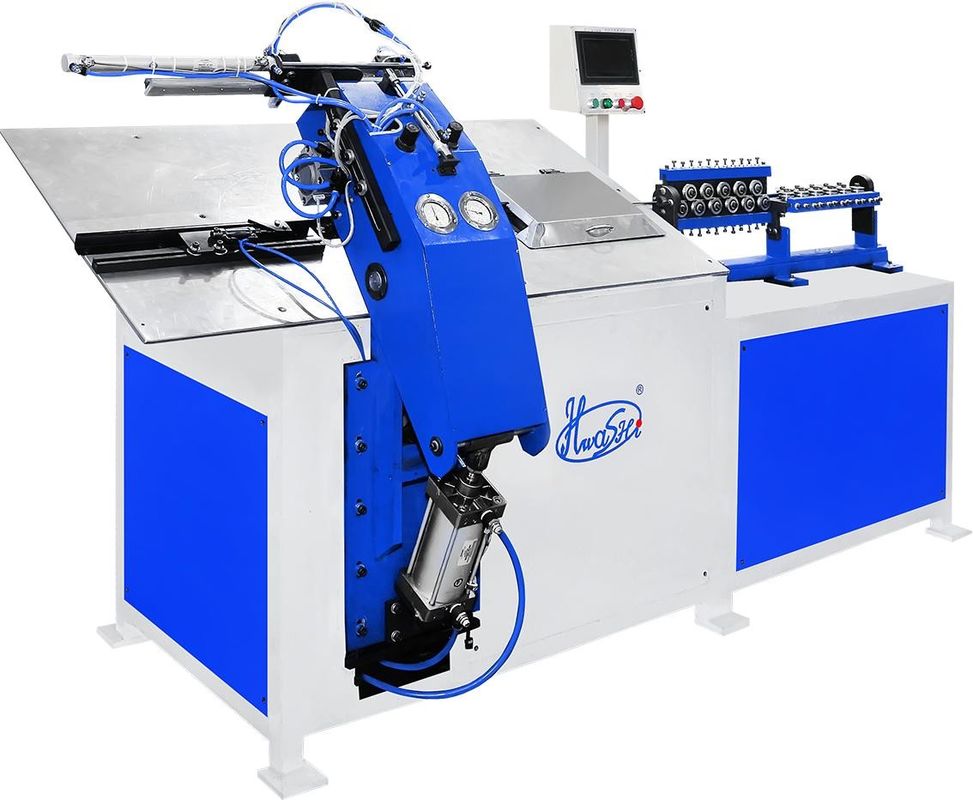

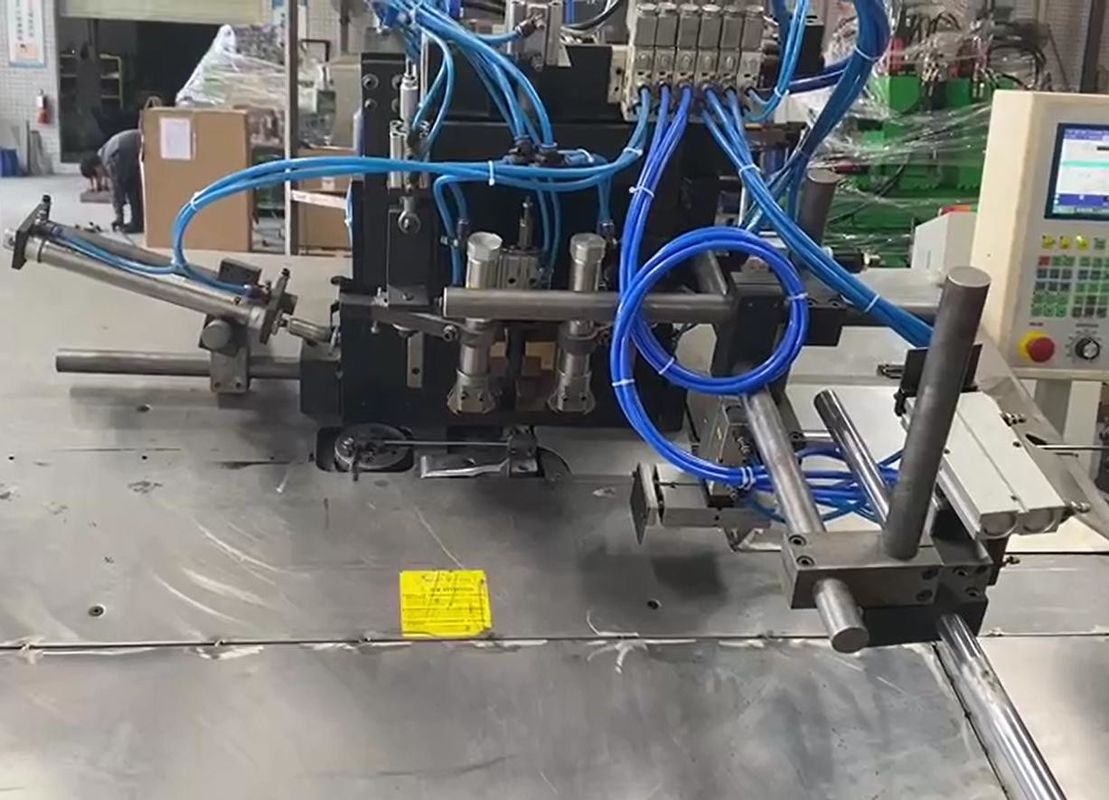

HWASHI CNC 3 Axis 2D Wire Bending and Butt Welding Machine For Wire / Galvanized Wire
Detailed Description Of The Wire Bending and Butt Welding Machine :

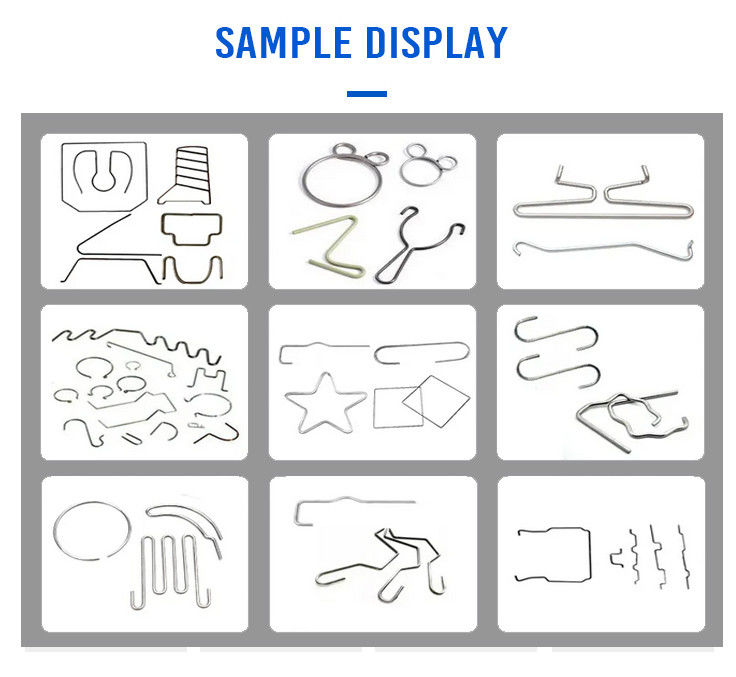

The wire bending and butt welding mchine designs three-axis structure which includes the wire straightening mechanism, cutting mechanism, line pressing mechanism and forming mechanism; The straightening mechanism adopts multiple sets of rollers to press up and down and left and right for straightening. The structure ensures light scratches on the surface of the metal wire, and ensures the straightening of the metal wire and the base formed by bending in half. By using servo Drive wire feeding wheel to move the wire forming position, it can move forward and backward according to the program; Forming mechanism through the folding Angle of the bend, with the work of the wire feeding mechanism, the wire bending into a plane shape; Automatic operation of the equipment after loading. The equipment structure is reasonable, stable and reliable, simple operation, high degree of automation, operators can manage multiple machines at the same time, greatly improve the production efficiency, hardware, network cable manufacturers and other necessary special equipment.
| Technical Data of Of The Wire Bending and Butt Welding Machine | |||
| Machine Model | 2-6 | 3-8 | 5-12 |
| Wire diameter range | Φ2.3-6mm iron wire | Φ4-8mm iron wire | Φ5-12mm iron wire |
| Input Voltage | 380V 50Hz/60Hz | ||
| Servo motor power | Total 2.6KW | Total 4.5KW | Total 7.5KW |
| Cylinder Cutting force | Φ7.0 iron wire | Φ9.0 iron wire | Φ12.0 iron wire |
| Oil pressure range | 0.3-0.6Mpa | 0.3-1Mpa | 0.3-1Mpa |
| Hydraulic oil model | 46#/68# | ||
| Wire Range | Round, square, flat wire (suitable for any material wire) | ||
| length of wire feeding wire | According to the user setting | ||
| Store data | 50 sets of data, a set of 300 actions | ||
| Max. Wire Feed Speed | 50M/Min | 20M/Min | 11M/Min |
| max. bending speed | 300 rpm /Min Angle±180º | ||
| Bending accuracy | ±0.5mm | ||
| Wire feeding accuracy | ±0.5mm | ±1.0mm | |
|
|
|
Wire Shelf Automatic Welding Machine This is the full automatic wire shelf welding machine which can do automatic wire filling, welding and unloading. We can design the welding machine according to your product and efficiency requirement. |
High Speed Wire Straightening and Cutting Machine This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. |
|
|
|
Wire Frame Bending Machine This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate. |
Wire Frame Butt Welding Machine The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively. |
|
|
|
Wire Frame Double T-Butt Machine This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. . We can also design the automatic moving and welding application. |
Wire Edge Trimming Machine After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.
|
|
|
|
2D Wire Handle Bending Machine This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould. |
3D Wire Bending Machine This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould. |
