Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station

Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station

beam welding machine

6 Axis Robot Arm

tig welding robot

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

According to your product

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station
Application:
Inflatable Cabinet
Size:
According To Your Product
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

HWASHI Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station

Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station 0

Desription Of The RMU Air Tank TIG welding robot arm kit station

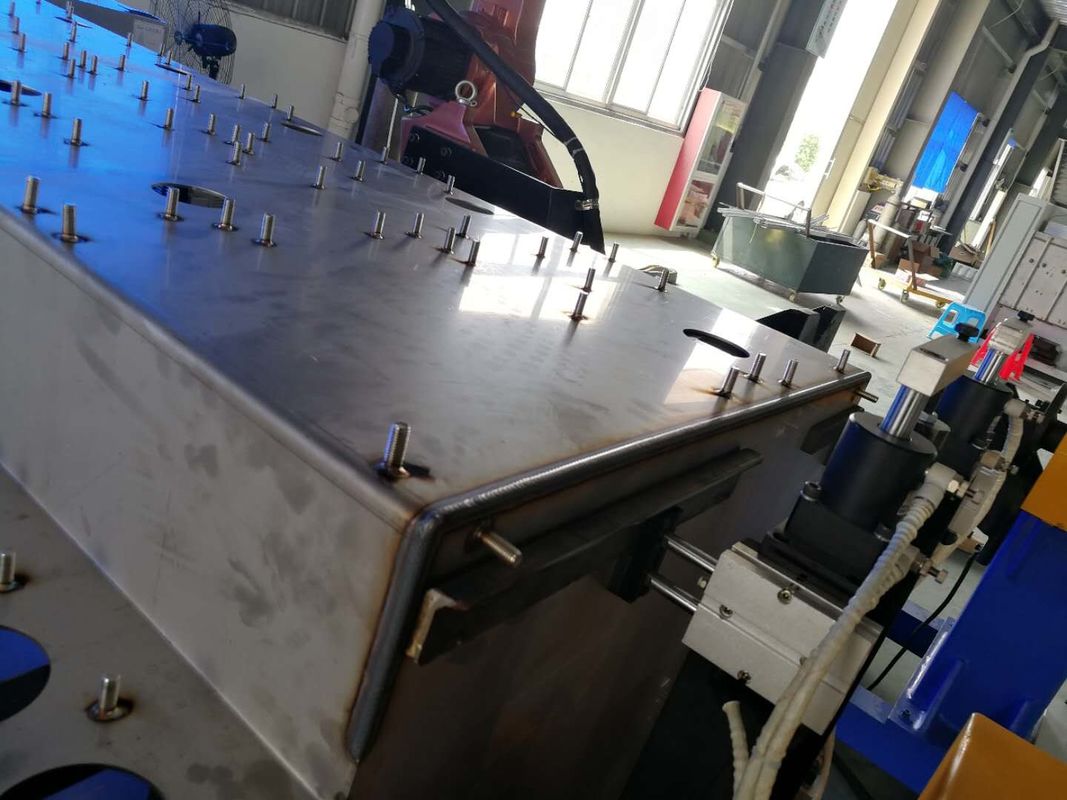

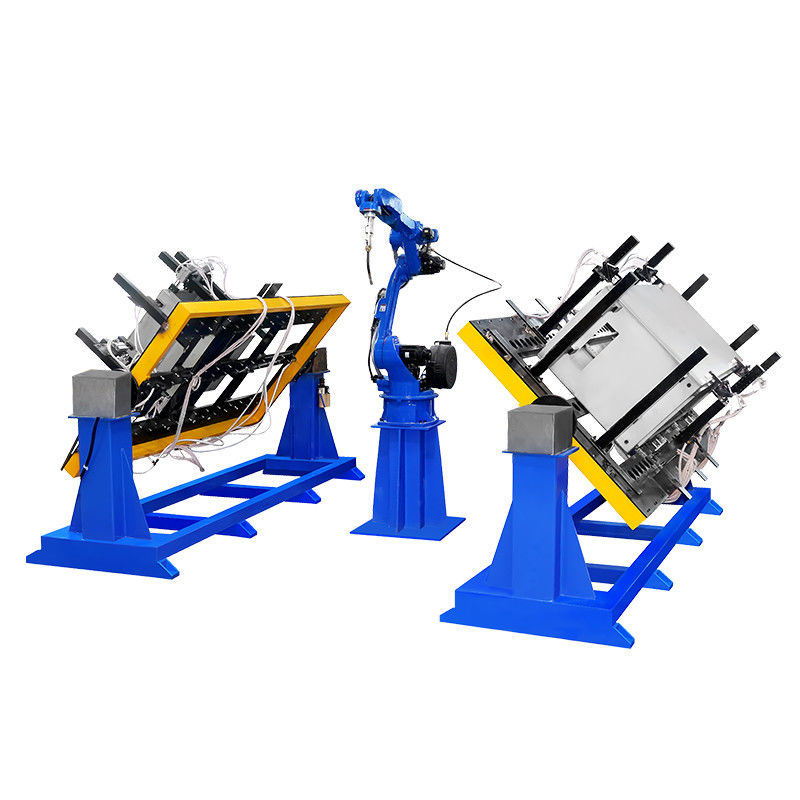

The RMU Air Tank TIG welding robot arm kit station is designed for inflatable cabinet. It adopts 6 axis robot with TIG welder for automatic welding and uses cylinder to clamp the work piece and the lever principle to fix the product, which ensure the location requirement for robotic automatic welding and each position could be welded. And the fixture is designed with 2 sets in order to meet the production requirement. One set for loading, one set for welding.



Workflow Of The Chair Welding Station

1) Manual loading of the workpiece to the fixture in Station 1 fixed table;

2) Start welding;

3) The robot and welding machine will do welding on the workpiece according to the presetting program;

4) Welding completed;

5) While the station 1 is being welded, station 2 is being loaded and fixed the work piece synchronously. Two stations work alternately.

6) Cycle working

Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station 1.

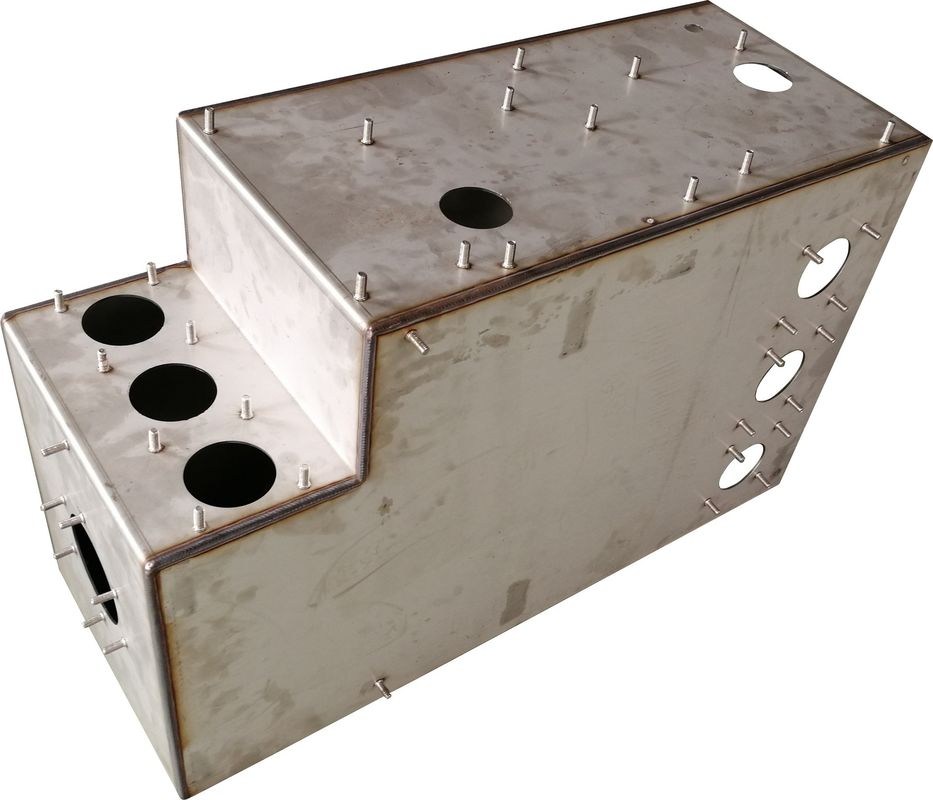

Application And Samples Of The Chair Welding Station

Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station 2



Other Equipment Related To The Chair Welding Station

Welding positioner
1. It can work in coordination with the robot to ensure constant welding speed and attitude and provide higher welding quality.

2. Use imported servo motor with high precision reducer, high rotary accuracy, accurate positioning, and strong bearing capacity.

3. By turning the workpiece fixed on the worktable to the required welding angle.

Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station 3

Provide the 7th axis of the customized machine

1. Increase the working range of the robot to solve the disadvantages of limited working range caused by limited movement range of the robot.

2. Robot slide rail installation: the robot can walk alone or walk with matching welding power supply and robot control cabinet as a whole according to the on-site working conditions of customers.

3. Special protective mechanism to prevent welding spatter or dust in the air which will cause bad impact of precision parts.

4. In order to adapt to the different conditions of different customers, be able to do different configuration and installation for customer.

Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station 4

Robot Integration

In addition to HWASHI robot systems, we can also integrate with international brands of robot to provide complete welding robot solutions.

Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station 5



Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station 6

Robot Cases and Welding Samples

Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station 7

Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station 8

Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station 9Steel Construct Beam Welding 6 Axis Robot Arm RMU Air Tank TIG Welding Robot Arm Kit Station 10
