MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine

MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine

mig welding robot

mig robot

robotic laser welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

according to your product

Contact Us
Request A Quote
Product Details
Product Name:
Hwashi MIG Welding Robot For Rubbish Bin With Laser Seam Tracking, Robotic Laser Welding Machine
Application:
Aluminum Welding And Normal Steel Welding And Laser Welding
Size:
According To Your Product
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

HWASHI MIG Welding Robot For Rubbish Bin With Laser Seam Tracking, Robotic Laser Welding Machine

MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 0

Desription Of The MIG Welding Robot For Rubbish Bin

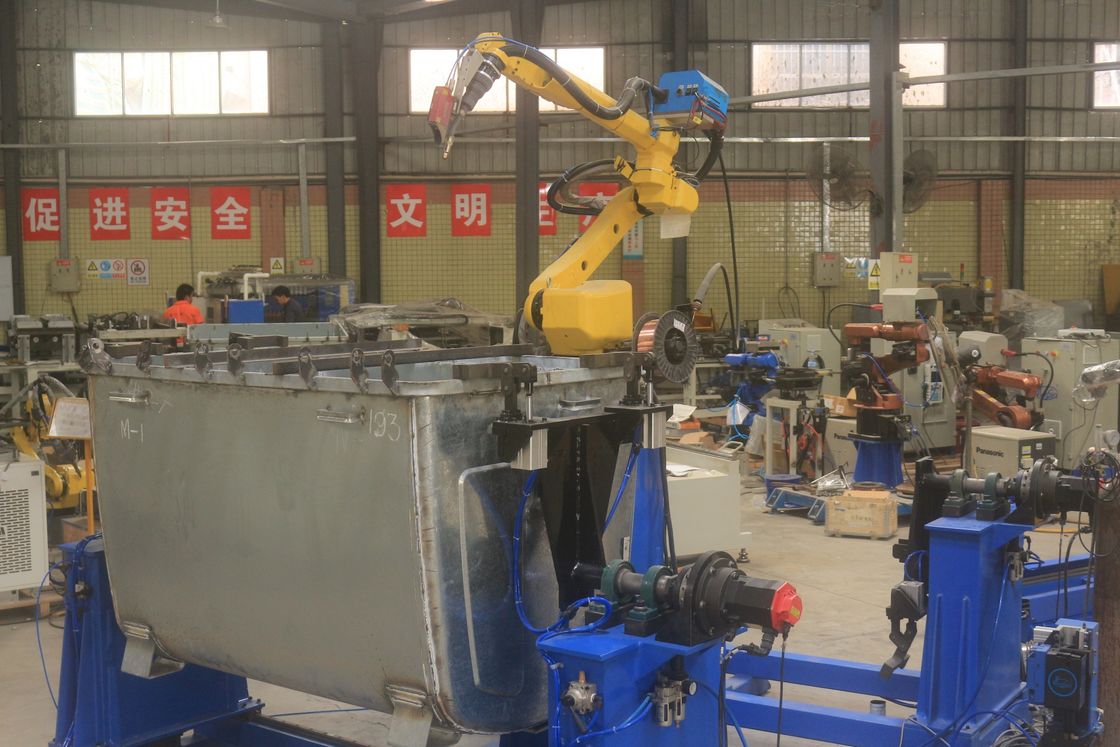

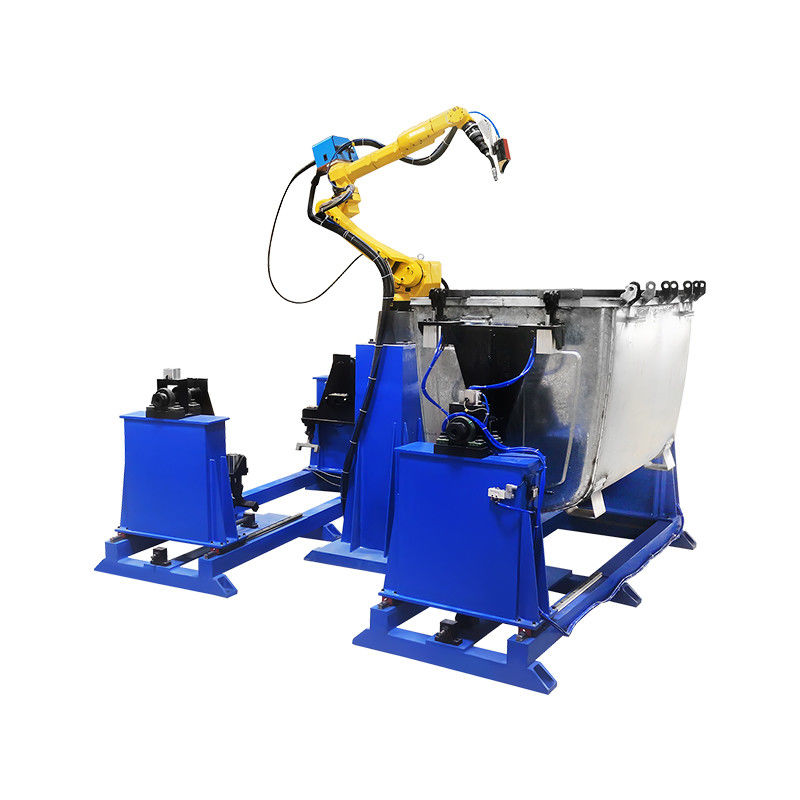

This welding robot is designed for welding container. The product size is within 1600x1100x1000mm and weight is 120kg with material thickness of 2mm. Adopt 6 axis robot with 2m arm. And adopt MIG welder which can do both aluminum welding and normal steel welding and laser welding seam tracking system for automatic welding. Use cylinder to clamp the work piece.

MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 1

M10iA/8L Robot Arm



Despite being significantly lighter and slimmer than its predecessor, this new material-handling robot is capable of moving heavier parts within a larger work envelope. In addition to its increased load capacity and reach, the M-10iA/8L uses considerably less energy than the older model and boasts a cost efficient modular design.



1) Max. Payload:8KG
2) Repeated Positioning Accuracy: ±0.04mm
3) Max. Covering range (mm): 2028


MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 2


Positioner Structure


Use 45 steel structure to provide stress supporting point and working platform for other actions. Equip with servo motor to do 360°vertical rotation.

MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 3
SAF digipuls II 420 Welder


• Fully digitally controlled inverter: for process repeatability and consequently higher welding quality and simpler regulation
• In Synergic mode, more than 100 synergies are available
• Soft switching inverter (increased efficiency of the power source)
• Full range of processes
• Powerful installation up to 420 A at 60%
• Full A1 automatic interface.



MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 4

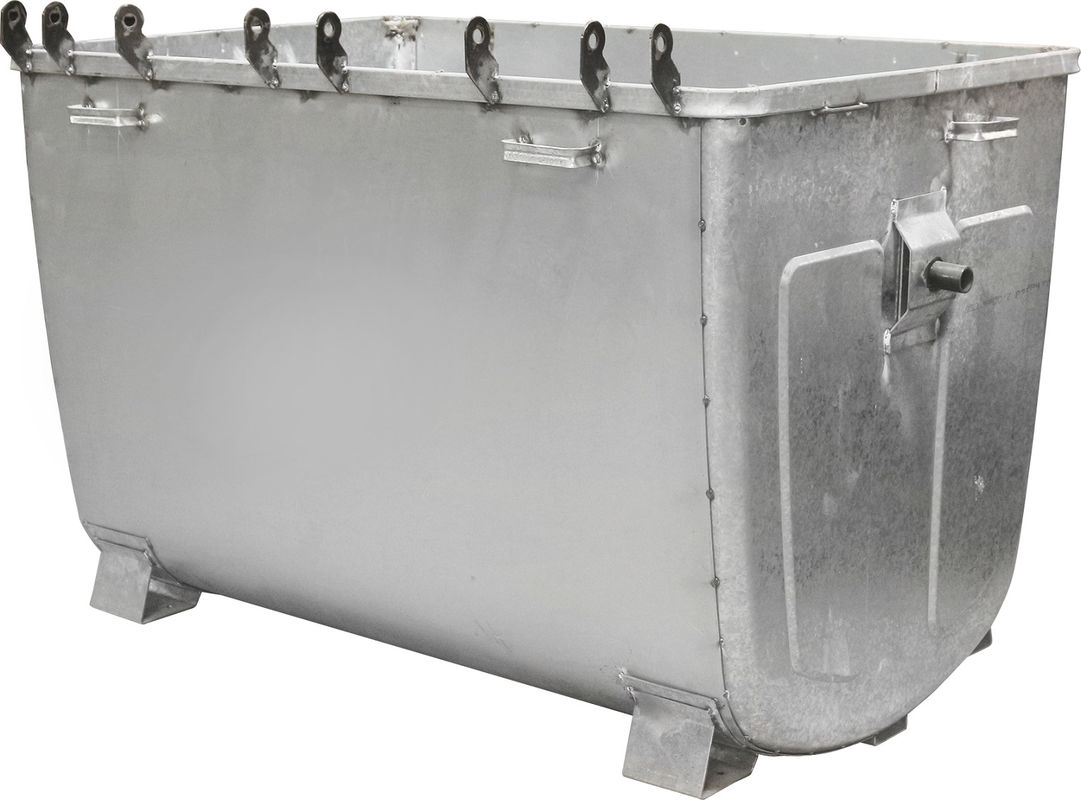

Application And Samples Of The MIG Welding Robot For Rubbish Bin

MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 5MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 6

MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 7

Welding positioner
1. It can work in coordination with the robot to ensure constant welding speed and attitude and provide higher welding quality.
2. Use imported servo motor with high precision reducer, high rotary accuracy, accurate positioning, and strong bearing capacity.
3. By turning the workpiece fixed on the worktable to the required welding angle.

MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 8

Provide the 7th axis of the customized machine
1. Increase the working range of the robot to solve the disadvantages of limited working range caused by limited movement range of the robot.
2. Robot slide rail installation: the robot can walk alone or walk with matching welding power supply and robot control cabinet as a whole according to the on-site working conditions of customers.
3. Special protective mechanism to prevent welding spatter or dust in the air which will cause bad impact of precision parts.
4. In order to adapt to the different conditions of different customers, be able to do different configuration and installation for customer.

MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 9

Robot Integration
In addition to HWASHI robot systems, we can also integrate with international brands of robot to provide complete welding robot solutions.

MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 10


MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 11

Robot Cases and Welding Samples


 MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 12

MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 13

MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 14

MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 15MIG Welding Robot For Rubbish Bin With Laser Seam Tracking Robotic Laser Welding Machine 16
