Description

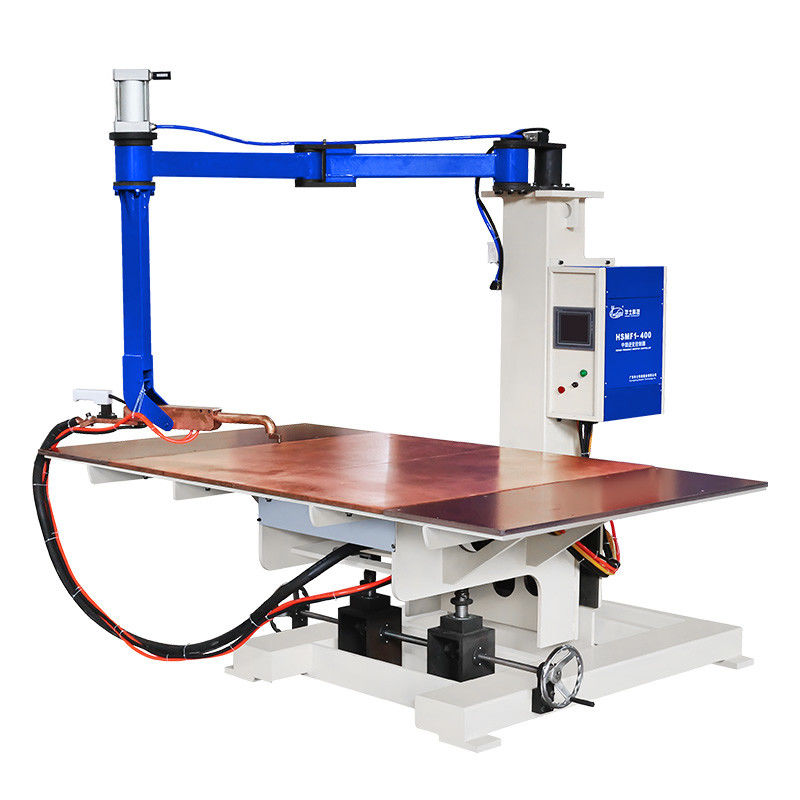

The MF DC Crank-Arm Multipoint Sheet Metal Table Spot Welding Machine uses the principle of Robotic. Multiple elbow active machine arm adopts automatic mobile mode to be moved to a welding position as per the welding requirement. The machine is of easy operation, convenient and flexible to use. The welding characteristic is that it adopts double-side single point welding mode, with a fully flat design for lower welding electrode. It is applicable for welding multiple-point product on a flat surface. It can effectively guarantee smooth welding on product surface and consistency of welding spots.

Intelligent welding control system Intelligent Touch Screen Controller Input and read welding parameters.	Welding platform Oversized copper plate operating table for welding various sheet metal door panels.
Horizontal Welding Gun The H-gun is a long horizontal gun suitable for welding complex workpiece shapes and deep areas. It is possible to weld as desired while moving the gun freely on the table electrode.	Vertical Welding Gun The V-gun is the most suitable gun for welding deep box products that are closed on all sides. The tip of the gun has a crank shape that makes it easy to aim at the edge of the workpiece. It can also apply pressure directly to the surface, making it ideal for welding nuts, screws, and bosses.

Features

1. Labor saving: With the table spot welder, if the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The two guns move freely, allowing easy access to the desired welding point by one person.
2. Reduces set-up time: Unlike conventional stationary spot welders, this system significantly reduces the need for ancillary work such as electrode adjustment and workbench set-up, contributing to a reduction in overall welding man-hours.
3. Easy to set welding parameters:The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily.

4. Comfortable working position: There is no need to hold the workpiece during welding; it can simply be placed on the table-type electrode. Pressurization is also automatic, greatly reducing the physical burden on the operator. The amount of work that can be done per unit time is also dramatically increased. Can also weld nuts and screws: Welding can be done efficiently by changing the electrode tip according to the type and size of nut, etc.

Parameter

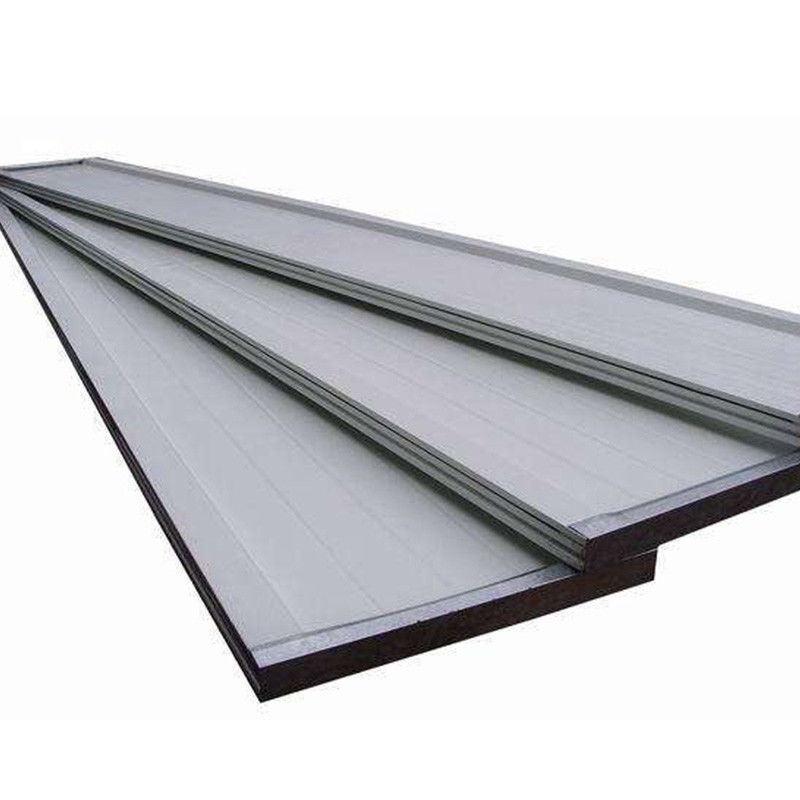

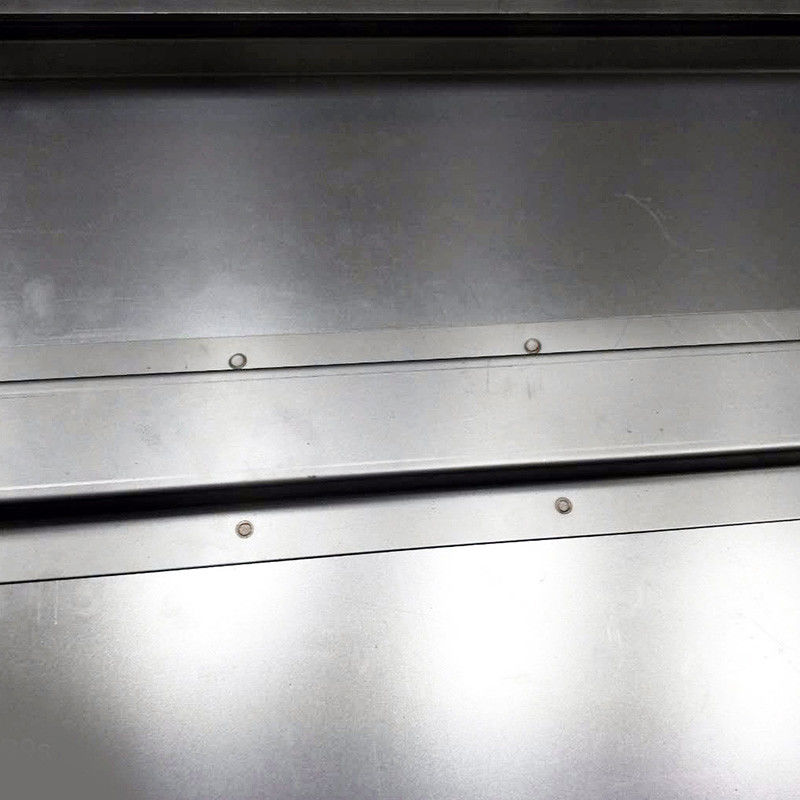

Welding samples
