Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
According to your product

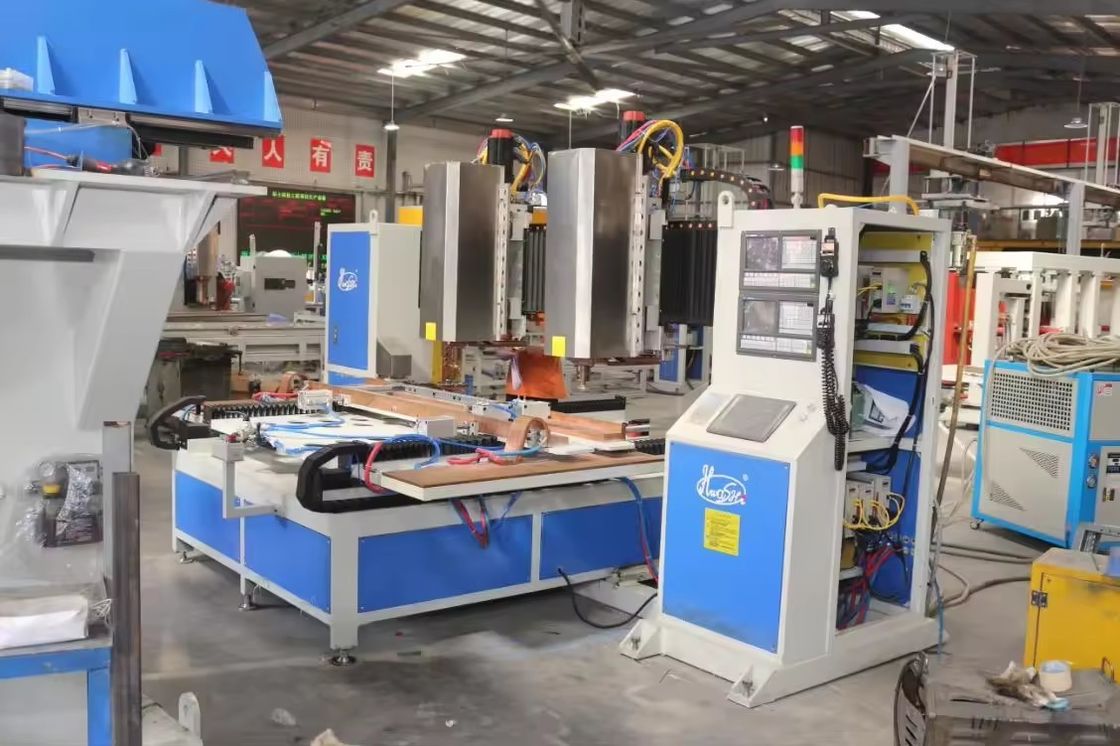

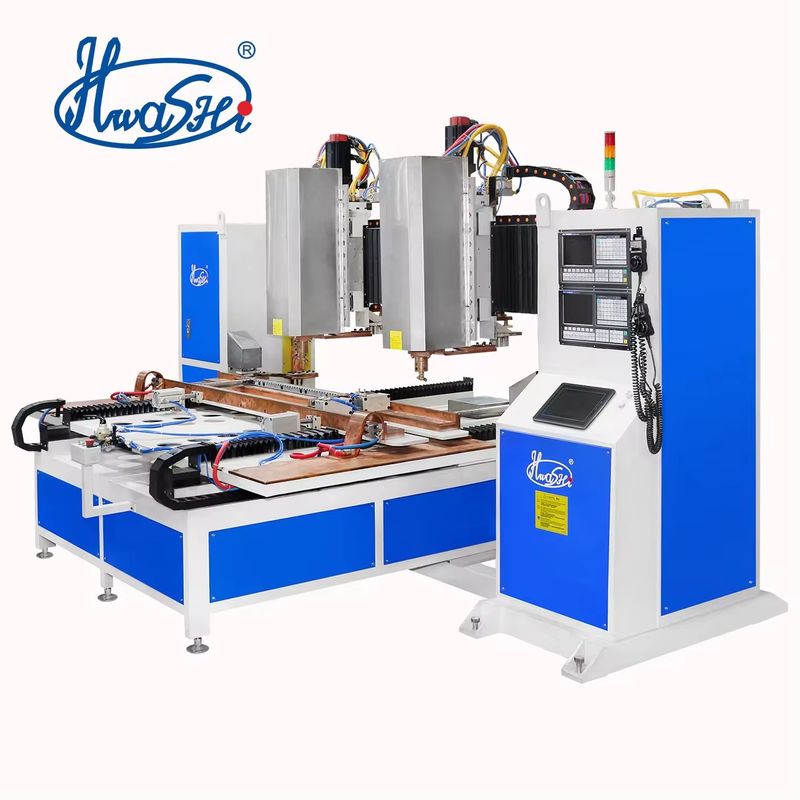

Hwashi CNC 7 Axis Double Heads Sheet Metal Spot Welding Machine, Automatic sheet metal welder for Squat Rack
Product Description Of The 7 Axis Double Heads Sheet Metal Spot Welding Machine

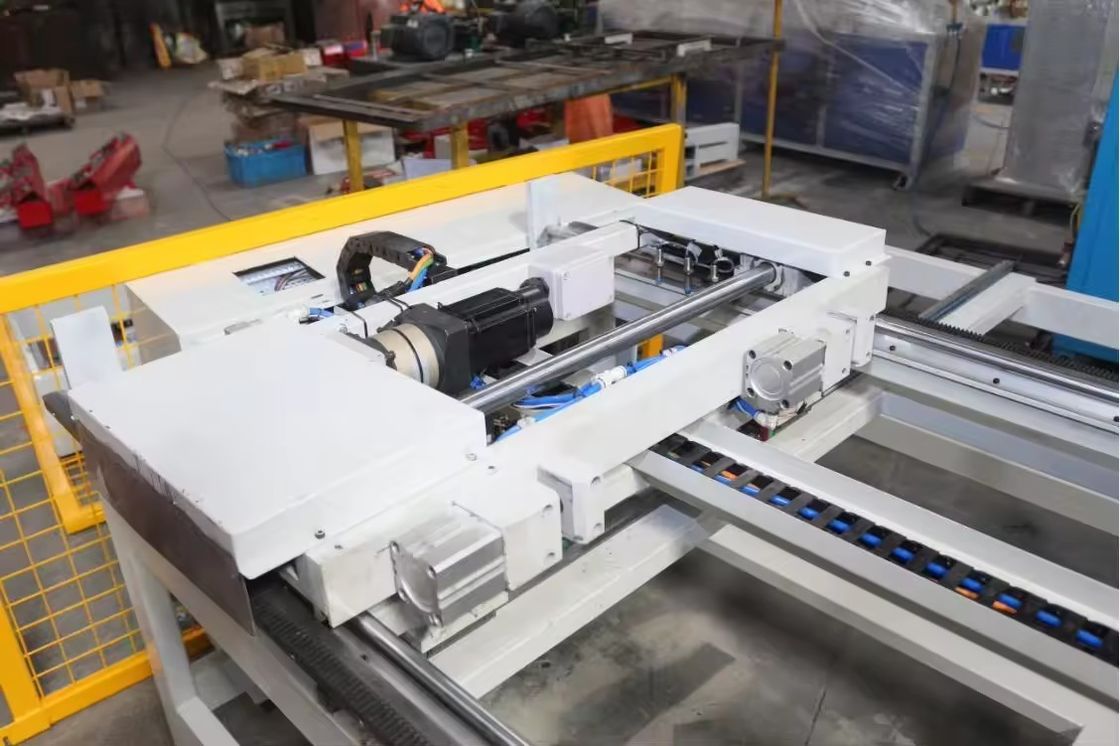

This machine is customized according to your welding requirement and your product specifications. The machine adopts two sets of welding mechanism through the CNC servo system, including X direction mobile welding, Y direction of the table movement, through the XY direction to achieve welding of different positions. Welding mechanism can also Z direction lifting and A direction rotation, with CNC system to control seven asix to achieve the movement of different positions for the welding mechanism.
Welding Heads and Fixtures
Processing and design according to the drawings of each wire shelf product. (customized)
Features Of The 7 Axis Double Heads Sheet Metal Spot Welding Machine
The equipment welding power supply adopts medium frequency inverter power supply. The equipment can realize the automatic welding production of the workpiece, automatically move and weld according to the position set by the program, and the operator only needs to manually load and unload the product. The equipment improves the product quality and production efficiency, reduces the production cost, solves the defects such as the unstable quality of manual work and low production efficiency, and the production efficiency and automation degree are high.
|
NO
|
ITEM
|
PARAMETER
|
|
1
|
Rated Power
|
120KVA*2
|
|
2
|
Duty Cycle
|
50％
|
|
3
|
Frequency
|
1000HZ
|
|
4
|
Effective welding length
|
1200mm
|
|
5
|
Effective welding width
|
2200mm
|
|
6
|
Welding Driving Power
|
Servo System
|
|
7
|
Max. Moving Speed
|
500mm/s
|
|
8
|
Machine Dimension
|
L3800mm*W2600mm
|
|
9
|
Rated Air Pressure
|
0.6MPa
|
|
10
|
Water Temperature
|
10-25℃
|

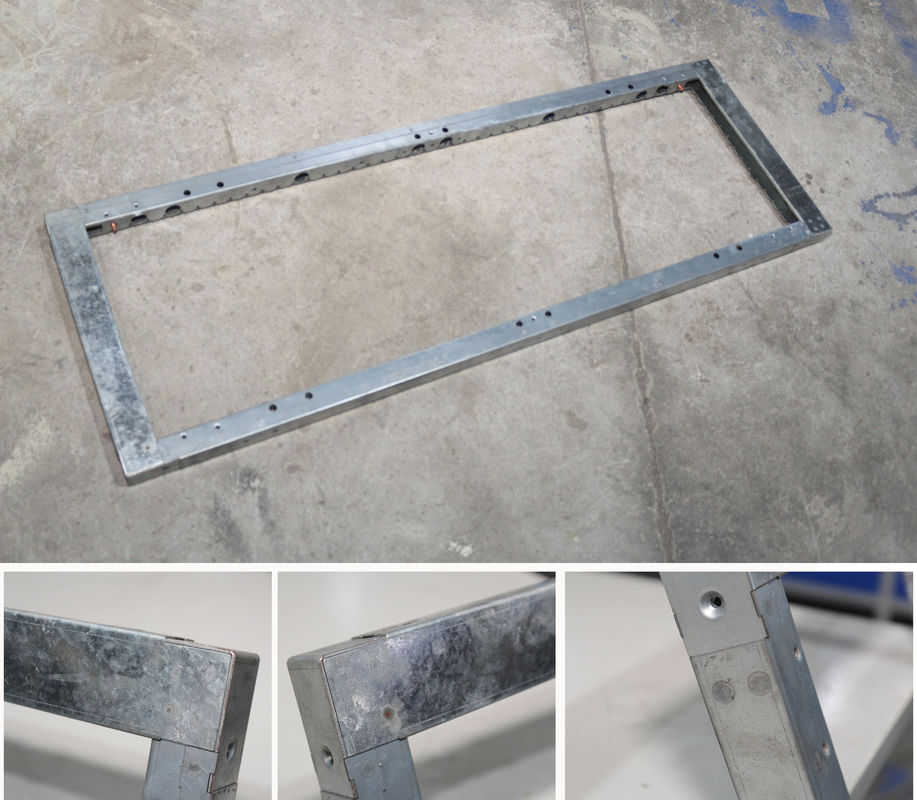

Application And Samples Of The 7 Axis Double Heads Sheet Metal Spot Welding Machine
Mainly used for welding low-carbon steel, low-alloy steel, stainless steel, coated steel, plate and round steel that cannot be or inconveniently welded by general fixed welders. It is widely used in industries such as automobiles, civil sheet metal, anti-theft doors, cabinets, and household.
