XY Axis Spot Welding Machine For Sheet Metal Mobile Spot Welder

mobile spot welder

XY Axis Spot Welding Machine

Mobile Spot Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

According to your product

Request A Quote

Product Details

Product Name:

HWASHI Precision XY Mobile Spot Welding Machine, Suitable For Sheet Metal Sheet Efficient Production

Application:

Welding Of Sheet Metal

Size:

According To Your Product

Condition:

New

Warranty:

12months

Certificate:

CE/CCC/ISO

Service Life:

8-10 Years

Weight:

480kg

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder

Get Best Price

Video

50Hz Frequency Door Plate Spot Welding Machine for Steel/Aluminum Material

Get Best Price

Video

8-10 Years Service Life Door Panel Spot Welder for 220V/380V Power Supply and Durable

Get Best Price

Video

High Speed Door Panel Spot Welding Machine For Manufacturing Industry And 8-10 Years Service Life

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

HWASHI Precision XY Mobile Spot Welding Machine, Suitable For Sheet Metal Sheet Efficient Production

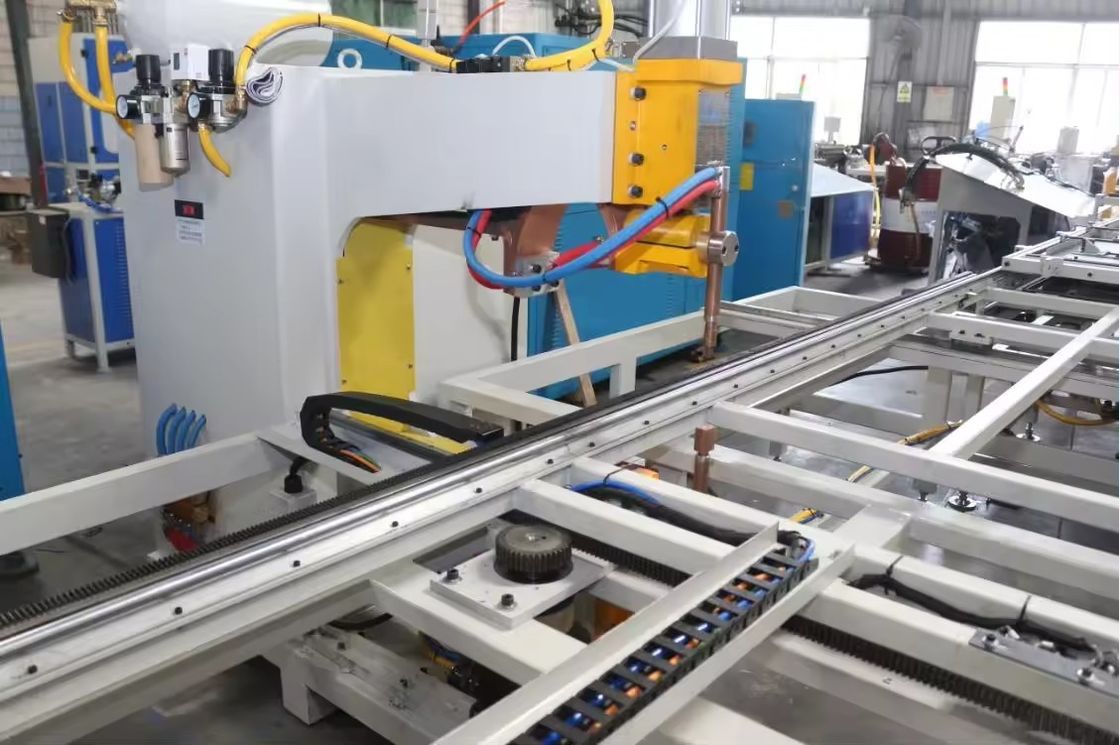

XY Axis Spot Welding Machine For Sheet Metal Mobile Spot Welder 0

Product Description Of The XY Mobile Spot Welding Machine

According to the specification provided by our customer, we adopt the design of single-electrode X, Y axis automatic mobile type welding machine which can be matched with different welding fixtures. The operator only needs to input the parameters like the coordinate data and welding current, then the machine will conduct automatic welding after start. Workers only need to put and take the work piece manually. This machine is of simple structure which will make the assembly very easy. It also can be matched with different welding equipment. The servo motor will drive the X and Y axis to run within the preset PLC programming. It can max store 5000 welding spots. This machine is suitable for batch welding of Sheet Metal.

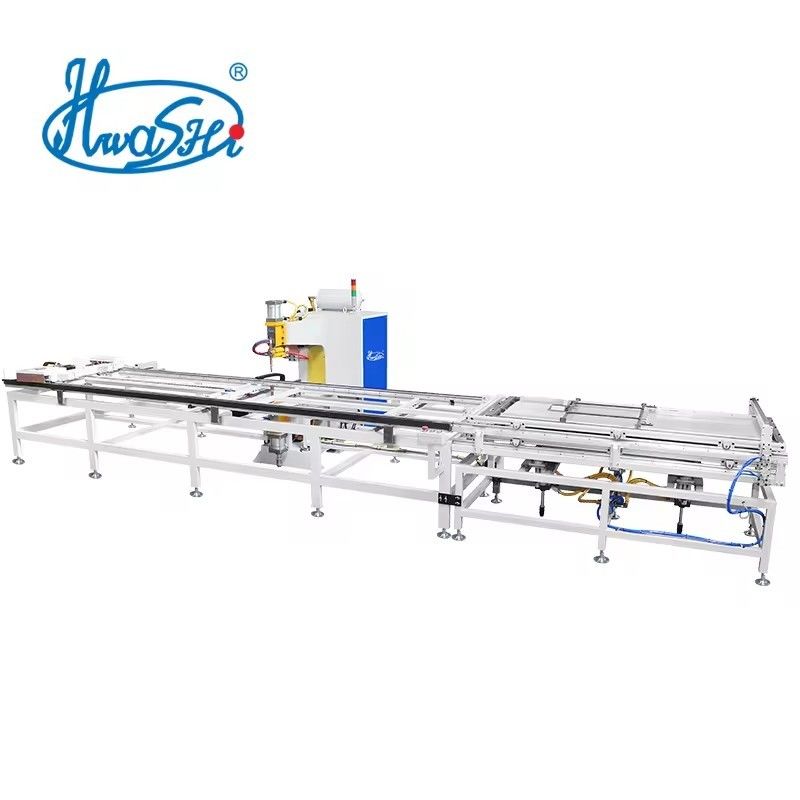

XY Axis Spot Welding Machine For Sheet Metal Mobile Spot Welder 2

Feature Of The XY Mobile Spot Welding Machine

The Welding spots are good in looking, firm, and stablity and reliability.
Well consistency of welding spots.
Wide application.
The machine, electricity and other mechanism could be reasonably assembled.
It could be used to weld other similar products after relevant modification of microcomputer data program.
One machine could serve several purposes. Design Working Life: 8-10 years.

Specification Of The XY Mobile Spot Welding Machine

Items	Data
Cable Requirent	Three-phase 380V/50mm²/160A
Rated Capacity	100KVA*2
Duty Cycle Rate	50％
Frequency	1000HZ
Control Heat Adjusting Range	15%～99%
Max. Output Voltage	DC7.8V
Secondary Max. Short Circuit Current	20KA
Program Section Time Adjusting Range	0～999ms
Welding Schedule	32 types

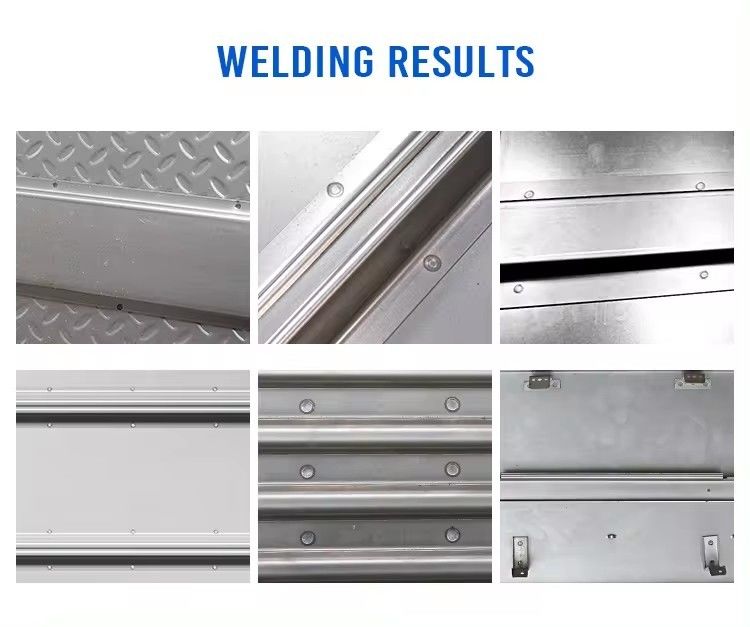

Application And Samples Of The XY Mobile Spot Welding Machine

This machine is extremely suitable for welding metal sheet in electronic appliances,automobile and other industries.

XY Axis Spot Welding Machine For Sheet Metal Mobile Spot Welder 4

XY Axis Spot Welding Machine For Sheet Metal Mobile Spot Welder 5

XY Axis Spot Welding Machine For Sheet Metal Mobile Spot Welder 6
