CNC Automatic Mobile Double-Head Multi Head Spot Welding Machine For Door Panel

CNC Automatic Mobile Double-Head Multi Head Spot Welding Machine For Door Panel

Double-head spot welding machine

spot welding machine for Door Panel

multi head spot welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SF-MF75K

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI 3-8mm CNC Automatic Condenser Bundy Tube Bending Machine
Application:
Welding For Sheet Metal
Size:
2440x800x1580mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
480kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

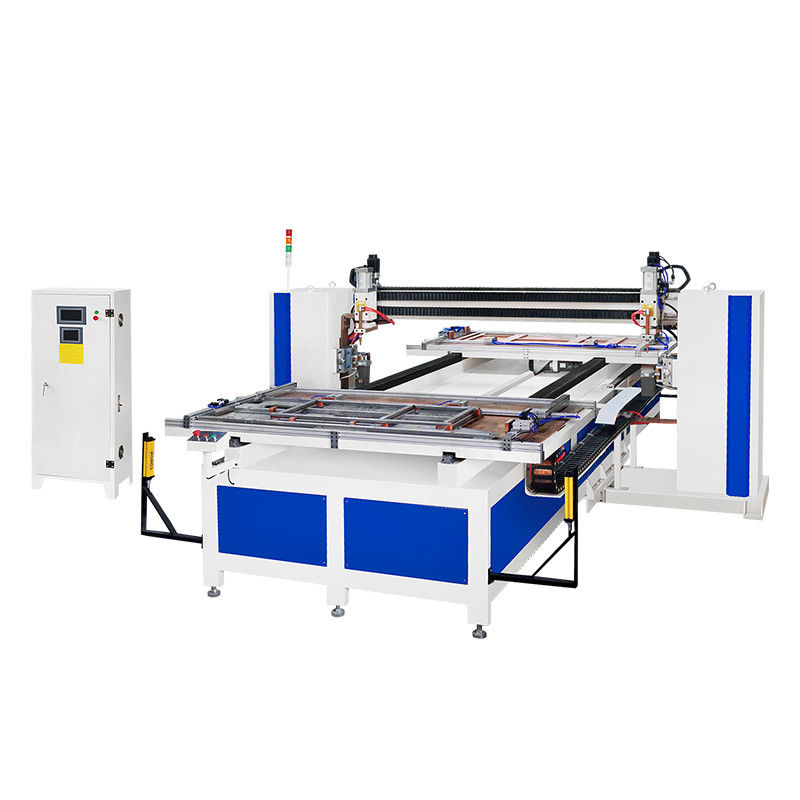

CNC Automatic Mobile Double-head Welding Machine for Door Panel

CNC Automatic Mobile Double-Head Multi Head Spot Welding Machine For Door Panel 0



Description Of The Mobile Double-head Welding Machine

According to the product, and the characteristics of long secondary of automatic moving, we recommend choosing medium frequency power supply system. Lower electrode adopts full flat locating method, moving along with the Y-axis direction; The left and right side of platform has been equipped with one electrode respectively, and it will move along with the X-axis; Each welding head is equipped with one set of welding power source arranged in a straight line. After loading the work piece, start welding. The platform moves along with the Y-axis direction to the welding position as per preset position program. Then the welding heads move from both sides toward middle and weld this row. After welding this row, moves in Y-axis direction to another row. In the meantime, both sides of the platform work circularly until complete the welding.

CNC Automatic Mobile Double-Head Multi Head Spot Welding Machine For Door Panel 1CNC Automatic Mobile Double-Head Multi Head Spot Welding Machine For Door Panel 2

Servo Drive Double Welding Head
The two welding heads can be moved on the beam from left to right automatically. While the table could move in Y axis automatically. So the machine can be applied to welding the product with different welding position. Flexible in using.

Automatic Moving Table
Be able to choose the two welding tables located from the same side or different side. We may design the machine according to your product drawings.





This machine can complete loading and fixing the work piece at one time; It can automatically move and weld as per preset location; Electrodes can automatically enter grinding system to repair and maintain the electrodes; It can be better to guarantee stable welding points, improve products quality and production efficiency and reduce production cost. It solves the instable quality and low production efficiency defect of manual job; The maximum flat table size is 2000 x1000mm.



Specification Of The Mobile Double-head Welding Machine

S.N Items WL-SF-MF75K
1 Input Voltage 380v,3-Phase
2 Input Power 50KVAx2
3 Input Current 150 A
4 Output Voltage DC5.5 V
5 Max.Welding Current 15000 Ax2
6 Welding Specification 101 Kinds
7 Different Welding Current 5000
8 Effective Size Of Welding Platform 2000mmx1000mm
9 X Axis Effective Width 850 mm
10 Y Axis Effective Width 600 mm
11 X Axis Servo Motor 2 Sets
12 Y Axis Servo Motor 2 Sets
13 Feeder Moving Speed 800 mm/sec
14 Servo Motor Power 450 W
15 Welding Cylinder 2 NO.(80x50mm)
16 Upper Welding Electrode 2 Sets
17 Lower Electrode full flat table

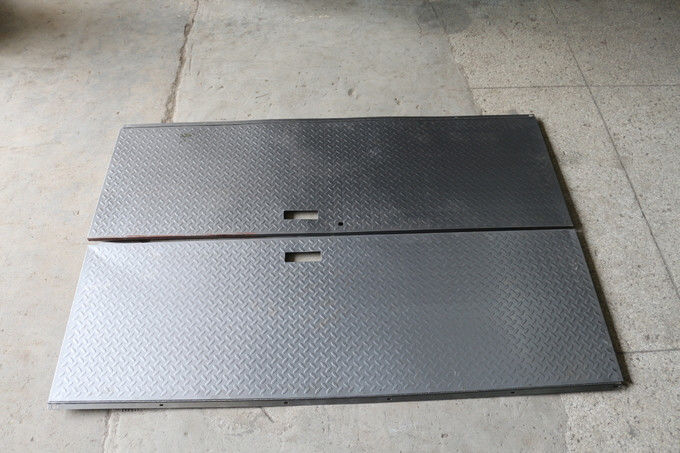

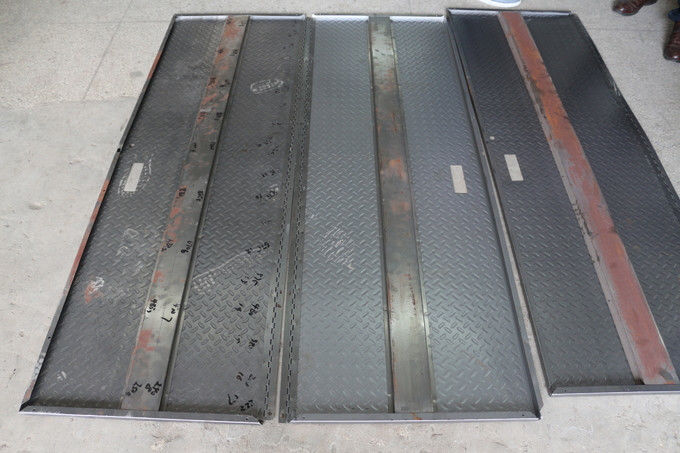

Appkication And Samples Of The Mobile Double-head Welding Machine

This machine is extremely suitable for welding metal sheet in electronic appliances,automobile and other industries.

CNC Automatic Mobile Double-Head Multi Head Spot Welding Machine For Door Panel 3CNC Automatic Mobile Double-Head Multi Head Spot Welding Machine For Door Panel 4



Competitive Advantage Of The Mobile Double-head Welding Machine

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help the customers to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery

6. Prompt Response to Customers: Your satisfaction is the goal Hwashi pursue

CNC Automatic Mobile Double-Head Multi Head Spot Welding Machine For Door Panel 5CNC Automatic Mobile Double-Head Multi Head Spot Welding Machine For Door Panel 6
