HWASHI 165KG Payload Sheet Metal Spot Welding Machine
Desription Of The Spot Welding Robot
The spot welding robot can be combined with MIG welding machine, TIG welding machine, spot welding,aluminium welding machine and laser welding machine.
|
Model |
HS-R6-08 |
HS-R6-10 |
HS-R6-20 |
HS-R6-50 |
HS-R6-165 |
|
|
DOF |
6 |
|||||
|
Driving Mode |
AC Servo Driving |
|||||
|
Effective Load |
8KG |
10KG |
20KG |
50KG |
165KG |
|
|
Repeat Accuracy |
±0.05mm |
|||||
|
Working radius |
1400mm |
1589mm |
1595mm |
1950mm |
2483mm |
|
|
Weight |
180KG |
180KG |
290KG |
600KG |
1300KG |
|
|
Motion Range(°) |
J1 |
±170 |
±170 |
±170 |
±180 |
±180 |
|
J2 |
±120~-85 |
±120~-80 |
±132~-95 |
±130~-90 |
±80~-60 |
|
|
J3 |
±85~-165 |
±85~-165 |
±73~-163 |
±75~-210 |
±80~-190 |
|
|
J4 |
±180 |
±180 |
±180 |
±360 |
±360 |
|
|
J5 |
±135 |
±135 |
±133 |
±115 |
±115 |
|
|
J6 |
±360 |
±360 |
±360 |
±360 |
±360 |
|
|
Max Speed(°/s) |
J1 |
130 |
130 |
147 |
158 |
100 |
|
J2 |
130 |
130 |
100 |
149 |
90 |
|
|
J3 |
130 |
130 |
135 |
130 |
104 |
|
|
J4 |
270 |
270 |
300 |
215 |
144 |
|
|
J5 |
170 |
170 |
198 |
251 |
160 |
|
|
J6 |
455 |
455 |
194 |
365 |
215 |
|
|
Power |
4KVA |
4KVA |
6KVA |
14KVA |
31KVA |
|
|
Voltage |
380V or 220V |
|||||
|
Frequency |
50Hz or 60Hz |
|||||

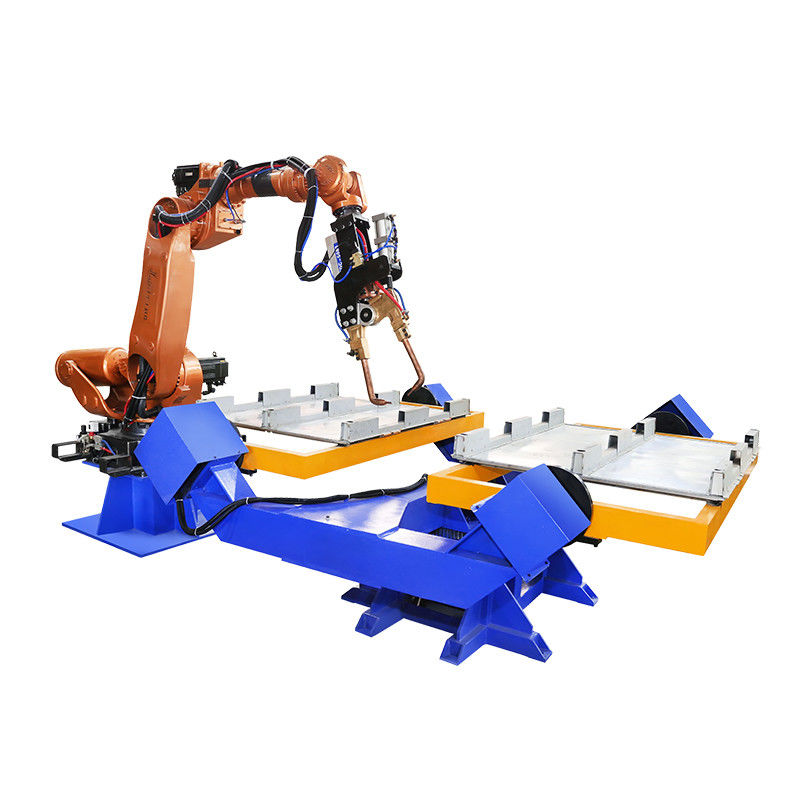

Workflow Of The Spot Welding Robot
1) Manual loading of the workpiece to the fixture in Station 1 fixed table;
2) Start welding;
3) The robot and welding machine will do welding on the workpiece according to the presetting program;
4) Welding completed;
5) While the station 1 is being welded, station 2 is being loaded and fixed the work piece synchronously. Two stations work alternately.
6) Cycle working
Welding Processes Of The Spot Welding Robot
HWASHI robots provide maximum workina range and canbe installed from multiple andles to improve the flexibility of the system, The mechanical arm can instal various types of welding torches. arious welding power sources can be matched to meet diferent weldingrequirements and realize various welding processes.
Application Effect Of The Spot Welding Robot
1. Double-station fixed table layout can realize long time continuous welding, welding efficiency and welding quality has been significantly improved;
2. The fixed table realizes the workpiece clamping at one time, and automatically realizes the alternating welding of product, so that the deformation is effectively controlled.
3. This machine can achieve automatic welding with manually loading material. It can also improve the welding quality and welding efficiency. What’s more, it can reduce the production cost. The problem of unstable quality and low production efficiency caused by pure manual operation has been solved.
4. Robot replace manual welding. Welding industry is a high-risk industry, high temperature, arc light and welding smoke have a certain impact on the physical and mental health of workers;
5. It is an inevitable trend to use robots to replace welding robots in welding, which is not only the promotion of the market, but also the requirement of technological upgrading.

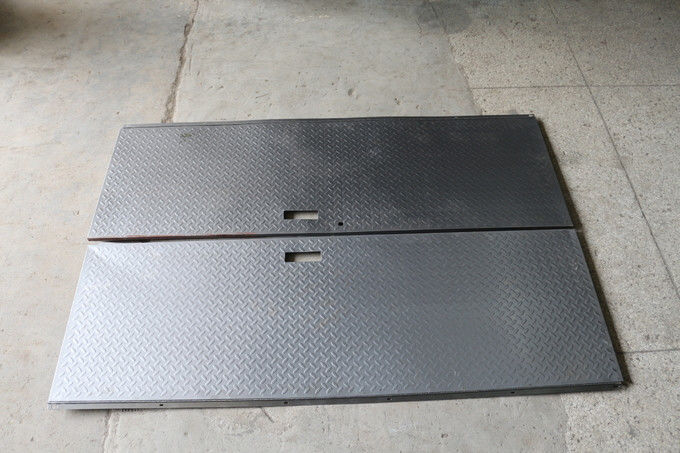

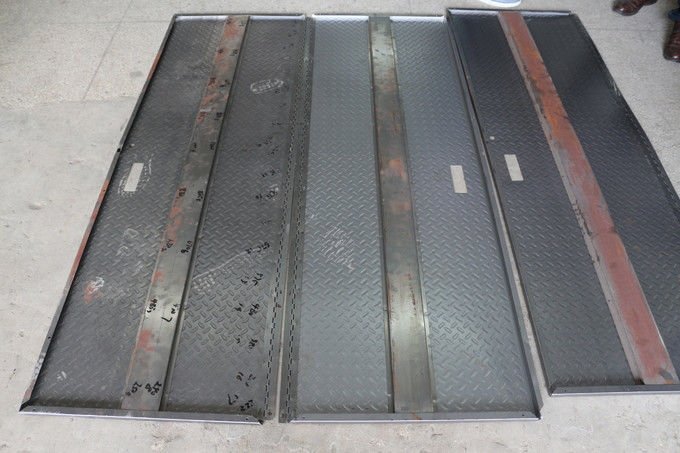

Welding Samples Of The Spot Welding Robot
Other Equipment Related To The Spot Welding Robot
Welding positioner
1. It can work in coordination with the robot to ensure constant welding speed and attitude and provide higher welding quality.
2. Use imported servo motor with high precision reducer, high rotary accuracy, accurate positioning, and strong bearing capacity.
3. By turning the workpiece fixed on the worktable to the required welding angle.
Provide the 7th axis of the customized machine
1. Increase the working range of the robot to solve the disadvantages of limited working range caused by limited movement range of the robot.
2. Robot slide rail installation: the robot can walk alone or walk with matching welding power supply and robot control cabinet as a whole according to the on-site working conditions of customers.
3. Special protective mechanism to prevent welding spatter or dust in the air which will cause bad impact of precision parts.
4. In order to adapt to the different conditions of different customers, be able to do different configuration and installation for customer.
Robot Integration
In addition to HWASHI robot systems, we can also integrate with international brands of robot to provide complete welding robot solutions.
