IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation

IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation

Vibration Testing Machine

IBC Tank Vibration Testing

IBC Tank Vibration Testing Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-LM-75K

Contact Us
Request A Quote
Product Details
Product Name:
IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation
Condition:
New
Application:
IBC Tank Leakage Test
Warranty:
12 Months
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation

IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 0



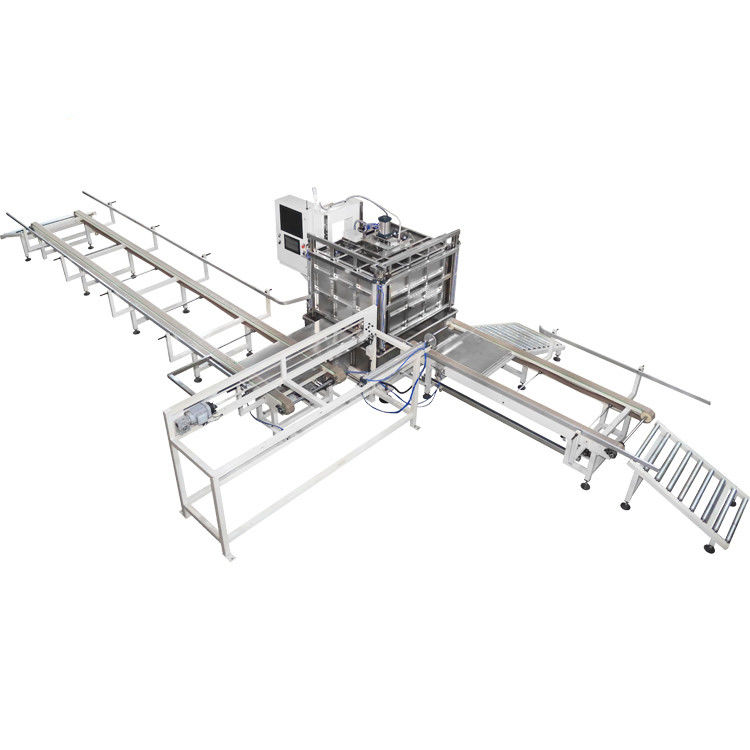

Description of Automatic IBC Tank Leakage Testing Machine With Visual Detection

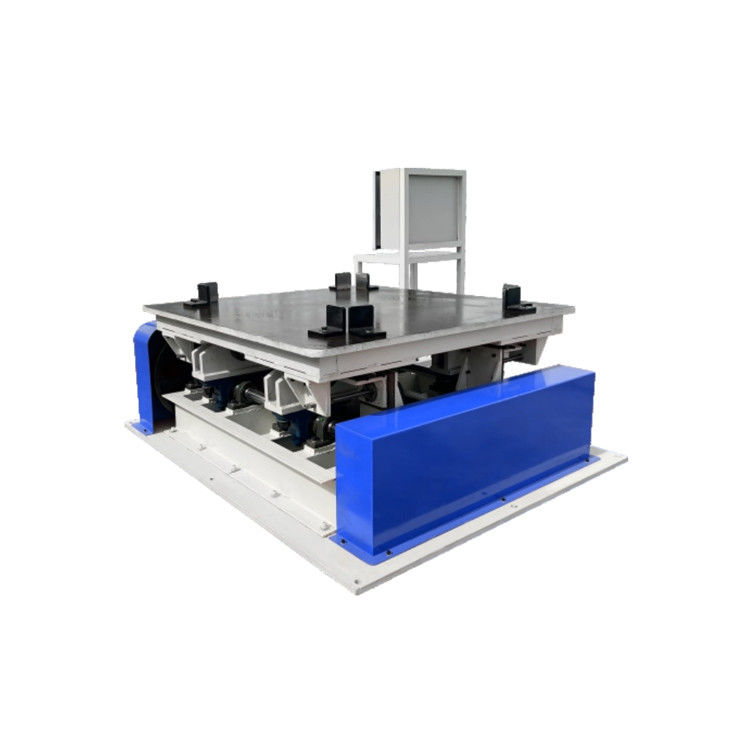

The IBC tank vibration testing machine can simulate the test environment by driving the platform to vibrate up and down through the motor. It can place two IBC to simulate the maximum load of 3 Tons.


Testing Method of Automatic IBC Tank Leakage Testing Machine With Visual Detection

(1) the IBC tank should be placed in the middle of the test machine platform, using vertical sine curve. If necessary, the platform shall be equipped with a limiting device to prevent the sample from falling from the platform while moving horizontally. The vertical motion inspection process does not need to be restricted.
② The test shall be conducted for 1 hour, using a frequency such that the bottom of the IBC shall be lifted immediately from the vibration platform at each cycle, to the extent that a metal gasket (at least 1.6mm thick and 50mm wide) can be inserted intermittently and at least 100mm between the bottom of the IBC and the platform.
③ The vibration frequency may need to be adjusted after the initial set point to prevent resonance of the package. However, the test frequency must be continuous to enable the metal gasket to be placed at the bottom of the IBC.

IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 1




Technical Parameters of Automatic IBC Tank Leakage Testing Machine With Visual Detection

Item Technical Data
Power Requirement 380V 50H z 12KW
Testing Time 0-1 hour
Detection Method Differential pressure detection + visual detection
Pressure Source Air Pressure
Platform Size 1200x1200mm



Features of automatic IBC tank leakage testing machine with visual detection

1) The up and down vibration simulation test was adopted.
2) The machine adopts man-machine interface + PLC programming control mode, high degree of automation.
3) You can set testing time and vibration frequency according to your needs.



FAQ--IBC tank detection line

  • What machines does IBC tank detection line include?

​It consists of automatic valve machine, automatic leakage testing machine and automatic stacking line.

  • How does IBC tank detection line work?

​According to the IBC tank production requirement, we use the automatic valve feeding and hot melting method to install the valve to the tank.Through the visual identity leakage testing and second time pressure difference detection, you can check if the inner tank is qualified or not. And make sure the unqualified product will not enter into the line.

  • What is advantage of our IBC tank detection line?

Use mechanical arm to pick up the inner tank and put it into the complete frame. It will enter into the rotary table. The operator will do the manual pull rod and cover assembly. Finally the product will enter into the stacking station. Then the whole detection process will be completed.

IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 2

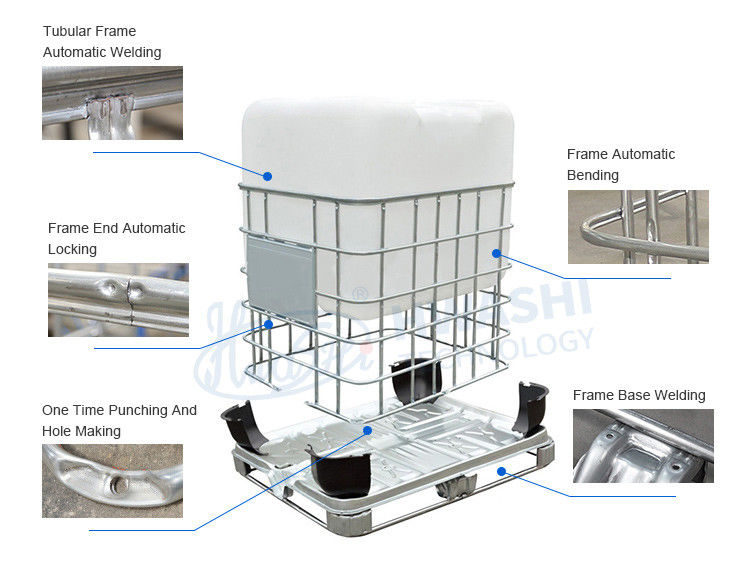

Production line

IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 3IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 4

Six-Head IBC Frame Automatic Welding Machine
The welding power is designed with 4 sets of MF DC power source. It can do 6 spots welding at one time. Double layer fixture feeder. When one fixture is under welding, another fixture can be loaded with material.
Flat Tube Mesh and Firm Welding Quality
The welding machine will weld the tube into flat mesh type. Firm and strong welding quality. It will take about 60sec to complete the welding process.

IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 5IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 6

Vertical Double Station IBC Frame Bending Machine
IBC cage frame double station bending machine is processed as a whole to ensure high bending precision, stable operation .

Bend the Flat Mesh into Square Shape

The bending machine will bend the flat mesh into square frame. It will takes about 20- 25sec to complete the bending process.

IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 7IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 8

IBC Cage Frame Locking Machine
IBC cage frame locking machine is processed as a whole, with high insertion precision, large fastness to locking, stable and efficient operation.

Locking Efficiency and Quality
The locking machine will lock the ends of the tube frame using hydraulic force. It will takes about 25-30sec to complete the locking process.



IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 9IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 10

IBC Cage Frame Hole Making and Punching Machine
IBC cage frame hole making and punching machine is used to form the hole on the frame, so the complete frame can be fixed on the base frame.
Hole Making Efficiency and Quality
The hole making and punching machine is using hydraulic force. It will takes about 25-30sec to complete the complete process.

IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 11IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 12

IBC Cage Base Frame Welding Machine
The base frame welding machine design adopts horizontal structure and 7 welding heads for completing the welding of base frame. The operator only need to load and unload the product. The machine will do the welding automatically.
Final Product of Base Frame
We can add the automatic loading and unloading device for the base frame welding machine as per your requirement. The welding efficiency is about 15-20 sec/pc.


IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 13IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 14

IBC Tank Vibration Testing Machine Adopted With Up And Down Vibration Simulation 15
