IBC Cage Frame Locking Machine For Locking The Ends Of The Tube Frame

IBC Cage Frame Locking Machine For Locking The Ends Of The Tube Frame

Frame Locking Machine

IBC Cage Frame Locking Machine

IBC Tote Cage Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-LM-75K

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI IBC Cage Frame Locking Machine Suitable For Locking The Ends Of The Tube Frame
Condition:
New
Application:
IBC Cage Frame
Warranty:
12 Months
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
Product Description

HWASHI IBC Cage Frame Locking Machine Suitable For Locking The Ends Of The Tube Frame

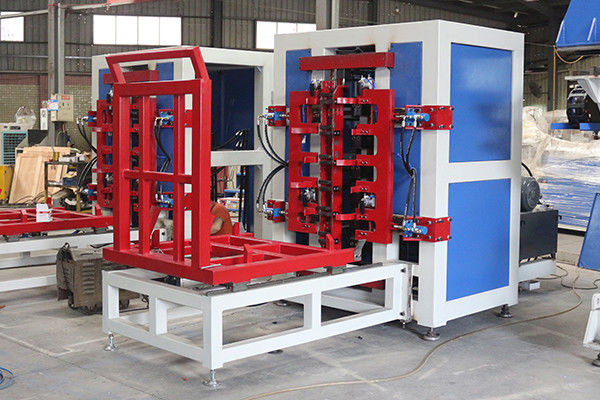

IBC Cage Frame Locking Machine For Locking The Ends Of The Tube Frame 0

Description of HWASHI IBC Cage Frame Locking Machine Suitable For Locking The Ends Of The Tube Frame

HWASHI IBC Cage Frame Locking Machine Suitable For Locking The Ends Of The Tube Frame is processed as a whole, with high insertion precision, large fastness to locking, stable and efficient operation. The locking machine will lock the ends of the tube frame using hydraulic force. It will takes 25-30 sec to complete the locking process.

The machine is controlled by human-machine interface +PLC programming control mode, with high degree of automation.

1. According to the different designs of IBC metal cages, the adjustable locking arm can make the machine's working range wider.

2.The hydraulic and pneumatic design of the locking arm can make the machine more efficient.

3. The design of the fastening arm can automatically insert the pipeline.

4. Using a hydraulic system to lock the mesh can make the pipe fittings firmly connected and prevent cracking of the metal cage.

5. The metal cage feeding device can make automatic cage production more stable and efficient.



Product Details

Electricity Requirement:Three-phase Four Wires 380V±10%
Effective Chinching Height:500-1200mm
Control Method:PLC
Effective Welding Width:1200mm
Effective Welding Length:1200mm
Automatic Moving Speed:200-500mm/s Adjustable
Machine Sizex:4170x1600x2050
Rated Air Pressure:0.6MPa
Application:Clinching Of IBC Cage Frame
Required Operator Number:One People

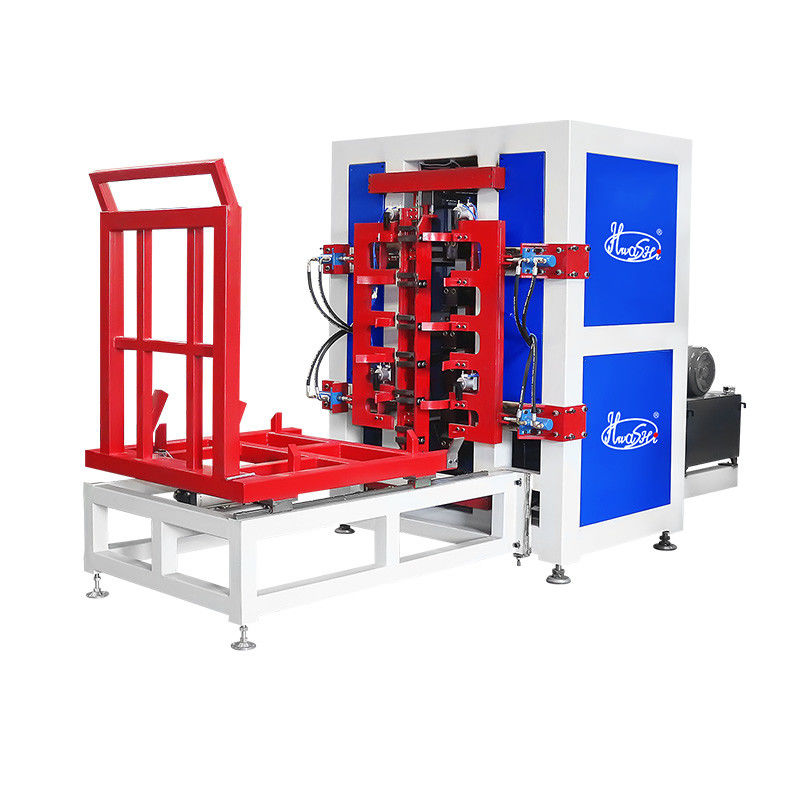

IBC Cage Frame Locking Machine For Locking The Ends Of The Tube Frame 1

​IBC Tank Cage Frame Production Line Machine

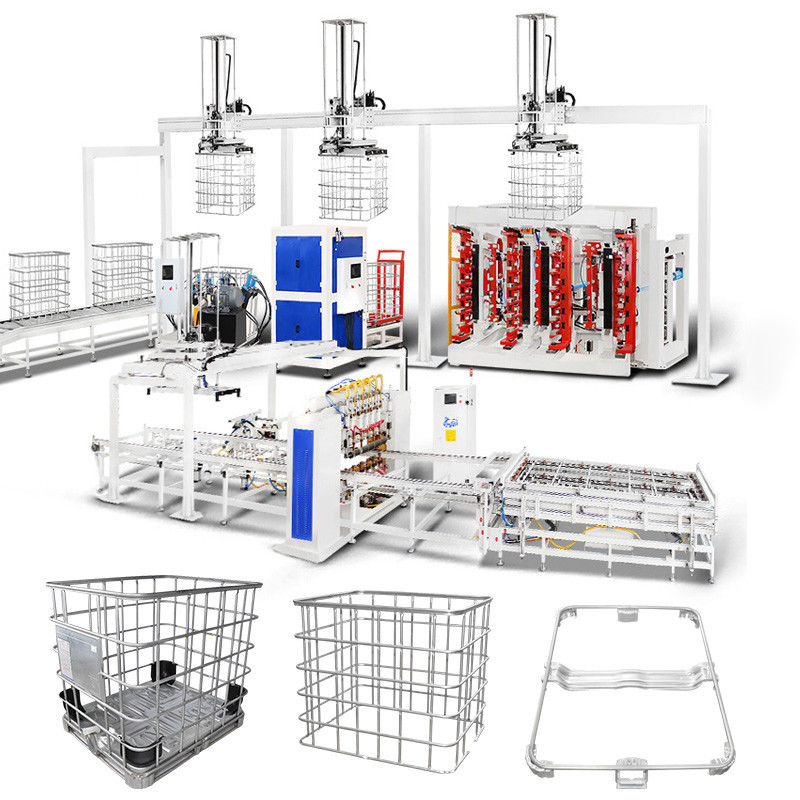

This automatic production line is mainly used to manufacturing the IBC cage frame. It is composed of cage frame automatic welding, mesh unloading mechanical arm, mesh turnover structure, automatic frame bending machine, locking machine, hole making and punching machine, automatic production line moving mechanical arm. The complete line requires only 3-4 person. Operator only need to do the material loading to the frame welding machine, and do unloading at the end of the line. Also we can equip the line with automatic base frame welding machine and automatic unloading mechanical arm for the base frame.

IBC Cage Frame Locking Machine For Locking The Ends Of The Tube Frame 2

IBC Cage Frame Locking Machine For Locking The Ends Of The Tube Frame 3



IBC Cage Frame Locking Machine For Locking The Ends Of The Tube Frame 4

IBC Cage Frame Locking Machine For Locking The Ends Of The Tube Frame 2



Running Process Of The IBC Cage Frame Automatic Production Line
Frame welding——bending——locking——hole punching——unloading——base frame welding——base frame loading——manual screw for base frame and outer frame
