HWASHI IBC Short Tube Automatic Pressing And Forming Machine

HWASHI IBC Short Tube Automatic Pressing And Forming Machine

HWASHI IBC Short Tube Machine

Tube Pressing and Forming Machine

Automatic Pressing and Forming Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-AMF-150K

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI IBC Short Tube Automatic Pressing And Forming Machine
Application:
IBC Tube
Size:
According To Your Products
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

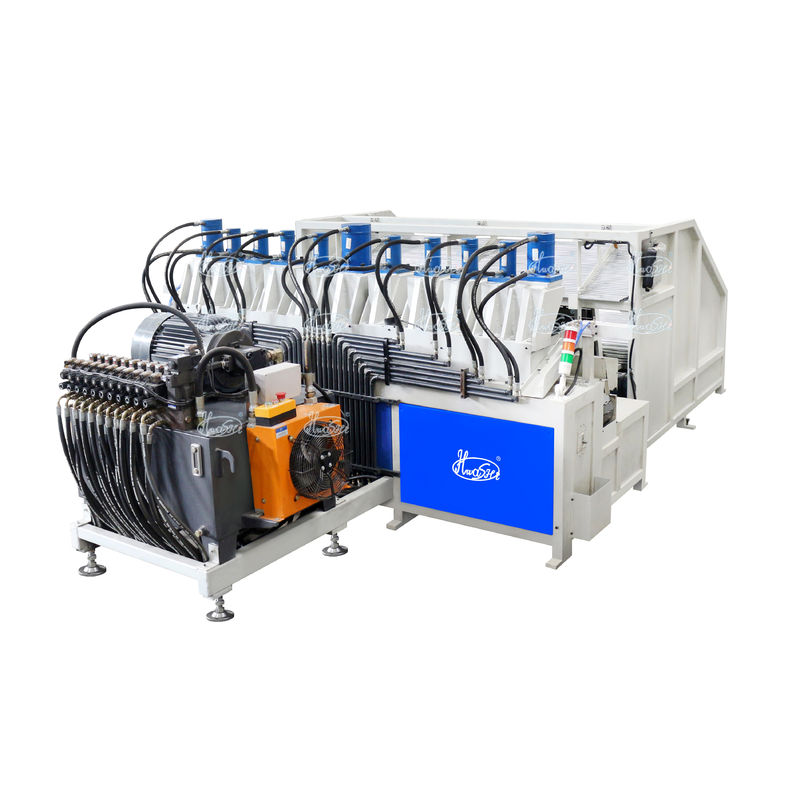

HWASHI IBC Short Tube Automatic Pressing and Forming Machine

Description Of The IBC Short Tube Automatic Pressing and Forming Machine

IBC Short Tube Automatic Pressing and Forming Machine is a special customized machine for IBC tube processing. It can achieve full automatic pipe feeding, pipe end forming and cutting, pipe hydraulic pressing, and automatic unloading process. No operator needed. It helps to greatly increase the production rate, and save manpower.

HWASHI IBC Short Tube Automatic Pressing And Forming Machine 0


Full Automation: The IBC Short Tube Automatic Pressing and Forming Machine operates entirely through automation, eliminating the need for manual intervention.
Highly Efficient Production: The machine's automated functions greatly increase production speed, reduce processing cycles, and thereby improve overall production efficiency.
Controlled Pipe Quality: A precision control system ensures the quality of pipe forming, meeting relevant standards and requirements.
Manpower Savings: Due to the machine's fully automated operation, continuous human supervision is not required, saving on manpower and reducing production costs.
Multi functional Design: The machine integrates multiple functions, including pipe feeding, forming, cutting, hydraulic pressing, etc., into one unit, achieving a one-stop processing solution and enhancing overall production line efficiency.
The IBC Short Tube Automatic Pressing and Forming Machine holds significant potential in the IBC tube processing industry, providing businesses with an efficient, precise, and cost-saving production solution.



Running Process Of The IBC Short Tube Automatic Pressing and Forming Machine
Frame welding——bending——locking——hole punching——unloading——base frame welding——base frame loading——manual screw for base frame and outer frame



Description Of The Short Tube Pressing and Forming Machine
IBC Short Tube Automatic Pressing and Forming Machine is a special customized machine for IBC tube processing. It can achieve full automatic pipe feeding, pipe end forming and cutting, pipe hydraulic pressing, and automatic unloading process. No operator needed. It helps to greatly increase the production rate, and save manpower.

HWASHI IBC Short Tube Automatic Pressing And Forming Machine 1

Manually load the round tubes before processing into the hopper.

The feeder will load the pipe to the hydraulic pressing station automatically.

HWASHI IBC Short Tube Automatic Pressing And Forming Machine 2

The mechanical arm will pick up two pipes and load them to the hydraulic pressing station to do the pressing and tube end shrinking.

After pressing, the tube will be unloaded to the conveyor, then conveyor will move the final material into the trolley.

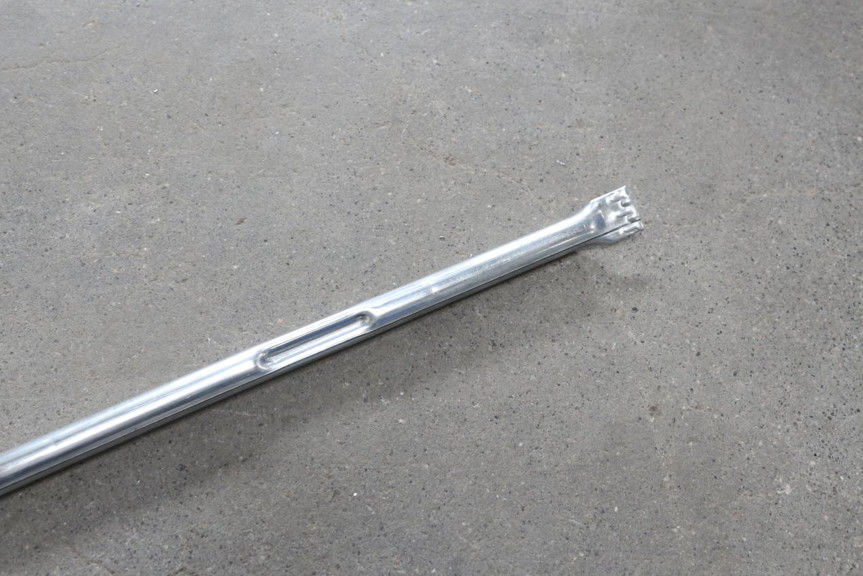

Samples Of Short Tube Pressing and Forming Machine

HWASHI IBC Short Tube Automatic Pressing And Forming Machine 3 HWASHI IBC Short Tube Automatic Pressing And Forming Machine 4


Technical Data Of The Short Tube Pressing and Forming Machine

Items Data
Pipe Diameter Round pipe 18mm (customized)
Pressing Source Hydraulic
Pressing Mark Number 8
Shrinking Function Yes
Each Time Processing Number 2 pcs
Efficiency 12-15sec/2pcs


Application Of The Short Tube Pressing and Forming Machine
To do the pressing and tube end shrinking.
