Vertical Double Station IBC Frame Bending Machine Three-Phase Four Wires 380V

Vertical Double Station IBC Frame Bending Machine Three-Phase Four Wires 380V

IBC Frame Bending Machine

Frame Bending Machine Three-Phase

Four Wires Frame Bending Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-MF160Kx6

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI IBC Metallic Grid Mesh Bending Machine Three-Phase Four Wires 380V
Application:
IBC Cage
Size:
According To Your Products
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

HWASHI IBC Metallic Grid Mesh Bending Machine Three-Phase Four Wires 380V



Description Of The IBC Cage Frame Automatic Production Line

The IBC cage frame automatic production line is mainly used to manufacturing the IBC cage frame. It is composed of cage frame automatic welding machine, mesh unloading mechanical arm, turnover table, automatic frame bending machine, locking machine, hole making and punching machine, automatic production line moving mechanical arm. The complete line requires only 3-4 person. Operator only need to do the material loading to the frame welding machine, and do unloading at the end of the line. Also we can equip the line with automatic base frame welding machine and automatic unloading mechanical arm for the base frame.

Vertical Double Station IBC Frame Bending Machine Three-Phase Four Wires 380V 0



Running Process Of The IBC Cage Frame Automatic Production Line :
Frame welding——bending——locking——hole punching——unloading——base frame welding——base frame loading——manual screw for base frame and outer frame

Vertical Double Station IBC Frame Bending Machine Three-Phase Four Wires 380V 1

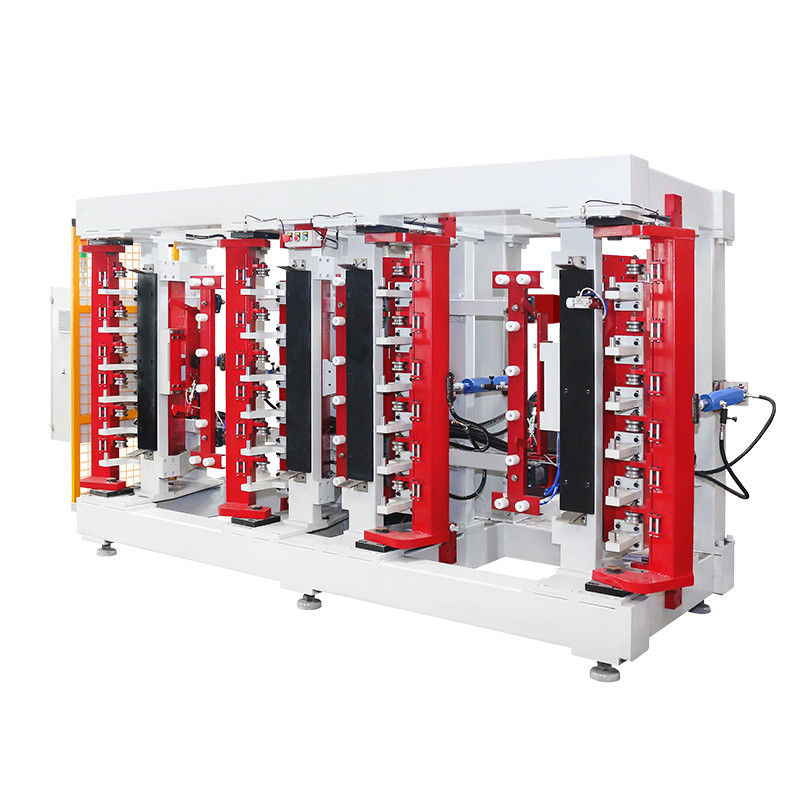

Description Of The Vertical Double Station IBC Frame Bending Machine

Vertical Double Station IBC Frame Bending Machine Three-Phase Four Wires 380V 2

Vertical double station IBC frame bending machine undergoes comprehensive processing to guarantee not only high precision in bending but also stable operations and remarkable efficiency.

The bending machine expertly transforms the flat mesh into a precisely squared frame. Achieving the bending process in approximately 20-25 seconds highlights the machine's efficiency and rapid production capability.

CNC processed bending beam is used to ensure the bending angle.

Each mold on the bending beam can be adjusted upward and downward for about 3mm to increase bending range.

120 degree mold design made each bending angle more smooth.Vertical Double Station IBC Frame Bending Machine Three-Phase Four Wires 380V 3

Vertical Double Station IBC Frame Bending Machine



Technical Parameter of The Vertical Double Station IBC Frame Bending Machine

Items Data
Bending Method Four columns bending at the same time
Bending Size 1200+1000mm (tolerance ±5mm)
Loading Method Manual or Automatic
Bending Efficiency 25-30 sec
Bending Force Hydraulic
Required Operator Number

Manual: 1 people,Automatic: 0



Applications Of The  Vertical Double Station IBC Frame Bending Machine:

Mainly used for bending IBC frame.

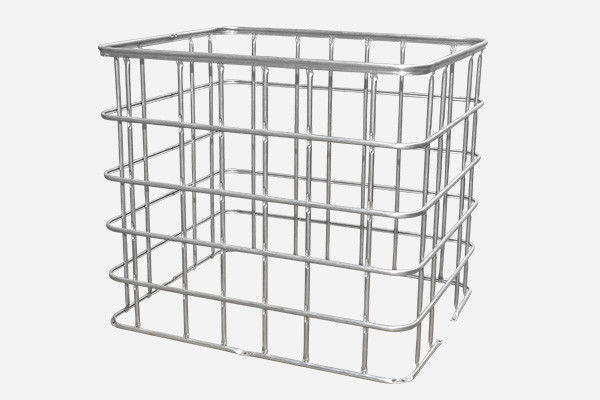

Sample Of The Vertical Double Station IBC Frame Bending Machine

Vertical Double Station IBC Frame Bending Machine Three-Phase Four Wires 380V 4
