IBC Cage Frame Automatic Welding Machine Making Line 50sec/Pc

IBC Cage Frame Automatic Welding Machine Making Line 50sec/Pc

IBC Cage Frame Welding Machine

Frame Automatic Welding Machine

IBC Cage Frame Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-MF160

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Bulk Container IBC Cage Automatic Welding Machine Making Line 50sec/Pc
Application:
IBC Cage
Size:
According To Your Products
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

HWASHI IBC Cage Automatic Welding Machine Making Line 50sec/Pc



Description Of The IBC Cage Frame Automatic Production Line

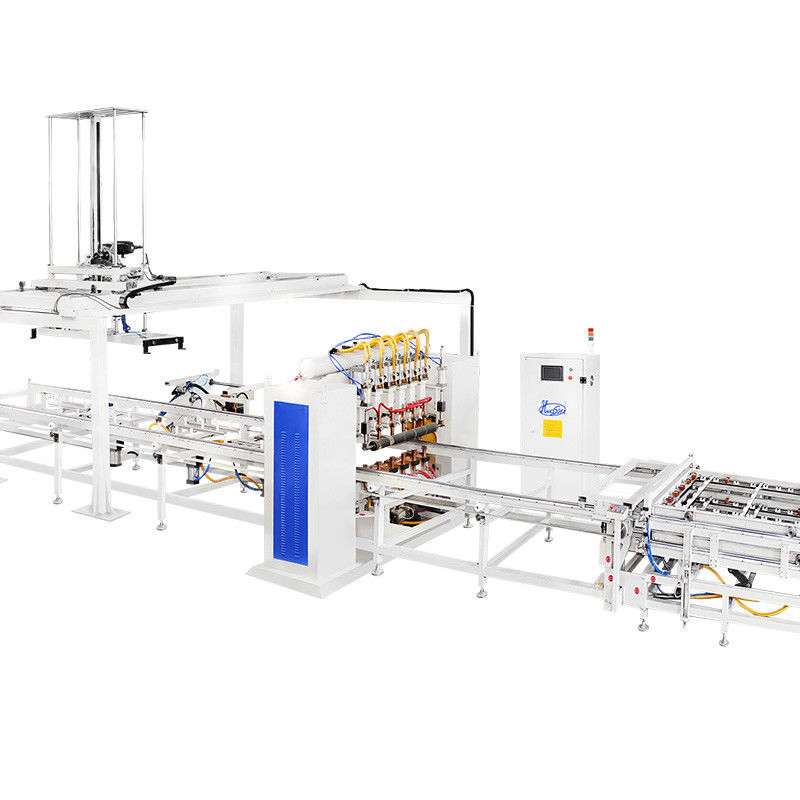

The IBC cage frame automatic production line is mainly used to manufacturing the IBC cage frame. It is composed of cage frame automatic welding machine, mesh unloading mechanical arm, turnover table, automatic frame bending machine, locking machine, hole making and punching machine, automatic production line moving mechanical arm. The complete line requires only 3-4 person. Operator only need to do the material loading to the frame welding machine, and do unloading at the end of the line. Also we can equip the line with automatic base frame welding machine and automatic unloading mechanical arm for the base frame.

IBC Cage Frame Automatic Welding Machine Making Line 50sec/Pc 0IBC Cage Frame Automatic Welding Machine Making Line 50sec/Pc 1

Running Process Of The IBC Cage Frame Automatic Production Line

IBC Cage Frame Automatic Welding Machine Making Line 50sec/Pc 2

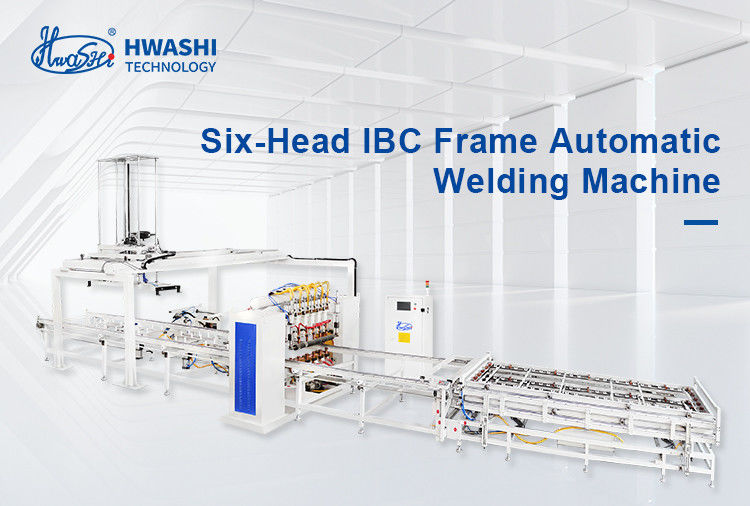

Description Of The IBC Cage Frame Welding MachineIBC Cage Frame Automatic Welding Machine Making Line 50sec/Pc 3

The IBC Cage Frame Welding Machine is engineered with precision, featuring four sets of advanced MF DC power sources.

This sophisticated design enables the simultaneous execution of welding at six different spots, showcasing a remarkable capacity for multitasking. Introducing a dual-layer fixture feeder enhances operational efficiency – while one fixture is actively engaged in the welding process, the other can seamlessly load materials, ensuring a continuous and streamlined workflow.

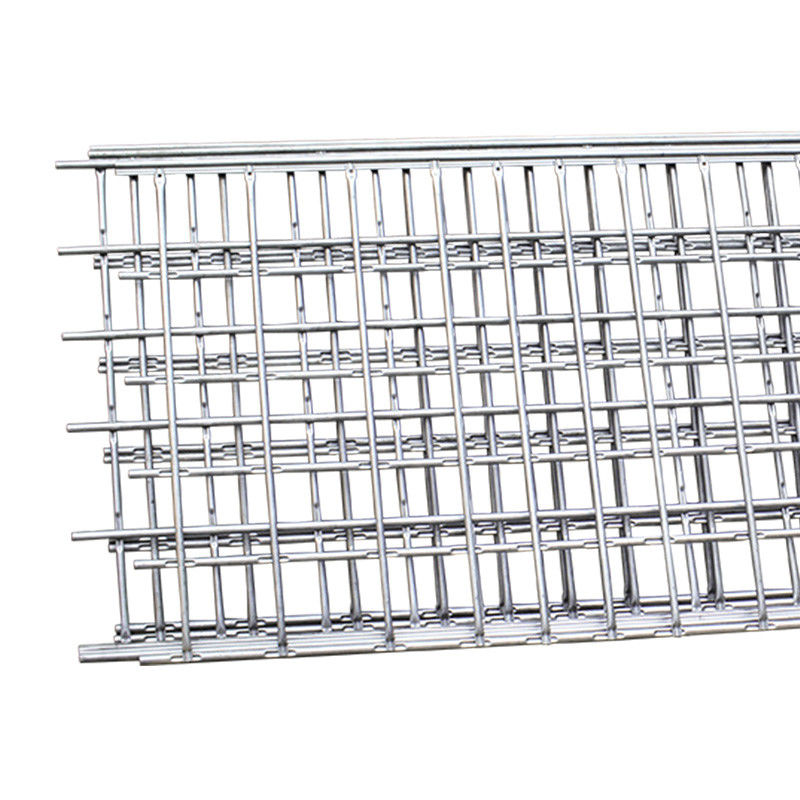

The welding apparatus seamlessly transforms tubes into a distinctive flat mesh configuration, ensuring welds of unparalleled strength and robust quality. The welding process is efficiently completed in approximately 50 seconds, underscoring both speed and precision in the fabrication of each flat mesh.



Features of The  IBC Cage Frame Welding Machine

Welding Efficiency: 50sec/pc
Welding Source: 4 sets MF DC Power Source
Feeder Platform Option: Single Layer or Double Layer
Unloading System Option: Manual Unloading or Automatic Mechanical Arm Unloading



Technical Parameter Of IBC Cage Frame Welding Machine

Items Parameter
Electricity Requirement Three-phase Four Wires 380V±10%
Electricity Requirement 400KVA,air switch 600A
Control Method PLC
Automatic Moving Speed 200-500mm/s Adjustable
Machine Size

15600x3000mm(welding machine only)

15600x5000mm(including unloading arm)



Applications Of IBC Cage Frame Welding Machine:

Mainly used for welding IBC frame



Sample Of The IBC Frame welding machine

IBC Cage Frame Automatic Welding Machine Making Line 50sec/Pc 4

IBC Cage Frame Automatic Welding Machine Making Line 50sec/Pc 5IBC Cage Frame Automatic Welding Machine Making Line 50sec/Pc 6

IBC Cage Frame Automatic Welding Machine Making Line 50sec/Pc 7
