7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine

7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine

3d wire bender

3d cnc wire bender

3d wire forming machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

CNC-HS-7-80

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI 7 Axis 3D CNC Wire Bending Machine For 3-8mm Wire
Application:
Iron Wire, Steel Wire, Stainless Steel Wire And Non-ferrous Metal Wire (round, Square, Flat Line)
Size:
3200x2000x2000mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

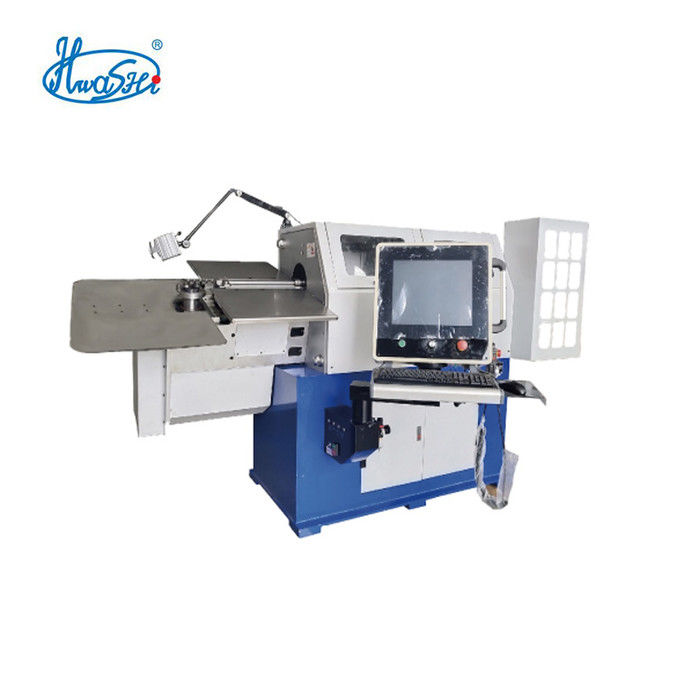

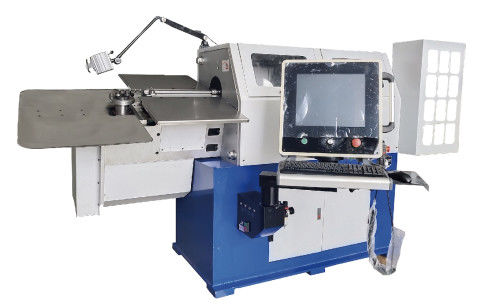

HWASHI 7 Axis 3D CNC Wire Bending Machine For 3-8mm Wire

                                           7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 0

Product description Of The 3D CNC Wire Bending Machine

The 3D CNC wire bending machine is used for iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat line), which will be suitable for bending the shape like square, round, hexagonal, oval with irregular shape and a variety of flat buckle, and all kinds of hooks.



                                             7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 1



Intelligent Bending Control System

Automatic bending by inputting coordinate data of bending position.



7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 2

Straightening Roller



Features Of The 3D CNC Wire Bending Machine

1. Easy Operation: Computer startup, shutdown speed is fast, simple and convenient to operate, support multi-language operation, the computer interface can adjust the speed and change the program at the same time of production.

2. Efficiency: The configuration adopts the imported high-precision and high-speed servo motor, imported reducer, stable and durable production speed which is 30% higher than the domestic counterparts of the same kind of products.
3. The production process can achieve no change in the angle when the angle is folded at different speeds, and the production stability is better. Use to straightening the feeding wire. Be able to process the wire diameter ranging from 2-6mm and 3-8mm.

4. Bearings, gear and other important parts of the imported parts, 9125 hours of warranty, durable and reliable equipment.
5. High precision, can be made within the range of 3.0-8.0 mm wire diameter products, the error is reduced to 0.1mm



Darameter Of The 3D CNC Wire Bending Machine

Technical Data of 3D Wire Bending Machine
Model CNC-HS-7-80 CNC-HS-7-60
Wire diameter 3.0-8.0mm 2.0-6.0mm
Axis number 7 axis 7 axis
Wire feed length infinite infinite
Maximum wire feed speed 100m/min 100m/min
Maximum feed length Infinite Infinite
Wire feed instruction value ±0.01-±9999.99 ±0.01-±9999.99
Wire feed shaft servo power 2.7KW 2.7KW
Wire switching shaft servo power 2.7KW 1.2KW
Torsion shaft servo power 2.7KW 0.75KW
Lifting platform servo power 2.7KW 0.75KW
Cutting shaft servo power 2.7KW 0.75KW
Torsion lifting platform servo power 2.7KW 0.75KW
Core-switching shaft servo power 2.7KW 1.2KW
Input voltage 380V 380V
Computer specifications Industrial computer Industrial computer
Process data storage More than 2000 More than 2000
Air pressure system Air pressure 5-6KG/cm 5-6KG/cm
Probe Three Three
Machine size Length 4100mm 2900mm
Width 2000mm 900mm
Highly 1900mm 1800mm
Machine weight 4300KG 3000kg

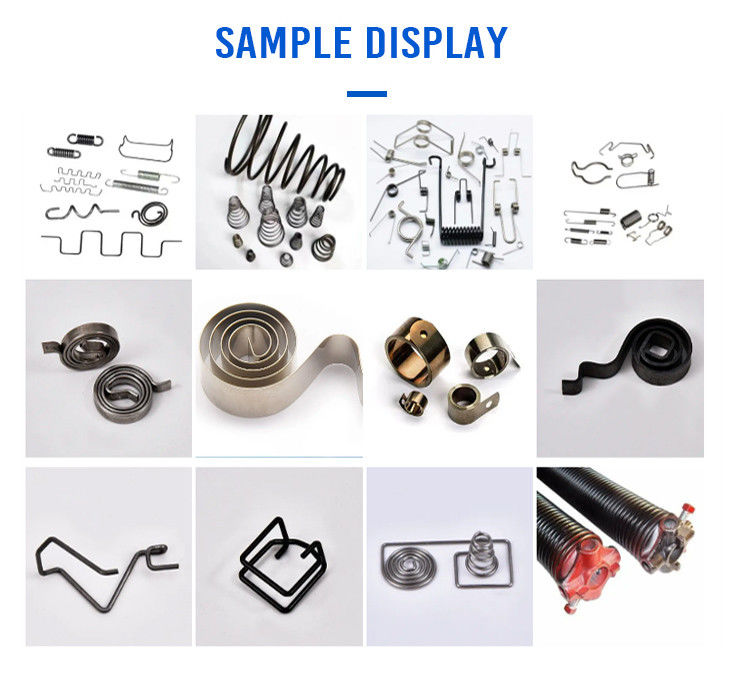

Application and samples Of The 3D CNC Wire Bending Machine

7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 3



We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.





7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 4



Specification Of The 3D CNC Wire Bending Machine



Other Machines Related to Wire Shelf Production Line Composition

We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.



7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 5 7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 6





Wire Flattening and Cutting Machine

This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.


Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.



High Speed Wire Straightening and Cutting Machine

This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.



7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 7 7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 8

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 9 7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 10

Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.

Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.





7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 11 7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 12

2D Wire Handle Bending Machine

This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

3D Wire Bending Machine

This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.

7 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 137 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 147 Axis 3d Cnc Wire Bender Machine For 3-8mm 3d Wire Forming Machine 15
