Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic

Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic

single head welding machine

Row Wire Mesh Welding Machine

Wire Mesh Welding Machine High Speed

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-TSP-100/150K

Contact Us
Request A Quote
Product Details
Product Name:
Single Head XY Axis Wire Mesh Row Welding Machine High Speed Full Automatic
Application:
Mesh Product
Size:
6000x1200x1600mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
3000 KG
Motor Type:
Stepping Motor
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

Single Head XY Axis Wire Mesh Row Welding Machine High Speed Full Automatic







Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic 0

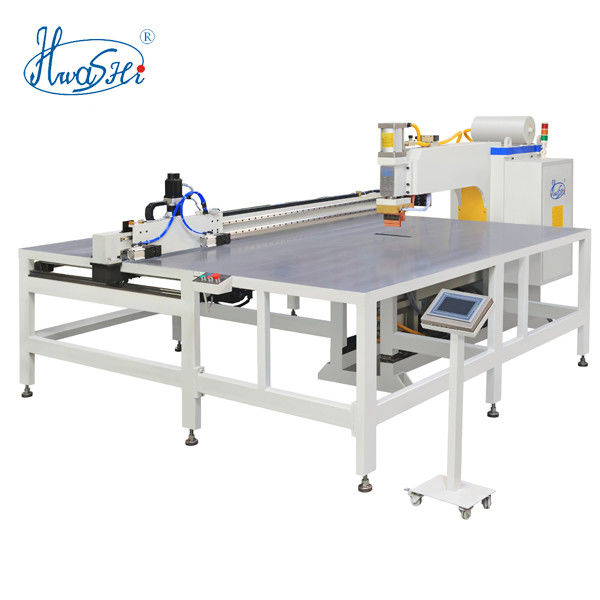

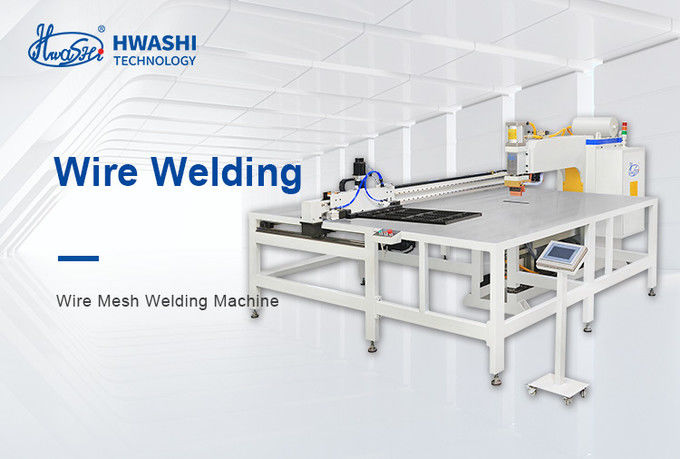

Description Of The Single Head XY Axis Wire Mesh Row Welding Machine

The single head XY axis wire mesh Rrow welding machine adopts a single-head long arm type welding structure, equipped with work piece molds that move along the X and Y axis automatically. Input coordinated at a of welding position, welding current and other data to realize automatic welding. Just need to load the material manually and take out the work piece. lt is suitable for the welding of the mesh with in the range of 1000mm X 1000mm.

Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic 1

Intelligent welding control system

Automatic welding by inputting coordinate data of welding position, welding current and other data.

Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic 2

Special product molds welding platform

Processing and production according to the size of each mesh product.

Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic 3

X.Y axis moving device

Equipped with automatic movement of the workpiece mold along X and Y axes, only manual swinging and removal of the workpiece is required.



Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic 4

Single head long arm type welding

The equipment adopts single head long arm type welding structure, can be customized according to the needs of the workpiece double row or multi-row welding head.

Specification Of The Single Head XY Axis Wire Mesh Row Welding Machine

Model

WL-TSP-100/150K

Input Power (V/φ)

380/3

Rated Power (KVA)

100/150

Applicable Material

Stainless Steel, Carbon steel, Aluminum, Metal

Electrode Force (KG)

250-400

Wleding Thickness (MM)

1-5mm

Warranty

1 years

Mesh Welding Range

1000mm X 1000mm

The XY axis mold frame is driven by servo motor with synchronous belt drive, and the walking step length and speed are controlled by the control system. When the manual material is fixed on the mold frame, the switch is activated and controlled by the industrial control computer, the product will walk alternately with the X and Y axes of the mold frame to automatically complete the welding of each part of the joints, and will automatically return to the origin when the welding is completed, without the need for manual operation by other personnel. At the same time, the operator can set up the material to prepare for the next welding work, which not only reduces the labor cost, but also effectively uses the welding time to set up the material.

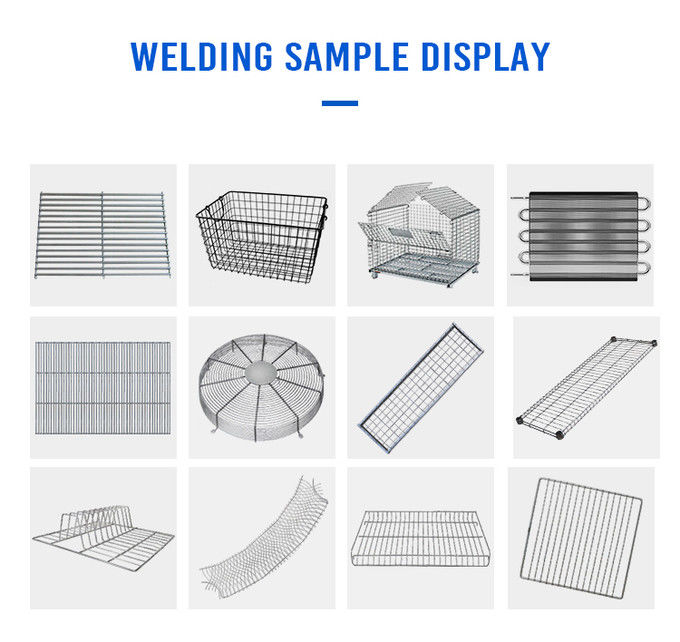

Application And Samples Of The Single Head XY Axis Wire Mesh Row Welding Machine

Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic 5Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic 6



Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic 7

Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic 8
