Automatic Wire Frame But Welding Machine But Welder

Automatic Wire Frame But Welding Machine But Welder

but welder

automatic butt welding machine

butwelding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-B-25K

Contact Us
Request A Quote
Product Details
Product Name:
Hwashi Automatic Wire Frame Butt Welding Machine
Application:
Hotels, Building Material Shops, Construction Works
Size:
550x700x1120mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
200KG
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

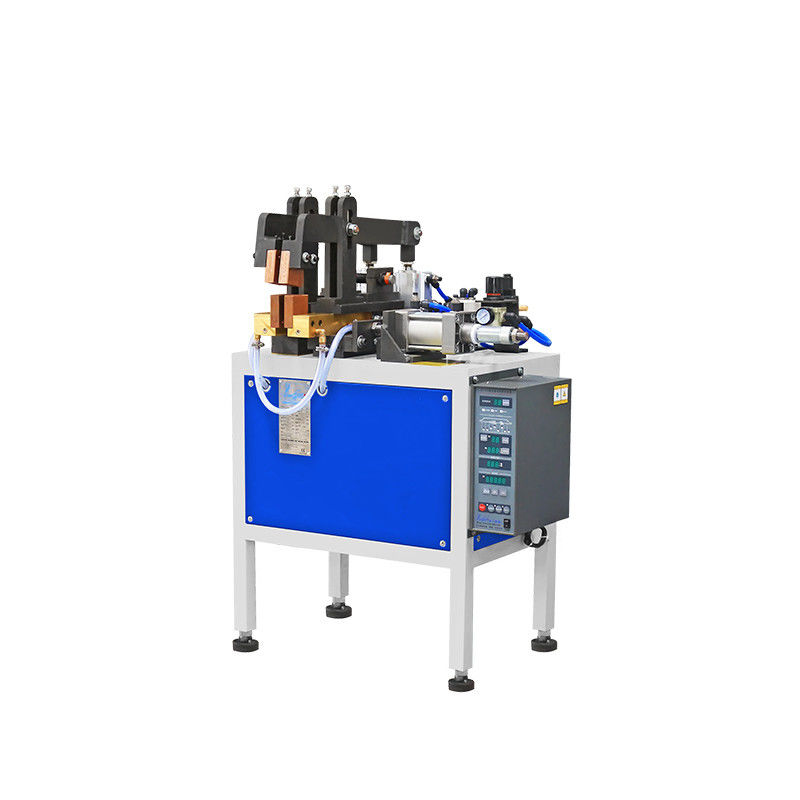

  Hwashi Automatic Wire Frame Butt Welding Machine



Detailed Description Of  Butt Welding Machine

1. Except for the general functions of AC pulse spot welder, automatic butt welding machine also possesses the following features Specially design for butt welding stainless steel wire.

2.Stainless steel wire butt welding machin is able to weld solid wire with 6.5mm thickness . Butt welding 1 mm minimum thickness wire.

3.Utilizing the contact resistance of the two ends on the connecting position to generate high temperature and high heat to achieve welding effect under pressure.

4.This machine could choose three times of discharging.

5.As for medium carbon steel, this machine possesses the function of preheat and welding anneal and is specially equipped with parallel straight slide to ensure the parallel pressure of forging power of the welding product so as to achieve smoothness and firmness on the joint position.

6.The power of butt welding machine we produce is from 3KVA to 600KVA. It can be used to weld 10mm of iron wire and metals like stainless steel, steel, copper, etc. Applicable to all kinds of hardware.

Automatic Wire Frame But Welding Machine But Welder 0

Features Of Butt Welding Machine

1. Welding Control System: WD-KD5 Intelligent Microcomputer Controller. The AC pulse spot welder that we produce can be matched with many types of welding controllers.

2. Silicon Controlled: Adopt the SEMIKRON, IXYS Silicon controlled from West Germany or IR Silicon controlled from United States.

3. Pneumatic Control System: Adopt large displacement of magnetic valve and gas assembly, sufficient air supply.

4. Adopt the quick exhaust cylinder, quick response, good servo performance. Welding Transformer.

5. Adopt high purity silicon steel disc refined welding transformer, good permeability and electrical conductivity.

6. Less consumption of electricity.

7. Be able to weld the metal plates like 8mm+8mm low-carbon steel.

Automatic Wire Frame But Welding Machine But Welder 1

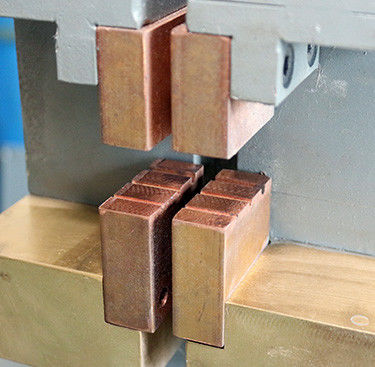

Welding Electrode

Be able to make several grooves on the electrodes so one electrode set could weld several types of different wire diameter.



Automatic Wire Frame But Welding Machine But Welder 2

Customized Special Welding Moulds

Processing and making suitable molds according to different product butt welding requirements, making work easier.



Automatic Wire Frame But Welding Machine But Welder 3

Automatic Loading and Unloading Arm

Be able to install the automatic loading and unloading arm to the butt welding machine, so it can be matched with 2D/3D bending machine to achieve full automatic forming and welding process.



Technical Data Of Butt Welding Machine

                                                        Technical Data

No.
Items
Data
1
Wire Diameter
2-5MM( strength of extension≤500N)
2
Axis Number
4 axis
3
Oil Cylinder Number
10 pieces
4
Oil Press Machine
4 sets
5
Working Cycle
15s
6
Max. Bending Number
4pcs
7
Slide Rail Length
2000mm
8
Main Body Voltage
Three-phase 380V(can be customized)
9
Main Machine Size
4000mmx1200mmx1700mm







Application and Samples Of Butt Welding Machine

Automatic Wire Frame But Welding Machine But Welder 4



Automatic Wire Frame But Welding Machine But Welder 5

Specification Of Butt Welding Machine

Other Machines Related to Wire Shelf Production Line Composition:

We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.





Automatic Wire Frame But Welding Machine But Welder 6 Automatic Wire Frame But Welding Machine But Welder 7

Wire Shelf Automatic Welding Machine

This is the full automatic wire shelf welding machine,  including filling, welding and unloading. We can design the welding machine according to your product and efficiency requirement.

High Speed Wire Straightening and Cutting Machine
This machine can make batch production of 2mm to 4mm wires. This machine speed is almost 5 times to increase production rate and reduce labor cost.
Automatic Wire Frame But Welding Machine But Welder 8 Automatic Wire Frame But Welding Machine But Welder 9

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame and  bend multiple wires at the same time to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Automatic Wire Frame But Welding Machine But Welder 10 Automatic Wire Frame But Welding Machine But Welder 11

Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.

Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.



Automatic Wire Frame But Welding Machine But Welder 12 Automatic Wire Frame But Welding Machine But Welder 13

2D Wire Handle Bending Machine

This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

3D Wire Bending Machine

This machine is used to bend the wire into 3D shape, which is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.

Automatic Wire Frame But Welding Machine But Welder 14Automatic Wire Frame But Welding Machine But Welder 15Automatic Wire Frame But Welding Machine But Welder 16
