Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers

Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers

Round Wire bending machine

wire frame bending machine

wire frame bending machine manufacturers

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-WK-8

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Round Wire, Flat Wire, Stainless Steel, Mild Steel Wire Frame Bending Machine
Application:
Bending The Frame
Size:
900x1500x1850mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
1200kg
Control Method:
PLC + Touch Screen
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

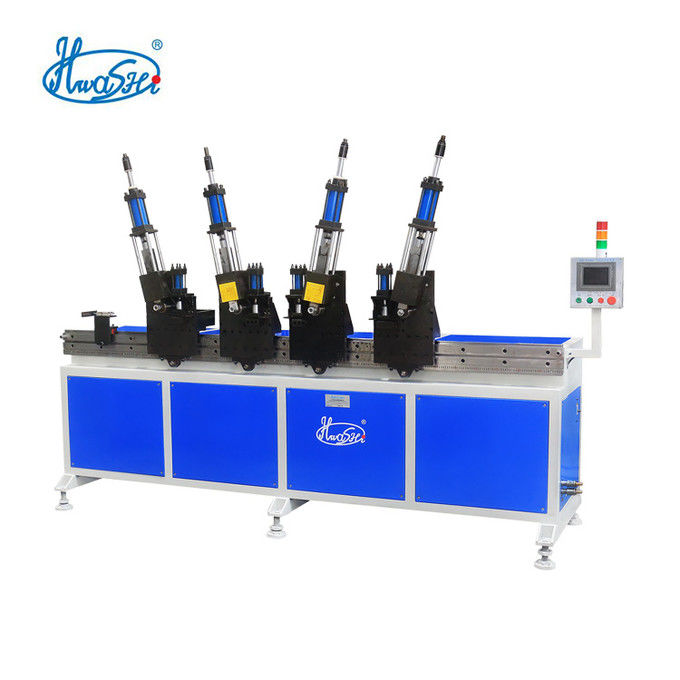

HWASHI Round Wire, Flat Wire, Stainless Steel, Mild Steel Wire Frame Bending Machine

Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 0

Product description Of The Wire Frame Bending Machine



Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine is Suitable for bending the flat wire and round wire frame, frame size within 650x650mm (can be customized) which can bending 4 wires at one time. The machine adopts the special design vertical structure body, and adopt the hydraulic press and oil cylinder as the bending pressure source, the pressure is strong. The device can realize the automatic bending of wires. It can improve the product quality and reduce the production cost. In this situation, the problem of unstable quality and low production efficiency caused by pure manual operation has been solved.
 Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 1

Intelligent Touch Screen Control System

Automatic bending by inputting coordinate data of bending sequence. Easy operation.



Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 2



Vertical Bending Hydraulic Head

Use four heads for bending the frame. Manual loading the precut straightened wire onto the machine, it will automatically finish bending at one time. High efficiency.



Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 3

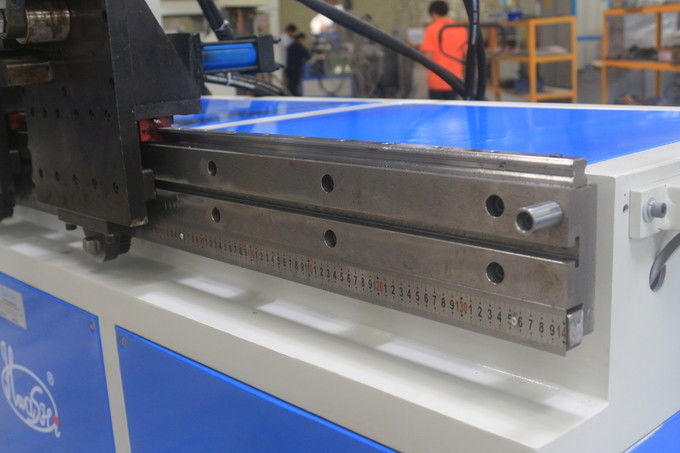

Easy Adjustment Slide Rail

Use high quality slide rail with meter. Easy to adjust the hydraulic cylinder to desired position and bend the frame into required size.



Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 4

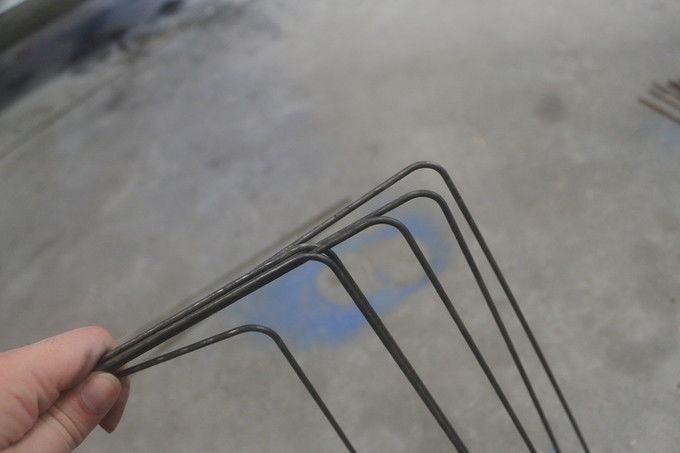

Bending Effect

90 degree bending with good bending surface. Wire frame will not be deformed after bending.



Technical Data Of The Wire Frame Bending Machine





Technical Data of The Wire Frame Bending Machine
No.
Items
Data
1
Wire Diameter
2-5MM( strength of extension≤500N)
2
Axis Number
4 axis
3
Oil Cylinder Number
10 pieces
4
Oil Press Machine
4 sets
5
Working Cycle
15s
6
Max. Bending Number
4pcs
7
Slide Rail Length
2000mm
8
Main Body Voltage
Four-phase 380V(can be customized)
9
Main Machine Size
4000mmx1200mmx1700mm



Application and Samples Of The Wire Frame Bending Machine





Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 5

Specification Of The Wire Frame Bending Machine



Other Machines Related to Wire Shelf Production Line Composition:



We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.





Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 6 Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 7

Wire Shelf Automatic Welding Machine

This is the full automatic wire shelf welding machine which can do automatic wire filling, welding and unloading. We can design the welding machine according to your product and efficiency requirement.

High Speed Wire Straightening and Cutting Machine
This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.
Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 8 Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 9

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 10 Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 11

Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.

Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.



Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 12 Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 13

2D Wire Handle Bending Machine

This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

3D Wire Bending Machine

This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.

Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 14Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 15Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine Manufacturers 16
