Wire Mesh Automatic Gantry Type Welding Machine With Automatic Wire Filling For Welding Different Sizes Of Mesh
Description of Wire Mesh Automatic Gantry Type Welding Machine With Automatic Wire Filling For Welding Different Sizes Of Mesh

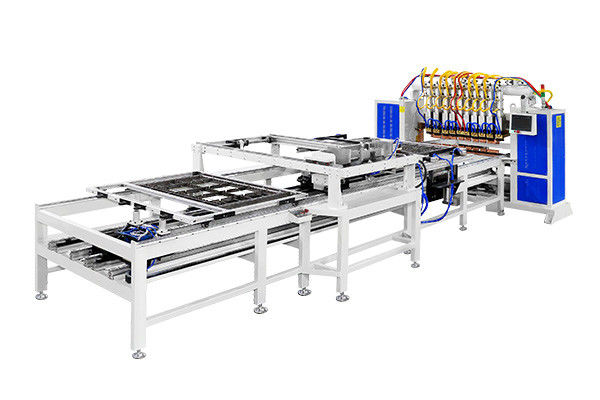

Refrigerator Wire Shelf Production Line Machine Steel Wire Mesh Spot Welding Machine is H-type wire mesh multi-head automatic welding machine. It adopts ten electrodes and equips with automatic feeding system. The wire will be dropped to the fixture automatically to achieve full automatic loading. After that it will automatically execute the feeding and welding. Its one-way and double-layer feeding device can move forward and back automatically to finish the welding and the welding distance can be set at random .It is suitable for the batch production of wire mesh with multiple-points welding.
The welding manner is one-way double-layer automatic stepping feeding with 10 welding heads. The effective welding width is 1200mm while the effective welding length is 1000mm. This machine is composed of main machine body, welding transformer, pneumatic drive device, upper and lower electrodes, automatic wire filling device, electrical control system, cooling system, and PLC operation control system.
| Intelligent welding control system Automatic welding by inputting coordinate data of welding position, welding current and other data. |

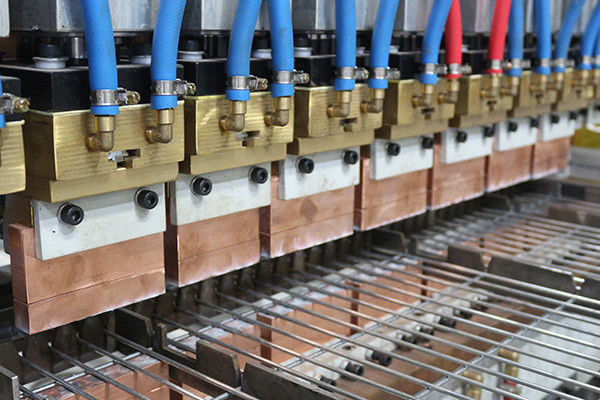

Welding Heads and Fixtures Processing and design according to the drawings of each wire shelf product. (customized) |
| Automatic Wire Filling System You can put the precut straight wires into the hopper, then the wire filling machine will do the wire filling into the fixture automatically. It helps to increase the working efficiency and reduce labor force. |
Automatic Double-layer Feeder When one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased. |
Design Concept of Wire Mesh Automatic Gantry Type Welding Machine With Automatic Wire Filling For Welding Different Sizes Of Mesh
1.The second-generation intermediate frequency power supply is adopted, which is more power-saving, stable and has better welding effect.
2. PLC control. Human-machine interface operation to set parameters.
3.The welding head is designed with independent air pressure adjusting program.
4.The transmission part has been changed from chain to gear rack.
Parameter:
|
Input Power |
Three-phase four-wire 440V±10% 50HZ |
|
Rated Capacity |
200KVA |
|
Rated Duty-cycle |
50% |
|
Storage of Welding Models |
32kinds |
|
Effective Welding Width |
1000mm(Adjustable) |
|
Effective Welding Length |
1300mm(Adjustable) |

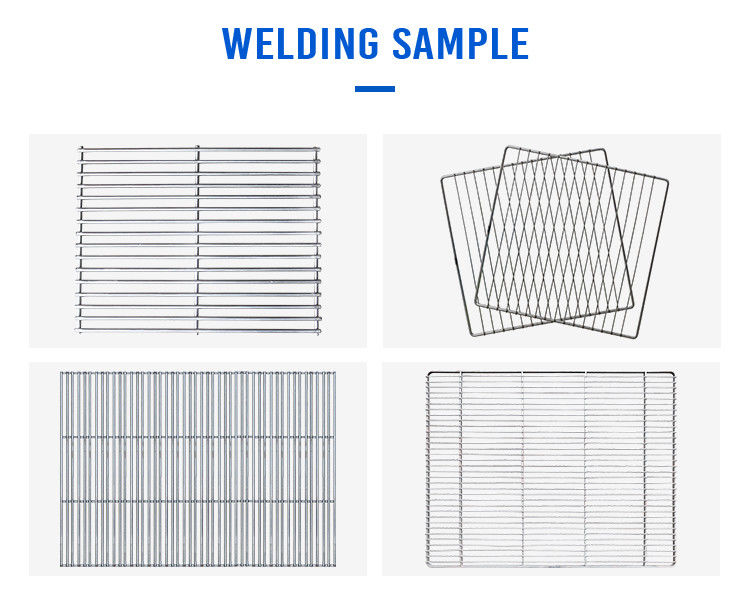

Application Range:
This equipment is suitable for welding Bondi tube condensers on water dispenser condensers, freezers, refrigerators and other refrigeration equipment.
