High Speed Steel Wire Straightening Cutting Machine 5-7mm Wire

High Speed Steel Wire Straightening Cutting Machine 5-7mm Wire

steel wire straightening cutting machine

steel wire straightener

straightening and cutting machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

HS-HC-1-7

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI High Speed Wire Straightening And Cutting Machine5-7mm Wire
Application:
Wire Straightening And Cutting
Size:
900x1500x1850mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
480kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

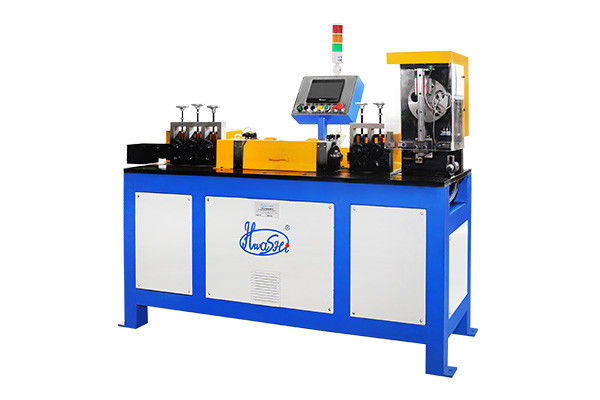

   HWASHI High Speed Wire Straightening and Cutting Machine 5mm-7mm Wire

                                     High Speed Steel Wire Straightening Cutting Machine 5-7mm Wire 0

Detailed Description Of High Speed Wire Straightening and Cutting Machine:

1. HWASHI high speed wire straightening and cutting machine (5mm-7mm Wire) is suitable for wire, stainless steel wire, galvanized wire, aluminum, water (powder) draw lines and other metal wire straightening and cutting, and then butt welding, automatic unloading.

2. Sending wire wheel, such as the use of high-quality steel cutter and vacuum heat treatment, wear resistance, longer life. Straightening block can be cast iron, alloys, plastics Wang, all shaft parts are all 40CR or 45CR steel, and after straightening process, the gear is used in all forging billet, straight and tooth surface by high frequency hardening, hardness up HRC55-58 degrees.

3. Straight shaft with high pressure wheel straight before cutting the wire straightening, wire feeding pressing the pinch roller lever to adjust wire feed, the wire can even feed, direct modulation axis is the key product formed by direct modulation straightening blocks and tone straight shaft fixed to adjust the horizontal and vertical products to conform to requirements. Adjusting the pressing handle, the wire and the wire is more horizontal and vertical production rate increase or decrease. Finally, adjust white blades gun on the length of the product to meet the requirements.

4. Fast, stable performance, simple operation.



High Speed Steel Wire Straightening Cutting Machine 5-7mm Wire 1

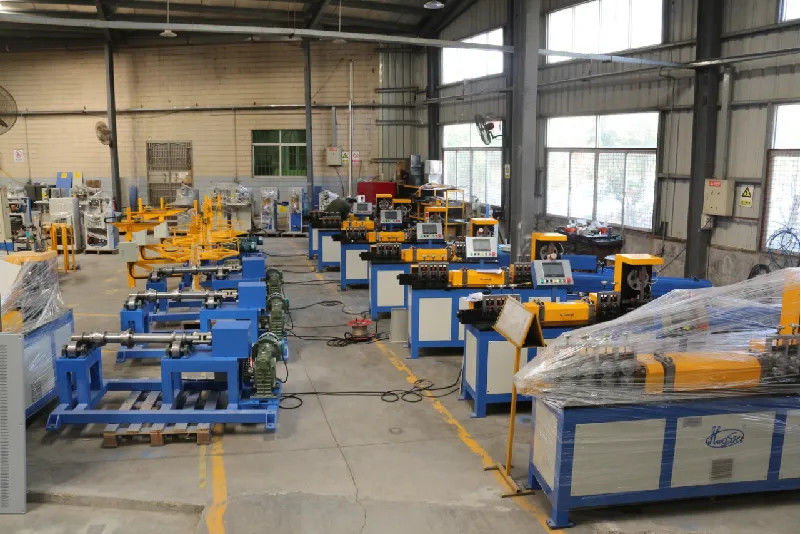

Sufficient Stock Machine
We can deliver the machines within 1 week after you confirming the order.

High Speed Steel Wire Straightening Cutting Machine 5-7mm Wire 2

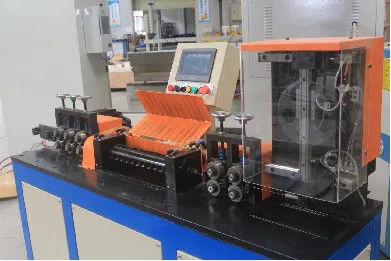

Reasonable Rotary Straightening Structure
 Only need to input the cutting length, then machine will run automatically, which is easy to maintain.


Parameter Of High Speed Wire Straightening and Cutting Machine:



Model HS-HC-1.1-1.5 HS-HC-1.6-3 HS-HC-2-4 HS-HC-3-5 HS-HC-5-7
Input Power AC380V(50Hz/60Hz)
Suitable Wire Material Normal low carbon steel wire/stainless steel wire/galvanized steel wire/copper coated steel wire
Air Pressure 0.5-0.6Mpa
Wire Diameter 1.1-1.5mm 1.6-3mm 2.0-4.0mm 3.0-5.0mm 5.0-7.0mm
Cutting Length 50-5000mm
Max. Cutting Speed Max. 350pcs/min Max. 250pcs/min Max. 250pcs/min Max. 230pcs/min Max. 200pcs/min
Wire Speed 110m/min 100m/min 90m/min 80m/min 70m/min









Decoiler



With/without motor Suitable material

High Speed Steel Wire Straightening Cutting Machine 5-7mm Wire 3

Decoiler without Motor suitable for 1.1-1.5mm wire

                      High Speed Steel Wire Straightening Cutting Machine 5-7mm Wire 4

Decoiler with Motor suitable for up to 2mm wire

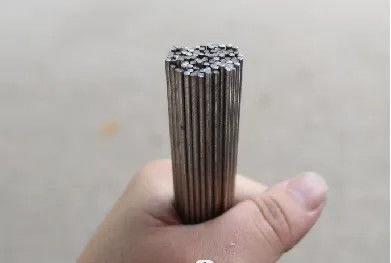

Samples Of High Speed Wire Straightening and Cutting Machine

High Speed Steel Wire Straightening Cutting Machine 5-7mm Wire 5High Speed Steel Wire Straightening Cutting Machine 5-7mm Wire 6

High Speed Steel Wire Straightening Cutting Machine 5-7mm Wire 7High Speed Steel Wire Straightening Cutting Machine 5-7mm Wire 8High Speed Steel Wire Straightening Cutting Machine 5-7mm Wire 9
