Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
HS-HC-1-7

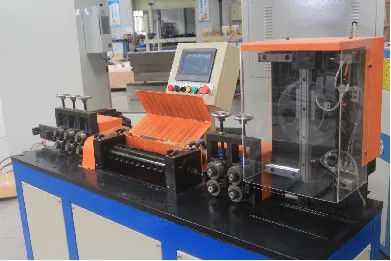

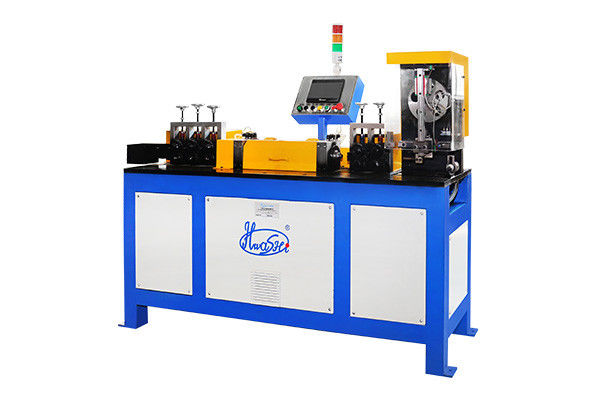

HWASHI High Speed Wire Straightening and Cutting Machine 3mm-5mm Wire
Detailed Description Of High Speed Wire Straightening and Cutting Machine:
1. HWASHI high speed wire straightening and cutting machine (3mm-5mm Wire) is suitable for wire, stainless steel wire, galvanized wire, aluminum, water (powder) draw lines and other metal wire straightening and cutting, and then butt welding, automatic unloading.
2. Sending wire wheel, such as the use of high-quality steel cutter and vacuum heat treatment, wear resistance, longer life. Straightening block can be cast iron, alloys, plastics Wang, all shaft parts are all 40CR or 45CR steel, and after straightening process, the gear is used in all forging billet, straight and tooth surface by high frequency hardening, hardness up HRC55-58 degrees.
3. Straight shaft with high pressure wheel straight before cutting the wire straightening, wire feeding pressing the pinch roller lever to adjust wire feed, the wire can even feed, direct modulation axis is the key product formed by direct modulation straightening blocks and tone straight shaft fixed to adjust the horizontal and vertical products to conform to requirements. Adjusting the pressing handle, the wire and the wire is more horizontal and vertical production rate increase or decrease. Finally, adjust white blades gun on the length of the product to meet the requirements.
4. Fast, stable performance, simple operation.
5. Touch screen.
Design Concept Of High Speed Wire Straightening and Cutting Machine
1.The man-machine integrated operation interface is adopted, and the operation is simple.
2.The tungsten steel mold is used as the crimping wheel, which has high durability and no scratches on the wire surface.
3.The servo wire feeding and flying shear structure are adopted, and the feeding cutting precision is high and the error is small.
4.High efficiency, 3-4 times higher than ordinary straightening machine efficiency.
5.It adopts PLC touch screen operation, with functions such as automatic counting, preset cutting number, and automatic shutdown after work is completed.
Parameter Of High Speed Wire Straightening and Cutting Machine:
| Model | HS-HC-1.1-1.5 | HS-HC-1.6-3 | HS-HC-2-4 | HS-HC-3-5 | HS-HC-5-7 |
| Input Power | AC380V(50Hz/60Hz) | ||||
| Suitable Wire Material | Normal low carbon steel wire/stainless steel wire/galvanized steel wire/copper coated steel wire | ||||
| Air Pressure | 0.5-0.6Mpa | ||||
| Wire Diameter | 1.1-1.5mm | 1.6-3mm | 2.0-4.0mm | 3.0-5.0mm | 5.0-7.0mm |
| Cutting Length | 50-5000mm | ||||
| Max. Cutting Speed | Max. 350pcs/min | Max. 250pcs/min | Max. 250pcs/min | Max. 230pcs/min | Max. 200pcs/min |
| Wire Speed | 110m/min | 100m/min | 90m/min | 80m/min | 70m/min |
Decoiler
300kg(without motor)
500kgwithout motor)
1Ton(with motor)
2Ton(with motor)
Decoiler without Motor (suitable for 1.1-1.5mm wire) Decoiler with Motor (suitable for up to 2mm wire)

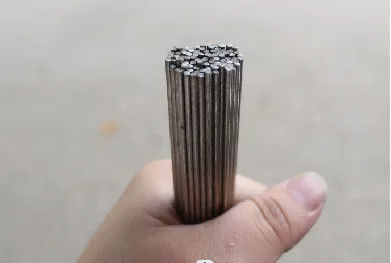

Samples Of High Speed Wire Straightening and Cutting Machine
