Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-YZ-8K

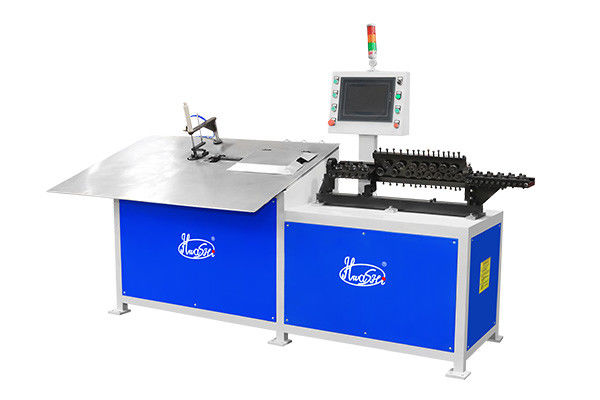

Description of Automatic 2D Wire Bending Machine Specializing In Manufacturing Of Flat Buckle Or Hang Hook
Automatic 2D bending Machine design three-axis structure which includes the wire straightening mechanism, cutting mechanism, line pressing mechanism and forming mechanism; The straightening mechanism adopts multiple sets of rollers to press up and down and left and right for straightening. The structure ensures light scratches on the surface of the metal wire, and ensures the straightening of the metal wire and the base formed by bending in half. By using servo Drive wire feeding wheel to move the wire forming position, it can move forward and backward according to the program; Forming mechanism through the folding Angle of the bend, with the work of the wire feeding mechanism, the wire bending into a plane shape; Automatic operation of the equipment after loading. The equipment structure is reasonable, stable and reliable, simple operation, high degree of automation, operators can manage multiple machines at the same time, greatly improve the production efficiency, hardware, network cable manufacturers and other necessary special equipment.
Design Concept Of Automatic 2D Wire Bending Machine Specializing In Manufacturong Of Flat Buckle Or Hang Hook
The design concept of Automatic 2D Wire Bending Machine Specializing In Manufacturing Of Flat Buckle Or Hang Hook is to use machines instead of labor, and can be produced without straightening mechanism or mold opening. As long as the product is on a plane, various shapes can be formed. Mainly used for iron wire, stainless steel wire, copper wire, aluminum wire forming (bending) various irregularly shaped flat products, such as square, round, hexagonal, oval, various buckles, various hooks and different circle diameters and different curved wires.
|
Intelligent Bending Control System |

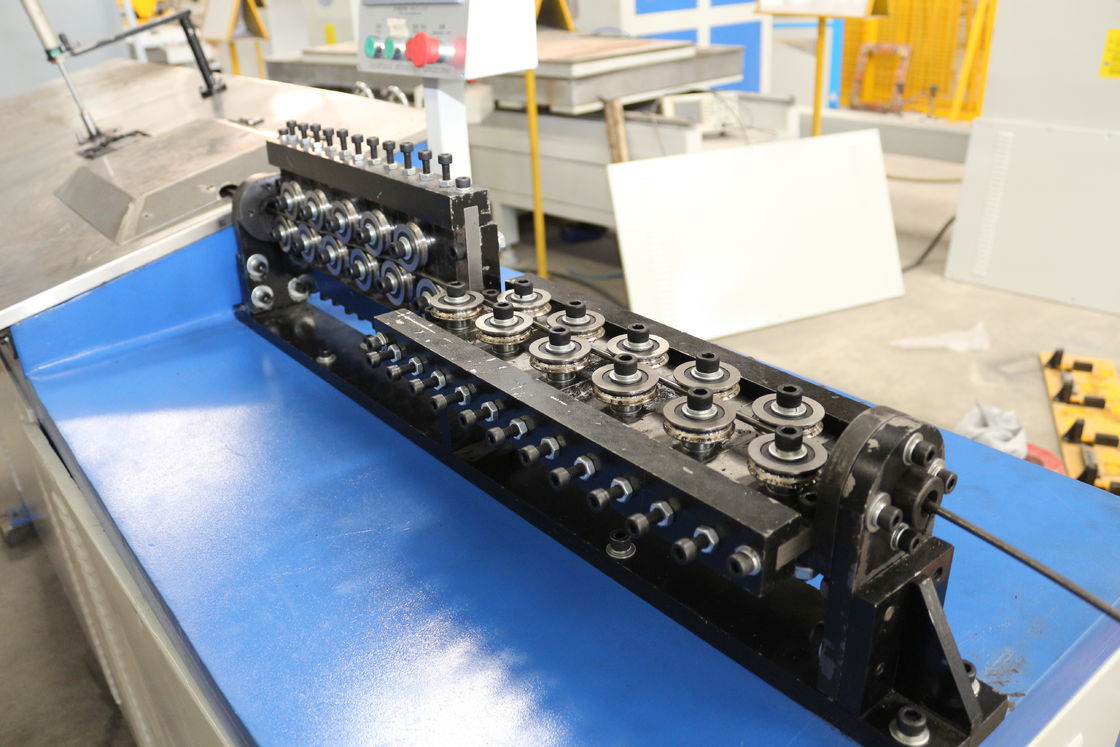

Straightening Roller |
|
Automatic Welding Structure |
Automatic Grinding Structure |
Parameters Of Automatic 2D Wire Bending Machine Specializing In Manufacturing Of Flay Buckle or Hang Hook
|
Technical Data of 2D Wire Bending Machine |
|||
|
Machine Model |
2-6 |
3-8 |
5-12 |
|
Wire diameter range |
Φ2.3-6mm iron wire |
Φ4-8mm iron wire |
Φ5-12mm iron wire |
|
Input Voltage |
380V 50Hz/60Hz |
||
|
Servo motor power |
Total 2.6KW |
Total 4.5KW |
Total 7.5KW |
|
Cylinder Cutting force |
Φ7.0 iron wire |
Φ9.0 iron wire |
Φ12.0 iron wire |
|
Oil pressure range |
0.3-0.6Mpa |
0.3-1Mpa |
0.3-1Mpa |
|
Hydraulic oil model |
46#/68# |
||
|
Wire Range |
Round, square, flat wire (suitable for any material wire) |
||
|
length of wire feeding wire |
According to the user setting |
||
|
Store data |
50 sets of data, a set of 300 actions |
||
|
Max. Wire Feed Speed |
50M/Min |
20M/Min |
11M/Min |
|
max. bending speed |
300 rpm /Min Angle±180º |
||
|
Bending accuracy |
±0.5mm |
||
|
Wire feeding accuracy |
±0.5mm |
±1.0mm |
|

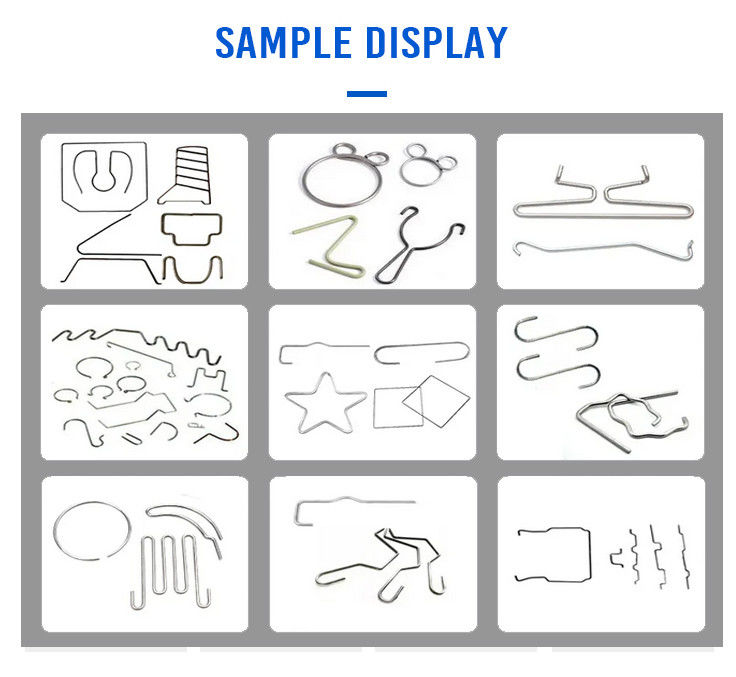

Application and Samples of Automatic 2D Wire Bending Machine Specializing In Manufacturing Of Flat Buckle Or Hang Hook
