Name: Gantry Type Multipoint Welding Machine with Automatic Welding, 8-10 Years Service Life, and CE/CCC/ISO Certified
Brand: Guangdong Hwashi Technology inc.
SKU: according to your product
Price: 225,000.00 USD
Availability: InStock

Home > Products > Door Panel Spot Welding Machine >

Gantry Type Multipoint Welding Machine with Automatic Welding, 8-10 Years Service Life, and CE/CCC/ISO Certified

Gantry type multipoint welding machine

Automatic door panel spot welder

CE certified welding machine with warranty

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

according to your product

Request A Quote

Product Details

Product Name:

HWASHI Best Price And High Quality Sheet Metal Gantry Type Multipoint Welding Machine

Application:

Welding Metal Sheet In Electronic Appliances,warning Board,automobile And Other Industries.

Size:

According To Your Product

Condition:

New

Warranty:

12months

Certificate:

CE/CCC/ISO

Service Life:

8-10 Years

Weight:

480kg

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

PLC Control 380V 2-Phase Multi Head Spot Welding Machine for Door Panels with 3+3mm Welding Thickness

Get Best Price

Video

PLC Control 380V 2-Phase Multi Head Spot Welding Machine for Door Panels with 3+3mm Welding Thickness

Get Best Price

Video

Hwashi PLC Control 380V 2-Phase Door Panel Multi Head Spot Welding Machine with 3+3mm Welding Thickness

Get Best Price

Video

PLC Control Door Panel Spot Welding Machine with 3+3mm Welding Thickness and 380V 2-Phase Power

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

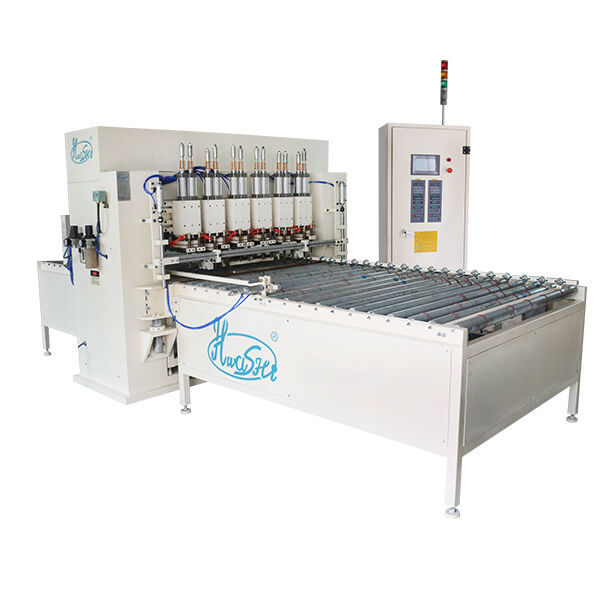

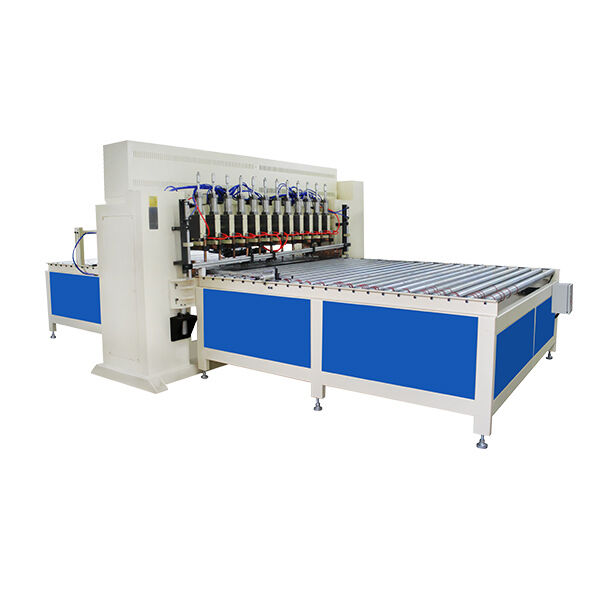

Panel Sheet Metal Spot Welder Gantry Type Multipoint Welding Machine

Product Overview

HWASHI Best Price and High Quality Sheet Metal Gantry Type Multipoint Welding Machine

This gantry-type welding machine features manual loading of sign plates onto the roller feeder, with automatic movement to the welding station. Equipped with two welding heads, the system handles profile placement via conveyor belt (manual or connected to punching line) and utilizes mechanical arms for positioning and post-welding unloading and stacking operations.

Key Features

High-quality welding spots with excellent appearance, firm bonding, and reliable consistency
Fully automated welding process
Wide application range with flexible machine, electrical, and mechanical configurations
Adaptable for welding similar products through microcontroller data program modifications
Multi-purpose functionality - one machine serves multiple applications
Designed working life: 8-10 years

Technical Specifications

Item	Specification
Cable Requirement	Three-phase 380V/50mm²/160A
Rated Capacity	100KVA × 2
Duty Cycle Rate	50%
Frequency	1000Hz
Control Heat Adjusting Range	15% - 99%
Maximum Output Voltage	DC 7.8V
Secondary Maximum Short Circuit Current	20KA
Program Section Time Adjusting Range	0 - 999ms
Welding Schedule	32 types

Applications & Examples

This machine is ideally suited for welding metal sheets in various industries including electronic appliances, warning boards, automotive components, and related manufacturing sectors.
